Pennsylvania 907 Sabre 7
The Pennsylvania 907 Sabre 7 is a tractor produced by Pennsylvania Lawn Tractors. It is equipped with a 275 cc 16.79 ci engine. The listed engine power is Gasoline (gross): 7 hp / 5.2 kW. Transmission: Tecumseh 613. Operating weight: 265 lbs 120 kg.
Engine Power
Gasoline (gross): 7 hp / 5.2 kW
Fuel & Capacities
0.5 gal
1.9 L
Transmission
Tecumseh 613
Operating Weight
265 lbs
120 kg
Overview
 | 1968 - 1969
Riding lawn mower |
|---|
Production | |
|---|---|
Manufacturer | Pennsylvania |
Riding lawn mower | |
Built in Waynesboro, Virginia, USA | |
Original price was $470 in 1968 | |
Variants | |
|---|---|
907 | 30-inch |
907R | 32-inch |
Pennsylvania 907 Engine | |
|---|---|
7HP Briggs & Stratton 275cc 1-cyl gasoline | |
Fuel tank | 0.5 gal
1.9 L |
Engine details ...  | |
Pennsylvania 907 Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Mechanical band brakes | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | manual |
Dimensions & Tires | |
|---|---|
Wheelbase | 44 inches
111 cm |
Weight | 265 lbs
120 kg |
Front tire | 4.10/3.50-4 |
Rear tire | 16x6.50-8 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Operating and Maintaining the Sabre Models 905 and 907 published in 1968 | |
Parts List Riding Mower 905 and 907 published in 1968 | |
Operating and Maintaining the Sabre Models 906 and 907R published in 1968 | |
Parts List Riding Mower 906 and 907R published in 1968 | |
Lawn Mowers & Garden Tractors published in 1968, by Pennsylvania Lawn Products | |
Quality Mowers & Tractors published in 1969, by Pennsylvania Lawn Products |
Engine
Engine Detail — 275 cc / 16.79 ci Gasoline
Manufacturer | Briggs & Stratton 170702 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 275 cc
16.79 ci |
Bore/Stroke | 3.00x2.375 inches
76 x 60 mm |
Power (gross) | 7 hp
5.2 kW |
Starter type | manual recoil |
Transmission
Transmission — Tecumseh 613
Transmission | Tecumseh 613 |
Type | belt-driven gear |
Gears | 3 forward and 1 reverse |
Oil capacity | 0.75 qts
0.7 L |
Oil type | 90W |
 | |
90W |
|---|
Dimensions
Pennsylvania 907 Tires | |
|---|---|
Lawn/turf front | 4.10/3.50-4 |
Lawn/turf rear | 16x6.50-8 |
Dimensions | |
|---|---|
Wheelbase | 44 inches
111 cm |
Length | 57 inches
144 cm |
Width | 31.5 inches
80 cm |
Weight | 265 lbs
120 kg |
Attachments
Attachment overview | |
|---|---|
30" mid-mount mower deck | |
32" mid-mount mower deck | |
Blade |
Photos

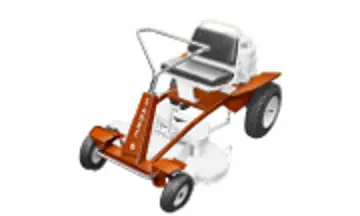

Pennsylvania 907 Sabre 7 tractor photo
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Pennsylvania Lawn Tractors Pennsylvania 907 Sabre 7.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Pennsylvania Lawn Tractors Pennsylvania 907 Sabre 7 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Pennsylvania Lawn Tractors Pennsylvania 907 Sabre 7.
Converted Equivalents:
Horsepower (HP)7 hp
Kilowatts (kW)5.2 kW
Metric Horsepower (PS / CV)7.1 PS
