Poloron 323-10

The Poloron 323-10 is a tractor produced by Poloron Lawn Tractors. It is equipped with a 318 cc 19.44 ci engine. The rated power output is 8 hp 6.0 kW. Transmission: Poloron. Drive type: belt. Operating weight: 310 lbs 140 kg.

Overview

	1973 Lawn tractor
1973
Lawn tractor

Production
Manufacturer	Poloron
Lawn tractor
Built in Michigan City, Indiana, USA

Poloron 323-10 Engine
8HP Briggs & Stratton 318cc 1-cyl gasoline
Fuel tank	1 gal 3.8 L
Engine details ...

Poloron 323-10 Transmission
5-speed friction disc
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station

Power Take-off (PTO)
Mid PTO	independent
Clutch	manual
Mid PTO Type	pulley

Dimensions & Tires
Weight	310 lbs 140 kg
Front tire	11x4.00
Rear tire	15x6.00
Full dimensions and tires ...

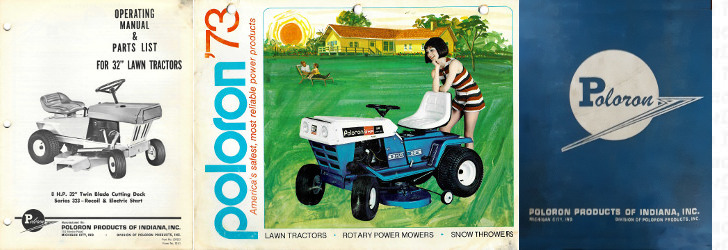

References
Operating Manual for 32" Lawn Tractors Series 323 (107523) published in 1972
Power Products published in 1973, by Poloron
Dealer Service Guide published in 1974

Engine

Engine Detail — 318 cc / 19.44 ci Gasoline

Manufacturer	Briggs & Stratton 190702
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	318 cc 19.44 ci
Bore/Stroke	3.00x2.75 inches 76 x 70 mm
Power (gross)	8 hp 6.0 kW
Fuel system	carburetor
Starter type	manual recoil

Transmission

Transmission — Poloron

Transmission	Poloron
Type	friction disc
Gears	5 forward and 1 reverse

Dimensions

Poloron 323-10 Tires
Lawn/turf front	11x4.00
Lawn/turf rear	15x6.00

Dimensions
Length	56 inches 142 cm
Height (hood)	26 inches 66 cm
Weight	310 lbs 140 kg

Attachments

Attachment overview
32" mid-mount mower deck
Snowblower
Blade

32" Mower deck
Type	mid-mount Poloron
	2-blade
Cutting width	32 inches 81 cm
Drive	belt

Photos

Poloron 323-10 tractor photo
