Poloron 383-12

The Poloron 383-12 is a tractor produced by Poloron Lawn Tractors. It is equipped with a 318 cc 19.44 ci engine. The rated power output is 8 hp 6.0 kW. Transmission: 3 forward and 1 reverse. Drive type: belt. Operating weight: 540 lbs 244 kg.

Overview

	1973 Lawn tractor
1973
Lawn tractor

Production
Manufacturer	Poloron
Lawn tractor
Built in Michigan City, Indiana, USA

Poloron 383-12 Engine
8HP Briggs & Stratton 318cc 1-cyl gasoline
Fuel tank	1 gal 3.8 L
Engine details ...

Poloron 383-12 Transmission
3-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station

Power Take-off (PTO)
Mid PTO	independent
Clutch	manual
Mid PTO Type	pulley

Dimensions & Tires
Weight	540 lbs 244 kg
Front tire	15x6.00
Rear tire	18x9.50
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

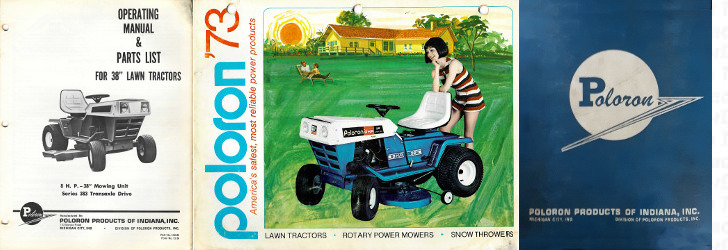

References
Operating Manual for 38" Lawn Tractors Series 383 Transaxle Drive (116545) published in 1972
Power Products published in 1973, by Poloron
Dealer Service Guide published in 1974

Engine

Engine Detail — 318 cc / 19.44 ci Gasoline

Manufacturer	Briggs & Stratton 190707
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	318 cc 19.44 ci
Bore/Stroke	3.00x2.75 inches 76 x 70 mm
Power (gross)	8 hp 6.0 kW
Fuel system	carburetor
Starter	electric
Starter volts	12

Transmission

Transmission — 3 forward and 1 reverse belt-driven gear

Type	belt-driven gear
Gears	3 forward and 1 reverse

Dimensions

Poloron 383-12 Tires
Lawn/turf front	15x6.00
Lawn/turf rear	18x9.50

Dimensions
Length	65 inches 165 cm
Height (hood)	31 inches 78 cm
Weight	540 lbs 244 kg

Attachments

Attachment overview
38" mid-mount mower deck
Snowblower
Blade

38" Mower deck
Type	mid-mount Poloron
	2-blade
Cutting width	38 inches 96 cm
Drive	belt
Overall width	45 inches 114 cm

Photos

Poloron 383-12 tractor photo
