Porsche Super
The Porsche Super is a tractor produced by Porsche. It is equipped with a 160.2 ci 2.6 L engine. The rated power output is 35 hp 26.1 kW. Transmission: 8 forward and 4 reverse. Operating weight: 4839 lbs 2194 kg.
Engine Power
35 hp
26.1 kW
Fuel & Capacities
Diesel
Transmission
8 forward and 4 reverse
Operating Weight
4839 lbs
2194 kg
Porsche Super Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1957 - 1963
Utility tractor |
|---|---|
1957 - 1963 | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | Porsche |
Utility tractor | |
Built in Germany | |
Porsche Super Power | |
|---|---|
Engine | 38 hp
28.3 kW |
Drawbar (tested) | 32.37 hp
24.1 kW |
PTO (tested) | 37.21 hp
27.7 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Drum brakes | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 78.7 inches
199 cm |
Weight | 4839 lbs
2194 kg |
Front tire | 6.00-19 |
Rear tire | 11-36 |
Full dimensions and tires ...  | |
Belt Pulley | |
|---|---|
Diameter | 8.66 inches
21 cm |
Width | 5.90 inches
14 cm |
RPM | 1460 |
Speed | 3307 ft/min
1007.97 meters/min |
Engine
Engine options | |
|---|---|
Porsche 2.5L 3-cyl diesel | |
Porsche 2.6L 3-cyl diesel |
Engine Detail — 150.6 ci / 2.5 L Diesel
Manufacturer | Porsche 308 |
Fuel Type | Diesel |
Configuration | 3-cylinder, air-cooled |
Displacement | 150.6 ci
2.5 L |
Bore/Stroke | 3.74x4.56 inches
95 x 116 mm |
Power | 38 hp
28.3 kW |
Air cleaner | oil bath |
Compression | 19:1 |
Rated RPM | 2000 |
Starter volts | 12 |
Engine Detail — 160.2 ci / 2.6 L Diesel
Manufacturer | Porsche 329 |
Fuel Type | Diesel |
Configuration | 3-cylinder, air-cooled |
Displacement | 160.2 ci
2.6 L |
Bore/Stroke | 3.86x4.56 inches
98 x 116 mm |
Power | 35 hp
26.1 kW |
Rated RPM | 2300 |
Transmission
Transmission options | |
|---|---|
5-speed gear | |
8-speed gear |
Transmission — 5 forward and 1 reverse gear
Type | gear |
Gears | 5 forward and 1 reverse |
Transmission — 8 forward and 4 reverse gear
Type | gear |
Gears | 8 forward and 4 reverse |
Clutch | dry disc |
 | |
Dimensions
Porsche Super Tires | |
|---|---|
Ag front | 6.00-19 |
Ag rear | 11-36 |
Ag front | 6.50-20 |
Ag rear | 14-28 |
Dimensions | |
|---|---|
Wheelbase | 78.7 inches
199 cm |
Length | 127.2 inches
323 cm |
Width | 71.9 inches
182 cm |
Height (steering wheel) | 65.4 inches
166 cm |
Operating weight | 4839 lbs
2194 kg |
Ballasted weight | 8225 lbs
3730 kg |
Ground clearance | 15.8 inches
40 cm |
Tests
Nebraska Tractor Test 728 | |
|---|---|
Diesel 8-speed 2WD
November 14 - 21, 1959
Link: Nebraska Tractor Test 728 file | |
PTO performance | |
Power at rated engine speed | 37.21 hp
27.7 kW |
Fuel use | 2.9 gal/hour
11.0 l/hour |
Power at rated PTO speed | 33.93 hp
25.3 kW |
Fuel use | 2.4 gal/hour
9.1 l/hour |
Drawbar performance | |
Max power | 32.37 hp
24.1 kW |
Fuel use | 2.9 gal/hour
11.0 l/hour |
Gear 6 used for power test. | |
Max pull | 6411 lbs
2908 kg |
Gear 3 used for pull test. | |
Photos

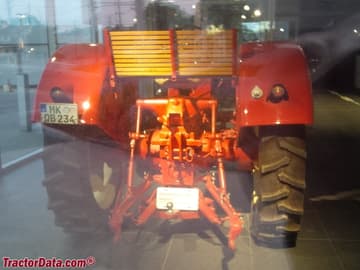

Porsche Super
