Power King 1612

The Power King 1612 is a tractor produced by Power King Lawn Tractors. It is equipped with a 476 cc 29.07 ci engine. The listed engine power is Gasoline (listed): 12 hp / 8.9 kW. Transmission: 3 forward and 1 reverse. Operating weight: 778 lbs 352 kg.

Engine Power
Gasoline (listed): 12 hp / 8.9 kW
Fuel & Capacities
3 gal 11.4 L
Transmission
3 forward and 1 reverse
Operating Weight
778 lbs 352 kg

Overview

Power King 1612 tractor photo
1977 - 1983 1600 SeriesGarden tractor 1600 Series Garden tractor
Production
Manufacturer
Power King (a part of Engineering Products Company)
Garden tractor
Built in Waukesha, Wisconsin, USA
Power King 1612 Engine
12HP Kohler 476cc 1-cyl gasoline
Fuel tank
3 gal 11.4 L
Engine details ...
Power King 1612 Transmission
3-speed gear
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Mechanical drum brakes
Open operator station. Vinyl weather cab optional.
Power Take-off (PTO)
Front PTO
independent
Clutch
electro-magnetic
Dimensions & Tires
Wheelbase
52 inches 132 cm
Weight
778 lbs 352 kg
Front tire
6.50-8
Rear tire
8.00-16
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
flywheel alternator
Charging amps
15
Battery volts
12
References
1612 references literature
Economy Power King Tractor published in 1977, by EPCO
Power King - One Tough Tractor published in 1980, by EPCO

Engine

Engine Detail — 476 cc / 29.07 ci Gasoline

Manufacturer
Kohler K301
Fuel Type
Gasoline
Configuration
1-cylinder, air-cooled horizontal-shaft
Displacement
476 cc 29.07 ci
Bore/Stroke
3.375x3.50 inches 86 x 89 mm
Power
12 hp 8.9 kW
Rated RPM
3600
Torque
22.2 lb-ft 30.1 Nm
Torque RPM
2200
Starter
electric
Starter volts
12
Oil capacity
2 qts 1.9 L

Transmission

Transmission — 3 forward and 1 reverse shaft-driven gear

Type
shaft-driven gear
Gears
3 forward and 1 reverse
1612 shaft-driven gear speeds

Dimensions

Power King 1612 Tires
Ag front
4.00-8
Ag rear
7.50-16
Lawn/turf front
6.50-8
Lawn/turf rear
8.00-16
Dimensions
Wheelbase
52 inches 132 cm
Length
79 inches 200 cm
Width
42.125 inches 106 cm
Height (steering wheel)
59.75 inches 151 cm
Height (hood)
40.5 inches 102 cm
Weight
778 lbs 352 kg
Ground clearance
14.5 inches 36 cm
Front tread
35.5 inches 90 cm
Rear tread
34 inches 86 cm

Attachments

Attachment overview
48" mid-mount mower deck
60" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

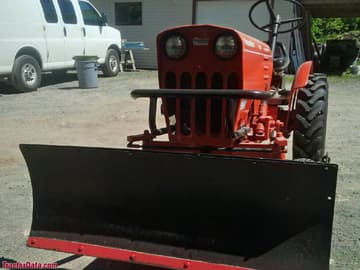

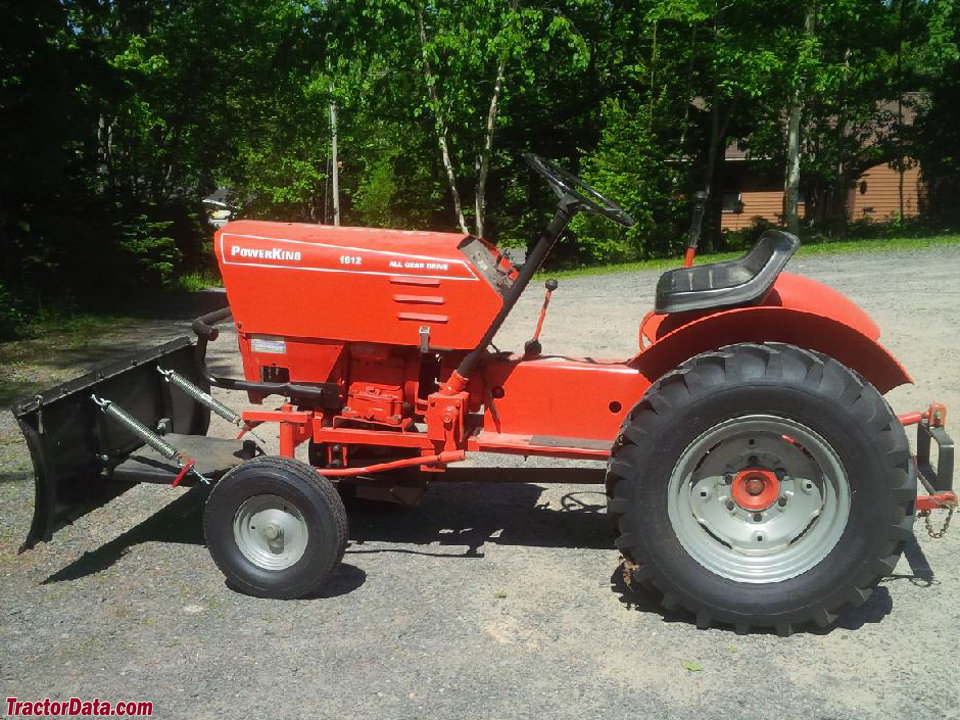

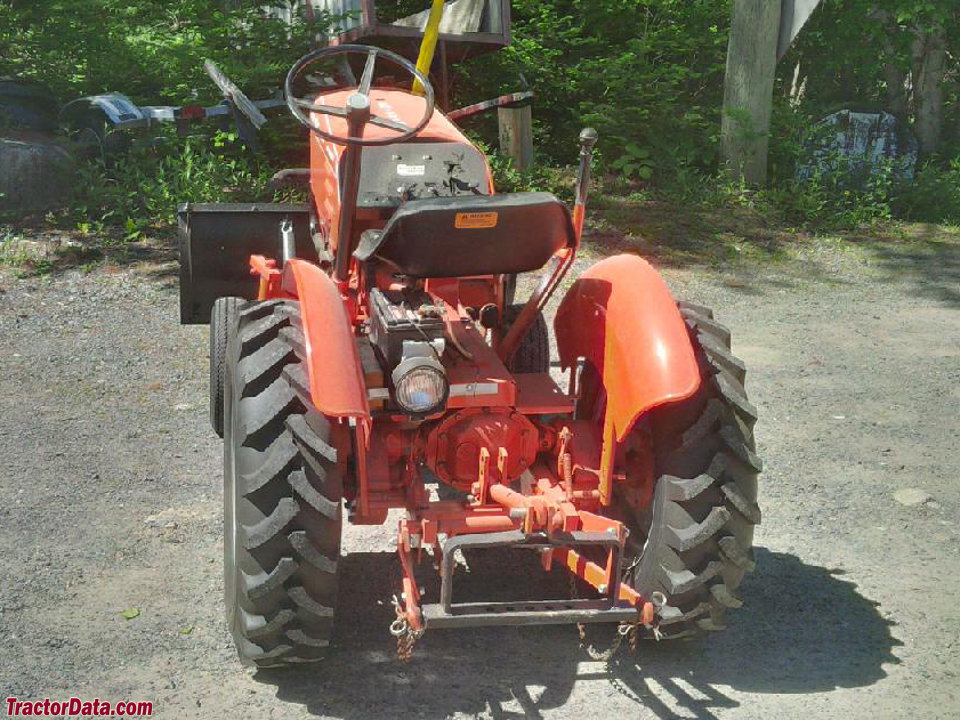

Photos

Power King 1612

Power King 1612

Power King 1612

Power King 1612

Power King 1612

Power King 1612

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Power King Lawn Tractors Power King 1612.

Estimated Continuous Field Runtime: 4.8 hrs

Approximately 4.8 hours of continuous field operation at ~75% rated power on a full tank (3 gal / 11.4 L).

Estimated 75% Load Fuel Burn~0.6 gal/hr (2.4 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Power King Lawn Tractors Power King 1612 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Power King Lawn Tractors Power King 1612.

Converted Equivalents:

Horsepower (HP)12 hp
Kilowatts (kW)8.9 kW
Metric Horsepower (PS / CV)12.2 PS
