Power King 2414

The Power King 2414 is a tractor produced by Power King Lawn Tractors. It is equipped with a 512 cc 31.27 ci engine. The rated power output is 14 hp 10.4 kW. Transmission: Borg-Warner T92. Operating weight: 1058 lbs (3-speed) 479 kg.

Overview

	1977 - 1988 Model year 1977-19831984-1988 2400 SeriesGarden tractor
1977 - 1988
Model year 1977-19831984-1988
2400 Series
Garden tractor

Production
Manufacturer	Power King (a part of Engineering Products Company)
Garden tractor
Built in Waukesha, Wisconsin, USA

Power King 2414 Engine
14HP Kohler 512cc 1-cyl gasoline
Engine details ...

Mechanical
Two-wheel drive
Final drives	bull gear
Manual steering
Mechanical drum brakes
Open operator station. Vinyl weather cab optional.

Capacity
Fuel	3 gal 11.4 L
Hydraulic system	1.25 gal 4.7 L

Hydraulics
Type	open center
Capacity	1.25 gal 4.7 L
Pressure	1000 psi 69.0 bar
Pump flow	1.7 gpm 6.4 lpm

Tractor hitch
Rear Type	0 (optional)

Power Take-off (PTO)
Rear PTO	independent OptOptional
Clutch	electro-magnetic
Rear PTO Type	2000
Front PTO	independent
Clutch	electro-magnetic

Dimensions & Tires
Wheelbase	54.375 inches 138 cm
Weight	1058 to 1075 pounds
Front tire	4.00-12
Rear tire	8.30-24
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	flywheel alternator
Charging amps	15
Battery volts	12

References
Power King - One Tough Tractor published in 1980, by EPCO

Engine

Engine Detail — 512 cc / 31.27 ci Gasoline

Manufacturer	Kohler K321
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled horizontal-shaft
Displacement	512 cc 31.27 ci
Bore/Stroke	3.50x3.25 inches 89 x 83 mm
Power	14 hp 10.4 kW
Rated RPM	3600
Torque	23.8 lb-ft 32.3 Nm
Torque RPM	2200
Starter	electric
Starter volts	12
Oil capacity	2 qts 1.9 L

Transmission

Transmission options
3-speed gear
4-speed gear
9-speed gear

Transmission — Borg-Warner T92

Transmission	Borg-Warner T92
Type	shaft-driven gear
Gears	3 forward and 1 reverse
Clutch	152.4mm dry disc
Oil capacity	0.25 qts 0.2 L
Oil type	80/90 Gear Lube

	80/90 Gear Lube

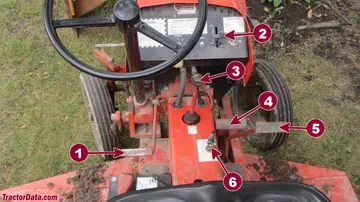

2414 Transmission Controls
1	Clutch
2	Throttle
3	Gear shift
4	Left brake
5	Right brake
6	Parking brake

Transmission — 4 forward and 1 reverse shaft-driven gear

Type	shaft-driven gear
Gears	4 forward and 1 reverse
Clutch	152.4mm dry disc
Oil capacity	0.1875 qts 0.2 L

Transmission — Borg-Warner T92

Transmission	Borg-Warner T92
Type	shaft-driven gear
Gears	9 forward and 3 reverse
Clutch	152.4mm dry disc
Optional creeper for 3-speed transmission.

Dimensions

Power King 2414 Tires
Ag front	4.00-12
Ag rear	8.30-24
Lawn/turf front	4.00-12
Lawn/turf rear	8.30-24

Dimensions
Wheelbase	54.375 inches 138 cm
Length	93 inches 236 cm
Width	41.5 inches 105 cm
Height (steering wheel)	55 inches 139 cm
Height (hood)	43.75 inches 111 cm
Weight	1058 lbs (3-speed) 479 kg
	1075 lbs (4-speed) 487 kg
Ground clearance	19 inches (frame) 48 cm
Front axle	0.75 inch diameter 19 mm
Rear axle	1.5 inch diameter 38 mm
Front tread	33.5 to inches 85 to 0 cm
Rear tread	35.5 to 47.875 inches 90 to 121 cm

Attachments

Attachment overview
48" mid-mount mower deck
60" mid-mount mower deck
Snowblower
Blade
Front-end loader
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

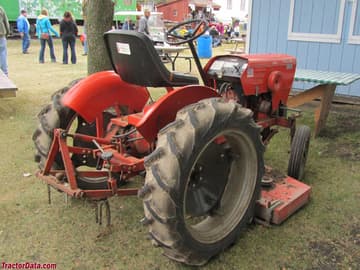

Power King 2414

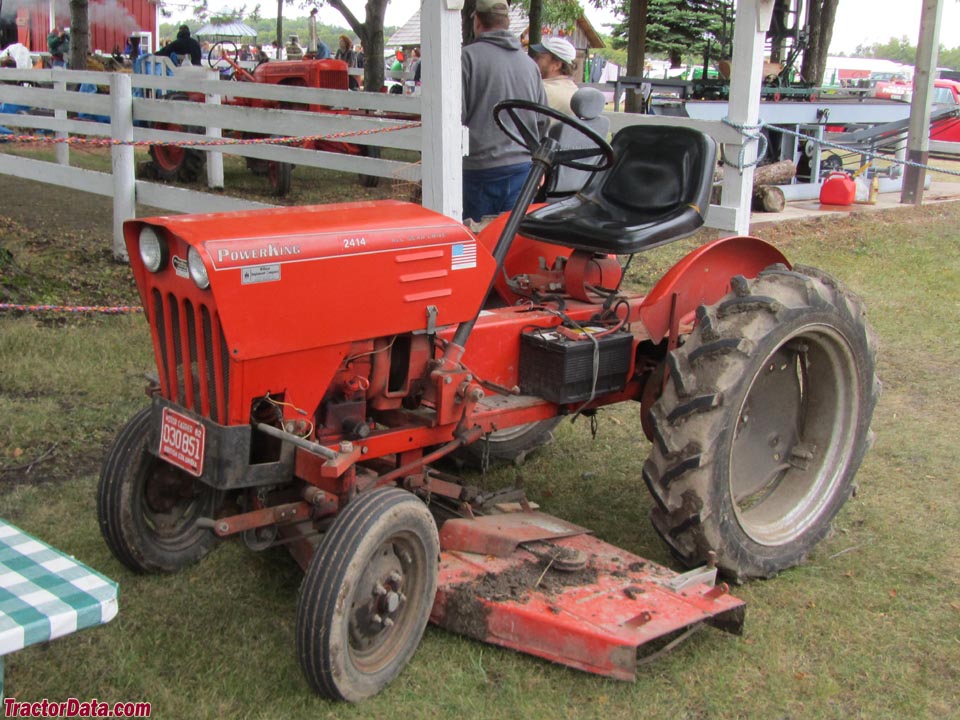

Power King 2414

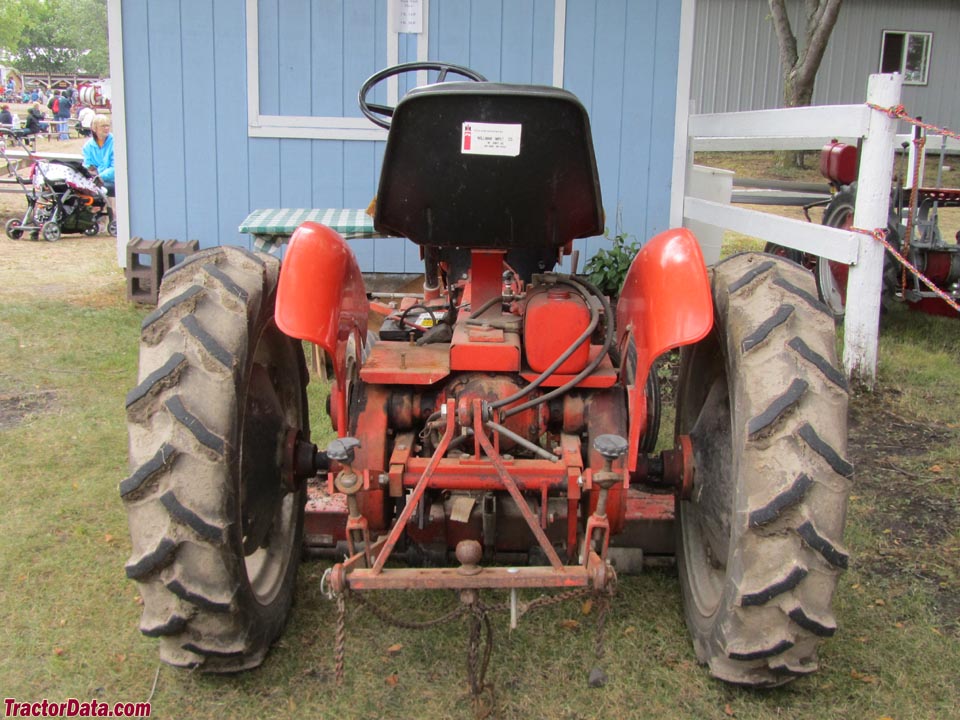

Power King 2414

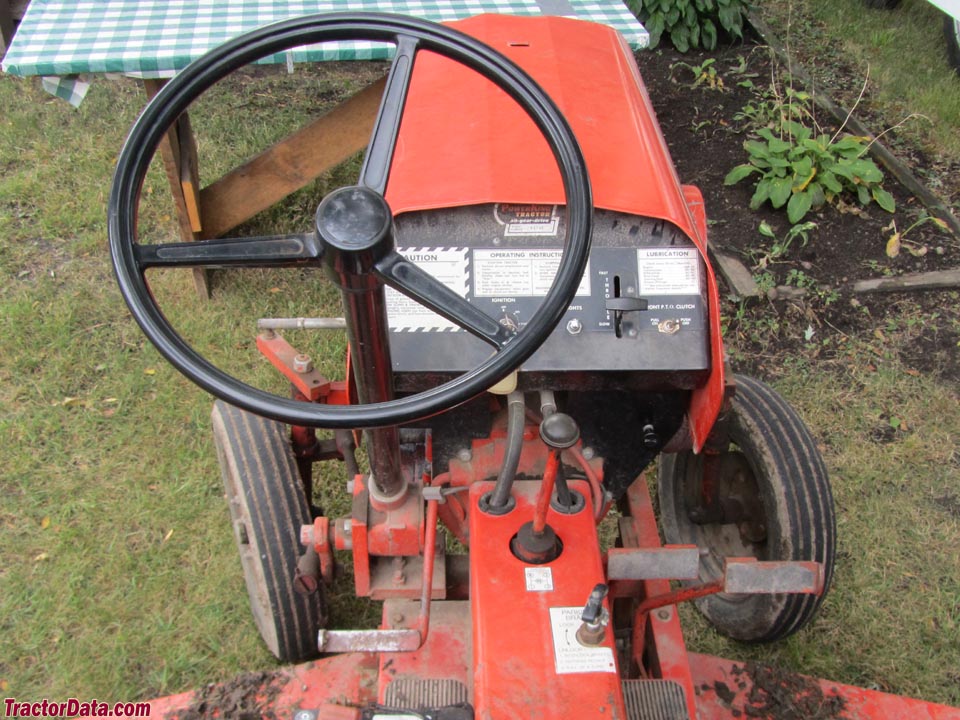

Power King 2414 operator station and controls.
