raven lawn tractors mpv 710
 | 2013
Garden tractor | 2013 | Garden tractor |
|---|---|---|---|
2013 | |||
Garden tractor | |||
2013 | |
|---|---|
Garden tractor |
Engine Detail | |
|---|---|
RATO | |
gasoline | |
1-cylinder | |
air-cooled | |
Displacement | 420 cc
25.63 ci |
Power | 12 hp
8.9 kW |
Fuel system | carburetor |
Starter | electric |
Starter volts | 12 |
Sparkplug | Torch F7TC |

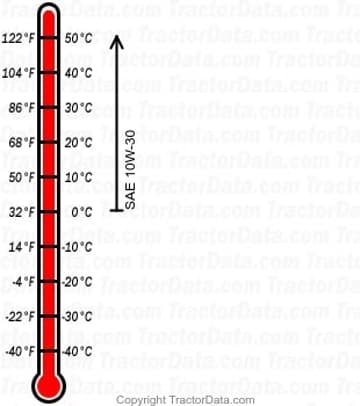

Engine Oil | |
|---|---|
 | |
Oil capacity | 1.16 qts
1.1 L |
Oil change | 25 h |
