Renault 103-14 TX

The Renault 103-14 TX is a tractor produced by Renault. It is equipped with a 253.6 ci 4.2 L engine. The listed engine power is Diesel (listed): 91.2 hp / 68.0 kW. Transmission: 16 forward and reverse. Operating weight: 10849 lbs 4921 kg.

Overview

	1981 - 1986 TX SeriesRow-Crop tractor TX Series Row-Crop tractor

Production
Manufacturer	Renault
Row-Crop tractor

Variants
103-12	2WD

Renault 103-14 TX Engine
MWM 4.2L 4-cyl diesel
Fuel tank	33 gal 124.9 L
Engine details ...

Renault 103-14 TX Power
Engine	91.2 hp 68.0 kW
PTO (claimed)	87.3 hp 65.1 kW

Mechanical
Four-wheel drive
Power steering
Hydraulic dry disc brakes
Cab standard with heat.

Hydraulics
Pressure	2611 psi 180.0 bar
Total flow	11 gpm 41.6 lpm

Tractor hitch
Rear Type	II
Control	position and draft control
Rear lift	9375 lbs 4252 kg
	10746 lbsOptOptional 4874 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	organic
Rear PTO Type	540/1000 (1.375)
Engine RPM	644@2350
	1105@2350

Dimensions & Tires
Wheelbase	97.6 inches 247 cm
Weight	10849 lbs 4921 kg
Front tire	14.9-28
Rear tire	16.9-38
Full dimensions and tires ...

Electrical
Charging amps	50
Battery volts	12
Battery AH	90

References
Renault Serie TX

Engine

Engine Detail — 253.6 ci / 4.2 L Diesel

Manufacturer	MWM TD226-4
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	253.6 ci 4.2 L
Bore/Stroke	4.134x4.724 inches 105 x 120 mm
Power	91.2 hp 68.0 kW
Air cleaner	oil bath
Rated RPM	2350
Torque	228.7 lb-ft 310.1 Nm
Torque RPM	1500
Starter volts	12

Transmission

Transmission options
12-speed synchronized
16-speed creeper

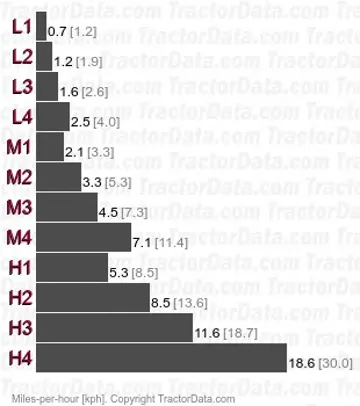

Transmission — 12 forward and reverse synchronized

Type	synchronized
Gears	12 forward and reverse
Clutch	310mm cerametallic disc
With 16.9-38 rear tires.

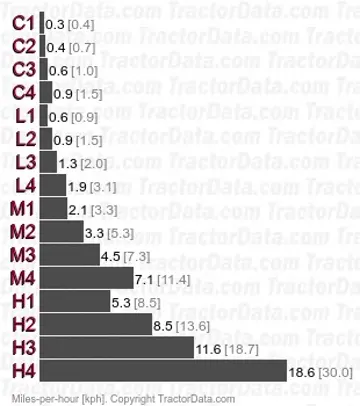

Transmission — 16 forward and reverse creeper

Type	creeper
Gears	16 forward and reverse
Clutch	310mm cerametallic disc
With 16.9-38 rear tires.

Dimensions

Renault 103-14 TX Tires
Standard tires (ag)	Front: 14.9-28. Rear: 16.9-38
Optional tires (ag)	Front: 12.4-28. Rear: 13.6-38

Dimensions
Wheelbase	97.6 inches 247 cm
Length	169.3 inches 430 cm
Width	79.9 inches 202 cm
Height	111 inches 281 cm
Weight	10849 lbs 4921 kg
Max weight	14661 lbs 6650 kg
Clearance (front axle)	19.3 inches 49 cm
Clearance (rear axle)	20.9 inches 53 cm
Front tread	63 to 78.7 inches 160 to 199 cm
Rear tread	55.1 to 78.7 inches 139 to 199 cm

Photos

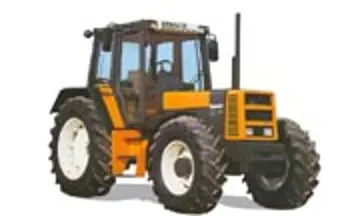

Renault 103-14 TX tractor photo
