Renault 75-12 TS

The Renault 75-12 TS is a tractor produced by Renault. It is equipped with a 253.6 ci 4.2 L engine. The listed engine power is Diesel (listed): 75 hp / 55.9 kW. Transmission: 12 forward and reverse.

Overview

	1982 - 1984

Production
Manufacturer	Renault

Variants
75-14	4WD

Renault 75-12 TS Engine
MWM 4.2L 4-cyl diesel
Fuel tank	29.1 gal 110.1 L
Engine details ...

Renault 75-12 TS Transmission
12-speed
Transmission details ...

Renault 75-12 TS Power
Engine	75 hp 55.9 kW

Mechanical
Two-wheel drive
Steering	hydrostatic power
Dry disc brakes
standard

Hydraulics
Total flow	11.0 gpm 41.6 lpm

Tractor hitch
Rear lift	8,269 lbs 3750 kg

Power Take-off (PTO)
Rear PTO Type	540/1000

Dimensions & Tires
Wheelbase	94.1 inches 239 cm
Front tire	7.50-18
Rear tire	16.9-34
Full dimensions and tires ...

Engine

Engine Detail — 253.6 ci / 4.2 L Diesel

Manufacturer	MWM D226-4
Fuel Type	Diesel
Configuration	4-cylinder
Displacement	253.6 ci 4.2 L
Bore/Stroke	4.134x4.724 inches 105 x 120 mm
Power	75 hp 55.9 kW
Rated RPM	2350
Torque	191.8 lb-ft 260.1 Nm
Torque RPM	1500

Transmission

Transmission — 12 forward and reverse

Gears

12 forward and reverse

Dimensions

Renault 75-12 TS Tires
Ag front	7.50-18
Ag rear	16.9-34

Dimensions
Wheelbase	94.1 inches 239 cm
Length	159.4 inches 404 cm
Height	109.1 inches 277 cm

Photos

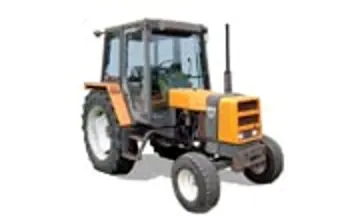

Renault 75-12 TS tractor photo
