Renault 133-14 TX
The Renault 133-14 TX is a tractor produced by Renault. It is equipped with a 380.4 ci 6.2 L engine. The listed engine power is Diesel (listed): 120.7 hp / 90.0 kW. Transmission: 16 forward and reverse. Operating weight: 11718 lbs 5315 kg.
Engine Power
Diesel (listed): 120.7 hp / 90.0 kW
Fuel & Capacities
52.8 gal
199.8 L
Transmission
16 forward and reverse
Operating Weight
11718 lbs
5315 kg
Overview
 | 1981 - 1986
TX SeriesRow-Crop tractor
TX Series
Row-Crop tractor |
|---|
Production | |
|---|---|
Manufacturer | Renault |
Row-Crop tractor | |
Renault 133-14 TX Engine | |
|---|---|
MWM 6.2L 6-cyl diesel | |
Fuel tank | 52.8 gal
199.8 L |
Engine details ...  | |
Renault 133-14 TX Power | |
|---|---|
Engine | 120.7 hp
90.0 kW |
PTO (claimed) | 115.3 hp
86.0 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Hydraulic dry disc brakes | |
Cab standard with heat. |
Hydraulics | |
|---|---|
Pressure | 2611 psi
180.0 bar |
Total flow | 11 gpm
41.6 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position and draft control |
Rear lift | 10296 lbs
4670 kg |
11668 lbsOptOptional
5292 kg | |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | organic |
Rear PTO Type | 540/1000 (1.375) |
Engine RPM | 644@2350 |
1105@2350 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 107.9 inches
274 cm |
Weight | 11718 lbs
5315 kg |
Front tire | 16.9-28 |
Rear tire | 18.4-38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging amps | 50 |
Batteries | 2 |
Battery volts | 12 |
Battery AH | 150 |
References | |
|---|---|
 | |
Renault Serie TX |
Engine
Engine Detail — 380.4 ci / 6.2 L Diesel
Manufacturer | MWM D226-6 |
Fuel Type | Diesel |
Configuration | 6-cylinder, liquid-cooled |
Displacement | 380.4 ci
6.2 L |
Bore/Stroke | 4.134x4.724 inches
105 x 120 mm |
Power | 120.7 hp
90.0 kW |
Air cleaner | dry |
Rated RPM | 2350 |
Torque | 303.9 lb-ft
412.1 Nm |
Torque RPM | 1500 |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
12-speed synchronized | |
16-speed creeper |
Transmission — 12 forward and reverse synchronized
Type | synchronized |
Gears | 12 forward and reverse |
Clutch | 330mm cerametallic disc |
With 18.4-38 rear tires. | |
 | |

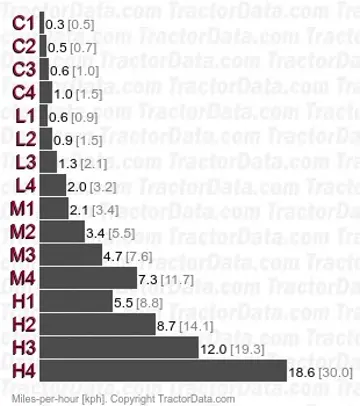

Transmission — 16 forward and reverse creeper
Type | creeper |
Gears | 16 forward and reverse |
Clutch | 330mm cerametallic disc |
With 18.4-38 rear tires. | |
 | |
Dimensions
Renault 133-14 TX Tires | |
|---|---|
Standard tires (ag) | Front: 16.9-28. Rear: 18.4-38 |
Dimensions | |
|---|---|
Wheelbase | 107.9 inches
274 cm |
Length | 200 inches
508 cm |
Width | 80.9 inches
205 cm |
Height | 115 inches
292 cm |
Weight | 11718 lbs
5315 kg |
Max weight | 18739 lbs
8500 kg |
Clearance (front axle) | 20.9 inches
53 cm |
Clearance (rear axle) | 22.1 inches
56 cm |
Front tread | 63 to 78.7 inches
160 to 199 cm |
Rear tread | 59.1 to 78.7 inches
150 to 199 cm |
Photos
Renault 133-14 TX tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for Renault 133-14 TX based on its 120.7 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm) | Heavy Duty | Heavy primary tillage; semi-mounted hitch recommended. |
Rotary Cutter / MowerMowing & Clearing | 10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼 | Heavy Duty | Wide swath pasture and crop residue shredding. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙 | Commercial / Field Scale | Wide commercial field leveling; requires hydraulic remotes. |
Hay BalerHay & Forage | 5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机 | Heavy Duty | High density baling; requires minimum 85 PTO HP. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Renault 133-14 TX.
Estimated Continuous Field Runtime: 8.4 hrs
Approximately 8.4 hours of continuous field operation at ~75% rated power on a full tank (52.8 gal / 199.9 L).
Estimated 75% Load Fuel Burn~6.3 gal/hr (23.8 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Renault 133-14 TX Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Renault 133-14 TX.
Converted Equivalents:
Horsepower (HP)120.7 hp
Kilowatts (kW)90 kW
Metric Horsepower (PS / CV)122.4 PS
