Renault 133-54
The Renault 133-54 is a tractor produced by Renault. It is equipped with a 380.4 ci 6.2 L engine. The listed engine power is Diesel (listed): 123 hp / 91.7 kW. Transmission: 24 forward and 8 reverse. Operating weight: 12,314 lbs 5585 kg.
Engine Power
Diesel (listed): 123 hp / 91.7 kW
Fuel & Capacities
59.4 gal
224.8 L
Transmission
24 forward and 8 reverse
Operating Weight
12,314 lbs
5585 kg
Overview
 | 1989 - 2000
54 SeriesRow-Crop tractor
54 Series
Row-Crop tractor |
|---|
Production | |
|---|---|
Manufacturer | Renault |
Row-Crop tractor | |
Variants |
|---|
Renault 133-54 Engine | |
|---|---|
MWM 6.2L 6-cyl diesel | |
Fuel tank | 59.4 gal
224.8 L |
Engine details ...  | |
Renault 133-54 Power | |
|---|---|
Engine | 123 hp
91.7 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Wet disc brakes | |
Cab standard |
Hydraulics | |
|---|---|
Total flow | 19.6 gpm
74.2 lpm |
21.4 gpm
81.0 lpm | |
Tractor hitch | |
|---|---|
Rear lift | 19,139 lbs
8681 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 107.9 inches
274 cm |
Weight | 12,314 lbs
5585 kg |
Front tire | 16.9-28 |
Rear tire | 18.4-38 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 380.4 ci / 6.2 L Diesel
Manufacturer | MWM D226-6 |
Fuel Type | Diesel |
Configuration | 6-cylinder, liquid-cooled |
Displacement | 380.4 ci
6.2 L |
Bore/Stroke | 4.134x4.724 inches
105 x 120 mm |
Power | 123 hp
91.7 kW |
Rated RPM | 2350 |
Torque | 303.9 lb-ft
412.1 Nm |
Torque RPM | 1500 |
Transmission
Transmission options | |
|---|---|
16-speed | |
24-speed |
Transmission — 16 forward and reverse
Gears | 16 forward and reverse |
Transmission — 24 forward and 8 reverse
Gears | 24 forward and 8 reverse |
Dimensions
Renault 133-54 Tires | |
|---|---|
Ag front | 16.9-28 |
Ag rear | 18.4-38 |
Dimensions | |
|---|---|
Wheelbase | 107.9 inches
274 cm |
Length | 181.1 inches
459 cm |
Height | 118.9 inches
302 cm |
Weight | 12,314 lbs
5585 kg |
Photos

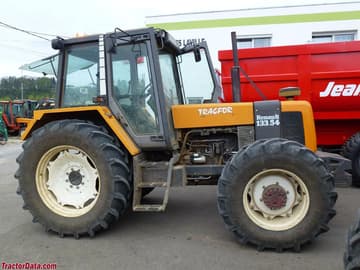

Renault 133-54
Recommended Implements & Sizing Guide
Engineering recommendations for Renault 133-54 based on its 123 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm) | Heavy Duty | Heavy primary tillage; semi-mounted hitch recommended. |
Rotary Cutter / MowerMowing & Clearing | 10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼 | Heavy Duty | Wide swath pasture and crop residue shredding. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙 | Commercial / Field Scale | Wide commercial field leveling; requires hydraulic remotes. |
Hay BalerHay & Forage | 5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机 | Heavy Duty | High density baling; requires minimum 85 PTO HP. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Renault 133-54.
Estimated Continuous Field Runtime: 9.3 hrs
Approximately 9.3 hours of continuous field operation at ~75% rated power on a full tank (59.4 gal / 224.9 L).
Estimated 75% Load Fuel Burn~6.4 gal/hr (24.2 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Renault 133-54 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Renault 133-54.
Converted Equivalents:
Horsepower (HP)123 hp
Kilowatts (kW)91.7 kW
Metric Horsepower (PS / CV)124.7 PS
Direct Competitor Comparison
Compare Renault 133-54 against same-era industry alternatives in the same horsepower class.
Current Model
Renault
Renault 133-54
Engine Power:Diesel (listed): 123 hp / 91.7 kW
★ Baseline Reference
