Renault 155-54

The Renault 155-54 is a tractor produced by Renault. It is equipped with a 380.4 ci 6.2 L engine. The rated power output is 145 hp 108.1 kW. Transmission: 24 forward and 8 reverse. Operating weight: 12403 lbs 5626 kg.

Overview

	1989 - 2000 54 SeriesRow-Crop tractor
1989 - 2000
54 Series
Row-Crop tractor

Production
Manufacturer	Renault
Row-Crop tractor

Variants

Renault 155-54 Engine
MWM 6.2L 6-cyl diesel
Fuel tank	59.4 gal 224.8 L
Engine details ...

Renault 155-54 Power
Engine	145 hp 108.1 kW

Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Cab standard with air conditioning.

Hydraulics
Total flow	19.6 gpm 74.2 lpm
	21.4 gpm 81.0 lpm

Tractor hitch
Rear lift	19,139 lbs 8681 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000 (1.375)

Dimensions & Tires
Wheelbase	107.9 inches 274 cm
Weight	12403 lbs 5626 kg
Front tire	16.9-28
Rear tire	20.8-38
Full dimensions and tires ...

Engine

Engine Detail — 380.4 ci / 6.2 L Diesel

Manufacturer	MWM TD226-B6
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	380.4 ci 6.2 L
Bore/Stroke	4.134x4.724 inches 105 x 120 mm
Power	145 hp 108.1 kW
Compression	16:1
Rated RPM	2350
Torque	400.5 lb-ft 543.1 Nm
Torque RPM	1500

Transmission

Transmission options
16-speed
24-speed

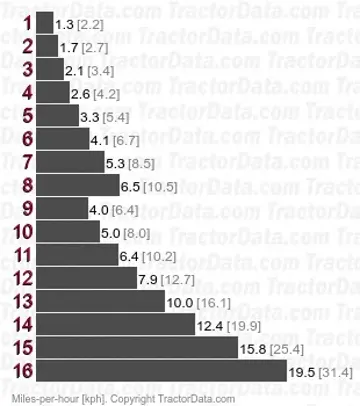

Transmission — 16 forward and reverse

Gears	16 forward and reverse
Clutch	dry disc

Transmission — 24 forward and 8 reverse

Gears	24 forward and 8 reverse
Clutch	wet disc

Dimensions

Renault 155-54 Tires
Ag front	16.9-28
Ag rear	20.8-38

Dimensions
Wheelbase	107.9 inches 274 cm
Length	181.2 inches 460 cm
Height (cab)	117.4 inches 298 cm
Height (exhaust)	125.2 inches 318 cm
Weight	12403 lbs 5626 kg
Front tread	63.78.7 to inches 162 to 0 cm
Rear tread	59.1 to 82.7 inches 150 to 210 cm

Photos

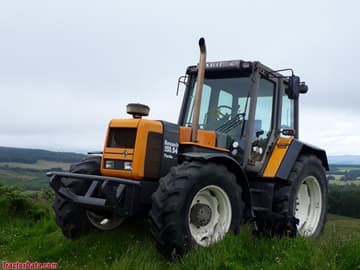

Renault 155-54
