Renault 921S

The Renault 921S is a tractor produced by Renault. It is equipped with a 345.1 ci 5.7 L engine. The listed engine power is Diesel (listed): 92 hp / 68.6 kW. Transmission: 12 forward and reverse. Operating weight: 10,849 lbs 4921 kg.

Overview

	1980 - 1982

Production
Manufacturer	Renault

Renault 921S Engine
MWM 5.7L 6-cyl diesel
Fuel tank	54.2 gal 205.1 L
Engine details ...

Renault 921S Transmission
12-speed
Transmission details ...

Renault 921S Power
Engine	92 hp 68.6 kW

Mechanical
Four-wheel drive
Steering	hydrostatic power
Dry disc brakes
standard

Hydraulics
Total flow	8.7 gpm 32.9 lpm

Tractor hitch
Rear lift	9,923 lbs 4501 kg

Power Take-off (PTO)
Rear PTO Type	540/1000

Dimensions & Tires
Wheelbase	105.5 inches 267 cm
Weight	10,849 lbs 4921 kg
Front tire	14.9-24
Rear tire	16.9-38
Full dimensions and tires ...

Engine

Engine Detail — 345.1 ci / 5.7 L Diesel

Manufacturer	MWM D227-6
Fuel Type	Diesel
Configuration	6-cylinder
Displacement	345.1 ci 5.7 L
Bore/Stroke	3.875x4.724 inches 98 x 120 mm
Power	92 hp 68.6 kW
Rated RPM	2350
Torque	248.6 lb-ft 337.1 Nm
Torque RPM	1100

Transmission

Transmission — 12 forward and reverse

Gears

12 forward and reverse

Dimensions

Renault 921S Tires
Ag front	14.9-24
Ag rear	16.9-38

Dimensions
Wheelbase	105.5 inches 267 cm
Length	174.8 inches 443 cm
Height	109.1 inches 277 cm
Weight	10,849 lbs 4921 kg

Photos

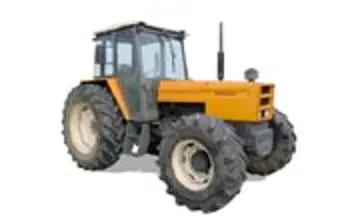

Renault 921S tractor photo
