Renault 95-14 TX
The Renault 95-14 TX is a tractor produced by Renault. It is equipped with a 253.6 ci 4.2 L engine. The rated power output is 83.1 hp 62.0 kW. Transmission: 16 forward and reverse. Operating weight: 10174 lbs 4614 kg.
Engine Power
83.1 hp
62.0 kW
Fuel & Capacities
33 gal
124.9 L
Transmission
16 forward and reverse
Operating Weight
10174 lbs
4614 kg
Renault 95-14 TX Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1982 - 1986
TX SeriesRow-Crop tractor |
|---|---|
1982 - 1986 | |
TX Series | |
Row-Crop tractor | |
Production | |
|---|---|
Manufacturer | Renault |
Row-Crop tractor | |
Variants | |
|---|---|
95-12 | 2WD |
Renault 95-14 TX Engine | |
|---|---|
MWM 4.2L 4-cyl diesel | |
Fuel tank | 33 gal
124.9 L |
Engine details ...  | |
Renault 95-14 TX Power | |
|---|---|
Engine | 83.1 hp
62.0 kW |
PTO (claimed) | 77.8 hp
58.0 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Hydraulic dry disc brakes | |
Cab standard with heat. |
Hydraulics | |
|---|---|
Pressure | 2611 psi
180.0 bar |
Total flow | 11.3 gpm
42.8 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position and draft control |
Rear lift | 9375 lbs
4252 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | organic |
Rear PTO Type | 540/1000 (1.375) |
Engine RPM | 666@2430 |
1142@2430 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 97.6 inches
247 cm |
Weight | 10174 lbs
4614 kg |
Front tire | 14.9-24 |
Rear tire | 16.9-34 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging amps | 50 |
Battery volts | 12 |
Battery AH | 90 |
References | |
|---|---|
 | |
Renault Serie TX |
Engine
Engine Detail — 253.6 ci / 4.2 L Diesel
Manufacturer | MWM D226-4 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 253.6 ci
4.2 L |
Bore/Stroke | 4.134x4.724 inches
105 x 120 mm |
Power | 83.1 hp
62.0 kW |
Air cleaner | oil bath |
Rated RPM | 2350 |
Torque | 206.5 lb-ft
280.0 Nm |
Torque RPM | 1500 |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
12-speed synchronized | |
16-speed creeper |
Transmission — 12 forward and reverse synchronized
Type | synchronized |
Gears | 12 forward and reverse |
Clutch | 310mm cerametallic disc |
Four gears in three ranges. | |
With 16.9-38 rear tires. | |
 | |

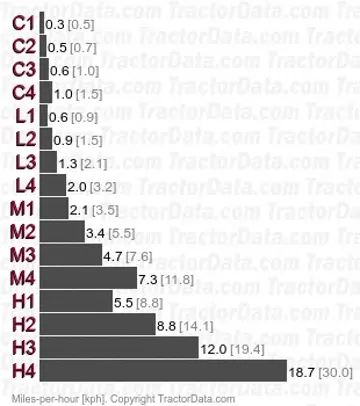

Transmission — 16 forward and reverse creeper
Type | creeper |
Gears | 16 forward and reverse |
Clutch | 310mm cerametallic disc |
With 16.9-38 rear tires. | |
 | |
Dimensions
Renault 95-14 TX Tires | |
|---|---|
Standard tires (ag) | Front: 14.9-24. Rear: 16.9-34 |
Optional tires (ag) | Front: 14.9-28. Rear: 16.9-38 |
Front: 12.4-28. Rear: 13.6-38 | |
Dimensions | |
|---|---|
Wheelbase | 97.6 inches
247 cm |
Length | 169.3 inches
430 cm |
Width | 79.9 inches
202 cm |
Height | 109.1 inches
277 cm |
Weight | 10174 lbs
4614 kg |
Max weight | 14661 lbs
6650 kg |
Clearance (front axle) | 17.3 inches
43 cm |
Clearance (rear axle) | 19.3 inches
49 cm |
Front tread | 63 to 78.7 inches
160 to 199 cm |
Rear tread | 51.2 to 78.7 inches
130 to 199 cm |
