Roper T323 RT-13

The Roper T323 RT-13 is a tractor produced by Roper Lawn Tractors. It is equipped with a 494 cc 30.16 ci engine. The listed engine power is Gasoline (gross): 13 hp / 9.7 kW. Transmission: infinite forward and reverse.

Engine Power
Gasoline (gross): 13 hp / 9.7 kW
Fuel & Capacities
2.5 gal 9.5 L
Transmission
infinite forward and reverse

Overview

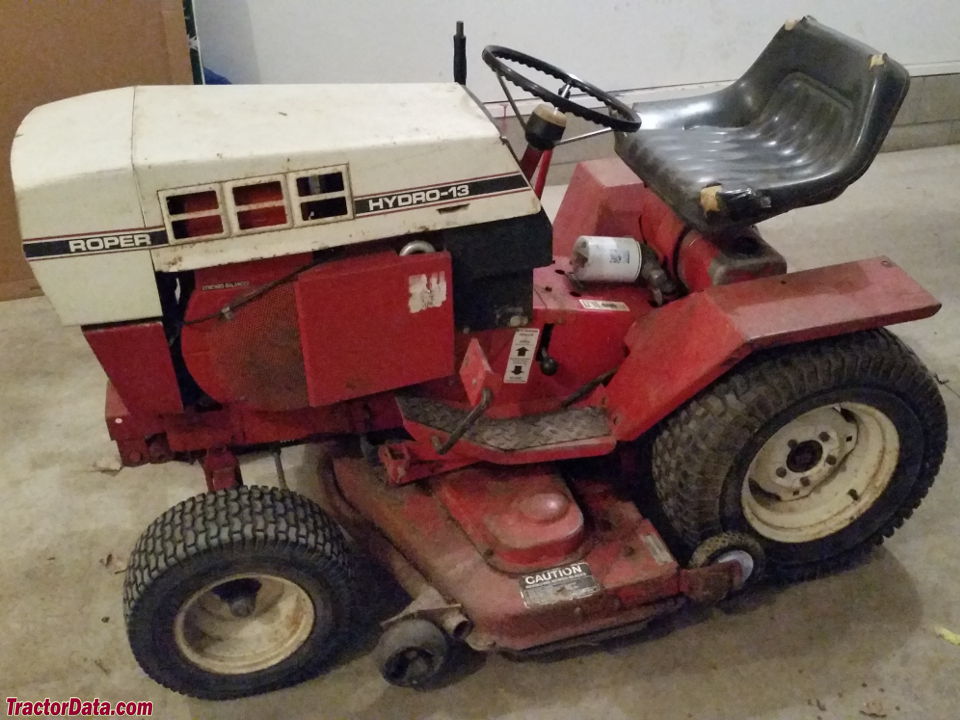

Roper T323 RT-13 tractor photo
1974 - 1977 Garden tractor
Production
Manufacturer
Roper
Garden tractor
Built in Orangeburg, South Carolina, USA
Variants
T322
gear
T323
hydrostatic
Roper T323 Engine
13HP Briggs & Stratton 494cc 1-cyl gasoline
Fuel tank
2.5 gal 9.5 L
Engine details ...
Roper T323 Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Open operator station.
Tractor hitch
Type
Roper Tri-Hitch
Dimensions & Tires
Wheelbase
43.375 inches 110 cm
Front tire
16x5.50-8
Rear tire
23x8.50-12
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
References

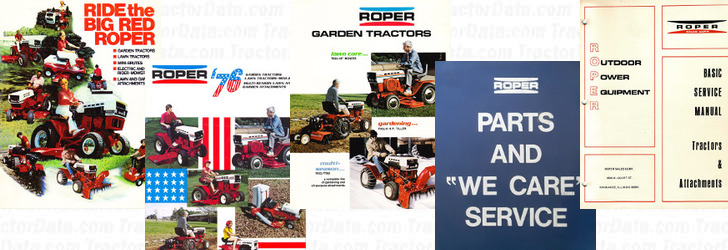

T323 RT-13 references literature
Ride the Big Red Roper published in 1974
Roper '76 published in 1976
Garden Tractors published in 1977, by Roper
Parts and "We Care" Service published in 1986
Service Manual Tractors & Attachments published in 1973

Engine

Engine Detail — 494 cc / 30.16 ci Gasoline

Manufacturer
Briggs & Stratton 302437
Fuel Type
Gasoline
Configuration
1-cylinder, air-cooled horizontal-shaft
Displacement
494 cc 30.16 ci
Bore/Stroke
3.4375x3.25 inches 87 x 83 mm
Power (gross)
13 hp 9.7 kW
Starter
electric
Starter volts
12

Transmission

Transmission — infinite forward and reverse belt-driven hydrostatic

Type
belt-driven hydrostatic
Gears
infinite forward and reverse
T323 RT-13 belt-driven hydrostatic speeds

Dimensions

Roper T323 Tires
Lawn/turf front
16x5.50-8
Lawn/turf rear
23x8.50-12
Dimensions
Wheelbase
43.375 inches 110 cm
Length
65.125 inches 165 cm
Width
39.5 inches 100 cm
Height
35 inches 88 cm

Attachments

Attachment overview
42" mid-mount mower deck
48" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

Roper T323 RT-13

Roper T323 RT-13

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Roper Lawn Tractors Roper T323 RT-13.

Estimated Continuous Field Runtime: 3.7 hrs

Approximately 3.7 hours of continuous field operation at ~75% rated power on a full tank (2.5 gal / 9.5 L).

Estimated 75% Load Fuel Burn~0.7 gal/hr (2.6 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Roper Lawn Tractors Roper T323 RT-13 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Roper Lawn Tractors Roper T323 RT-13.

Converted Equivalents:

Horsepower (HP)13 hp
Kilowatts (kW)9.7 kW
Metric Horsepower (PS / CV)13.2 PS
