Sabre 1438GS

The Sabre 1438GS is a tractor produced by Sabre Lawn Tractors. It is equipped with a 465 cc 28.4 ci engine. The listed engine power is Gasoline (gross): 14.5 hp / 10.8 kW. Transmission: Dana 4360. Operating weight: 391 lbs 177 kg.

Overview

	1998 - 2001 Lawn tractor

Production
Manufacturer	Sabre (a part of John Deere)
Lawn tractor
Built in Greeneville, Tennessee, USA
Original price was $1,429 in 1999

Sabre 1438GS Engine
14.5HP Briggs & Stratton 465cc 1-cyl gasoline
Fuel tank	1.25 gal 4.7 L
Engine details ...

Sabre 1438GS Transmission
5-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Disc brakes
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	manual

Dimensions & Tires
Wheelbase	44.7 inches 113 cm
Weight	391 lbs 177 kg
Front tire	15x6.5-6
Rear tire	20x8-8
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	unregulated
Charging amps	3
Battery CCA	230
Battery volts	12
Battery Group	U1

References
Lawn and Garden Product Information Handbook published in 1998, by John Deere
Lawn and Garden Product Information Handbook published in 2000, by John Deere
Lawn and Garden Product Information Handbook published in 2001, by John Deere
Lawn & Grounds Care Sales Manual published in 1997, by John Deere*
Commercial & Consumer Equipment Sales Manual published in 1999, by John Deere
Grounds Care Equipment Purchasing Guide published in 1999, by John Deere
Grounds Care Equipment Purchasing Guide published in 2000, by John Deere
Grounds Care Equipment Purchasing Guide published in 2001, by John Deere
Sabre Lawn Tractors - Yard Tractors - Garden Tractors published in 1999, by John Deere
Sabre Lawn Tractors - Yard Tractors - Garden Tractors published in 2000, by John Deere
Sabre Tractors published in 2001, by John Deere
*Publication contains known errors.
Operator's Manual Sabre Lawn Tractors 1438GS, 1438HS, 1542HS, 1742GS, 1742HSS and 2046HS (OMGX10782) published in 2000
Operator's Manual Sabre Lawn Tractors (OMGX10226) published in 1997
Operator's Manual Sabre Lawn Tractors (OMGX10143) published in 1997

Engine

Engine Detail — 465 cc / 28.4 ci Gasoline

Manufacturer	Briggs & Stratton 28N707
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	465 cc 28.4 ci
Bore/Stroke	3.44x3.06 inches 87 x 78 mm
Power (gross)	14.5 hp 10.8 kW
Air cleaner	paper and foam
Idle RPM	1750-3300
Starter	electric
Starter volts	12

Transmission

Transmission — Dana 4360

Transmission	Dana 4360
Type	belt-driven gear
Gears	5 forward and 1 reverse

Dimensions

Sabre 1438GS Tires
Lawn/turf front	15x6.5-6
Lawn/turf rear	20x8-8

Dimensions
Wheelbase	44.7 inches 113 cm
Length	60 inches 152 cm
Width	36 inches 91 cm
Height (steering wheel)	38.6 inches 98 cm
Weight	391 lbs 177 kg

Attachments

Attachment overview
38" mid-mount mower deck
Snowblower
Blade

38" Mower deck
Type	mid-mount Sabre BG10108
	2-blade with manual lift
Cutting width	38 inches 96 cm
Cut height	1 to 4 inch 2 to 10 cm

Photos

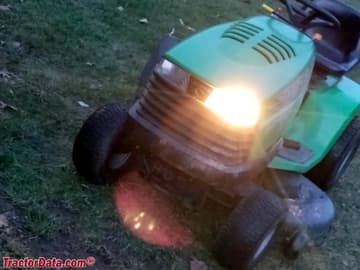

Sabre 1438GS
