TractorData

Sabre 14.542GS

The Sabre 14.542GS is a tractor produced by Sabre Lawn Tractors. It is equipped with a 465 cc 28.4 ci engine. The listed engine power is Gasoline (gross): 14.5 hp / 10.8 kW. Transmission: Dana 4360. Operating weight: 439 lbs 199 kg.

Engine Power
Gasoline (gross): 14.5 hp / 10.8 kW
Fuel & Capacities
2.1 gal 7.9 L
Transmission
Dana 4360
Operating Weight
439 lbs 199 kg

Overview

Sabre 14.542GS tractor photo
2002 Lawn tractor
Production
Manufacturer
Sabre (a part of John Deere)
Lawn tractor
Built in Greeneville, Tennessee, USA
Original price was $1,399 in 2002
Sabre 14.542GS Engine
14.5HP Briggs & Stratton 465cc 1-cyl gasoline
Fuel tank
2.1 gal 7.9 L
Engine details ...
Sabre 14.542GS Transmission
5-speed gear
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Open operator station.
Power Take-off (PTO)
Mid PTO
independent
Clutch
mechanical
Dimensions & Tires
Wheelbase
44.7 inches 113 cm
Weight
439 lbs 199 kg
Front tire
15x6-6
Rear tire
20x8-8
Full dimensions and tires ...
Electrical
Ground
negative
Charging amps
9
Battery CCA
160
Battery volts
12
References
14.542GS references literature
Lawn and Garden Product Information Handbook published in 2002, by John Deere
Deere Season 2002 published by John Deere
Operator's Manual Sabre Lawn Tractors 14.542GS, 1642HS and 17.542HS (OMGX20196) published in 2001
Sabre Lawn Tractors 2002 published by John Deere
Sabre Lawn Tractors published in 2002, by John Deere

Engine

Engine Detail — 465 cc / 28.4 ci Gasoline

Manufacturer
Briggs & Stratton
Fuel Type
Gasoline
Configuration
1-cylinder, air-cooled vertical-shaft
Displacement
465 cc 28.4 ci
Bore/Stroke
3.44x3.06 inches 87 x 78 mm
Power (gross)
14.5 hp 10.8 kW
Air cleaner
paper and foam
Starter volts
12
Oil capacity
1.5 qts 1.4 L
Sparkplug gap
0.040 inches 1.016 mm

Transmission

Transmission — Dana 4360

Transmission
Dana 4360
Type
belt-driven gear
Gears
5 forward and 1 reverse
14.542GS 4360 belt-driven gear speeds

Dimensions

Sabre 14.542GS Tires
Lawn/turf front
15x6-6
Lawn/turf rear
20x8-8
Dimensions
Wheelbase
44.7 inches 113 cm
Length
60 inches 152 cm
Width
36 inches 91 cm
Height
38.6 inches 98 cm
Weight
439 lbs 199 kg

Attachments

Attachment overview
42" mid-mount mower deck
Snowblower
Blade
Advertised attachments for the Sabre 14.542GS include a two-bag rear bagger, front bumper, weights, and tire chains.
42" Mower deck
Type
mid-mount Sabre
2-blade with manual lift
Cutting width
42 inches 106 cm
Cut height
1 to 4 inch 2 to 10 cm
Cut positions
7

Photos

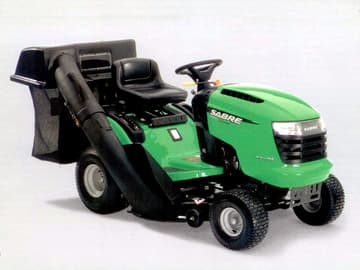

Sabre 14.542GS promotional image.

Sabre 14.542GS promotional image.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Sabre Lawn Tractors Sabre 14.542GS.

Estimated Continuous Field Runtime: 2.8 hrs

Approximately 2.8 hours of continuous field operation at ~75% rated power on a full tank (2.1 gal / 7.9 L).

Estimated 75% Load Fuel Burn~0.8 gal/hr (2.9 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Sabre Lawn Tractors Sabre 14.542GS Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Sabre Lawn Tractors Sabre 14.542GS.

Converted Equivalents:

Horsepower (HP)14.5 hp
Kilowatts (kW)10.8 kW
Metric Horsepower (PS / CV)14.7 PS
