Sabre 2254HV
The Sabre 2254HV is a tractor produced by Sabre Lawn Tractors. It is equipped with a 626 cc 38.2 ci engine. The listed engine power is Gasoline (gross): 22 hp / 16.4 kW. Transmission: Kanzaki Tuff Torq K65.
Engine Power
Gasoline (gross): 22 hp / 16.4 kW
Fuel & Capacities
3 gal
11.4 L
Transmission
Kanzaki Tuff Torq K65
Overview
 | 1998 - 1999
Garden SeriesGarden tractor
Garden Series
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Sabre (a part of John Deere) |
Garden tractor | |
Built in Horicon, Wisconsin, USA | |
Sabre 2254HV Engine | |
|---|---|
22HP Briggs & Stratton 626cc 2-cyl gasoline | |
Fuel tank | 3 gal
11.4 L |
Engine details ...  | |
Sabre 2254HV Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual sector-and-pinion |
Disc brakes | |
Open operator station. | |
Tractor hitch | |
|---|---|
Type | sleeve hitch OptOptional |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 48.5 inches
123 cm |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | flywheel alternator |
Charging amps | 16 |
Battery CCA | 340 |
Battery volts | 12 |
Battery Group | BCI U1 |
References | |
|---|---|
 | |
Lawn and Garden Product Information Handbook published in 1998, by John Deere | |
Commercial & Consumer Equipment Sales Manual published in 1999, by John Deere | |
Grounds Care Equipment Purchasing Guide published in 1999, by John Deere | |
Sabre Lawn Tractors - Yard Tractors - Garden Tractors published in 1999, by John Deere |
Engine
Engine Detail — 626 cc / 38.2 ci Gasoline
Manufacturer | Briggs & Stratton 380777 |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled V-twin OHV |
Displacement | 626 cc
38.2 ci |
Power (gross) | 22 hp
16.4 kW |
Air cleaner | dry with foam precleaner |
Idle RPM | 1550-3550 |
Starter volts | 12 |
Transmission
Transmission — Kanzaki Tuff Torq K65
Transmission | Kanzaki Tuff Torq K65 |
Type | hydrostatic |
Gears | infinite forward and reverse |
Oil capacity | 3.4 qts
3.2 L |
 | |
Dimensions
Sabre 2254HV Tires |
|---|
Dimensions | |
|---|---|
Wheelbase | 48.5 inches
123 cm |
Length | 72.3 inches
183 cm |
Width | 41.1 inches
104 cm |
Height | 45.6 inches
115 cm |
Attachments
Attachment overview | |
|---|---|
54" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
54" Mower deck | |
|---|---|
Type | mid-mount Sabre |
3-blade with manual lift | |
Cutting width | 54 inches
137 cm |
Photos

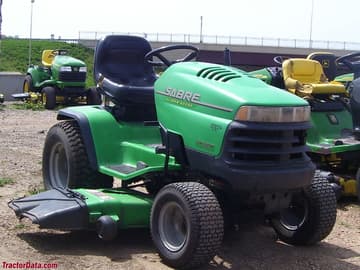

Sabre 2254HV
Sabre 2254HV
Recommended Implements & Sizing Guide
Engineering recommendations for Sabre Lawn Tractors Sabre 2254HV based on its 22 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Sabre Lawn Tractors Sabre 2254HV.
Estimated Continuous Field Runtime: 2.6 hrs
Approximately 2.6 hours of continuous field operation at ~75% rated power on a full tank (3 gal / 11.4 L).
Estimated 75% Load Fuel Burn~1.1 gal/hr (4.3 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Sabre Lawn Tractors Sabre 2254HV Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Sabre Lawn Tractors Sabre 2254HV.
Converted Equivalents:
Horsepower (HP)22 hp
Kilowatts (kW)16.4 kW
Metric Horsepower (PS / CV)22.3 PS
