Sabre 1848GV
The Sabre 1848GV is a tractor produced by Sabre Lawn Tractors. It is equipped with a 568 cc 34.7 ci engine. The rated power output is 18 hp 13.4 kW. Transmission: Peerless 802. Operating weight: 565 lbs 256 kg.
Engine Power
18 hp
13.4 kW
Fuel & Capacities
3.5 gal
13.2 L
Transmission
Peerless 802
Operating Weight
565 lbs
256 kg
Sabre Lawn Tractors Sabre 1848GV Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1998 - 1999
Yard SeriesLawn tractor |
|---|---|
1998 - 1999 | |
Yard Series | |
Lawn tractor | |
Production | |
|---|---|
Manufacturer | Sabre (a part of John Deere) |
Lawn tractor | |
Built in Horicon, Wisconsin, USA | |
Sabre 1848GV Engine | |
|---|---|
18HP Briggs & Stratton 568cc 2-cyl gasoline | |
Fuel tank | 3.5 gal
13.2 L |
Engine details ...  | |
Sabre 1848GV Transmission | |
|---|---|
6-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 48.5 inches
123 cm |
Weight | 565 lbs
256 kg |
Front tire | 16x6.50-8 |
Rear tire | 23x9.50-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | flywheel alternator |
Charging amps | 16 |
Battery CCA | 340 |
Battery volts | 12 |
Battery Group | BCI U1 |

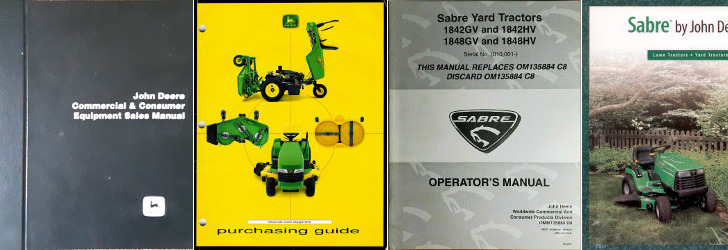

References | |
|---|---|
 | |
Commercial & Consumer Equipment Sales Manual published in 1999, by John Deere | |
Grounds Care Equipment Purchasing Guide published in 1999, by John Deere | |
Operator's Manual Sabre Yard Tractors 1842GV, 1842HV, 1848GV and 1848HV (OMM135884) published in 1998* | |
Sabre Lawn Tractors - Yard Tractors - Garden Tractors published in 1999, by John Deere | |
*Publication contains known errors. |
Engine
Engine Detail — 568 cc / 34.7 ci Gasoline
Manufacturer | Briggs & Stratton 350777 |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft V-Twin |
Displacement | 568 cc
34.7 ci |
Power (gross) | 18 hp
13.4 kW |
Air cleaner | dry with foam precleaner |
Idle RPM | 1550-3350 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — Peerless 802
Transmission | Peerless 802 |
Type | belt-driven gear |
Gears | 6 forward and 1 reverse |
Oil capacity | 3.4 qts
3.2 L |
 | |
Dimensions
Sabre 1848GV Tires | |
|---|---|
Lawn/turf front | 16x6.50-8 |
Lawn/turf rear | 23x9.50-12 |
Dimensions | |
|---|---|
Wheelbase | 48.5 inches
123 cm |
Length | 71.5 inches
181 cm |
Width | 37.6 inches
95 cm |
Height | 44.1 inches
112 cm |
Weight | 565 lbs
256 kg |
Attachments
Attachment overview | |
|---|---|
48" mid-mount mower deck | |
Snowblower | |
Blade |
48" Mower deck | |
|---|---|
Type | mid-mount Sabre |
3-blade with manual lift | |
Cutting width | 48 inches
121 cm |
Cut height | 1 to 4 inch
2 to 10 cm |
