SAME Argon 60

The SAME Argon 60 is a tractor produced by Same. It is equipped with a 183.1 ci 3.0 L engine. The rated power output is 59 hp 44.0 kW. Transmission: 24 forward and 12 reverse. Operating weight: 4542 to 5071 pounds.

Overview

	1993 - 2001 Argon SeriesUtility tractor
1993 - 2001
Argon Series
Utility tractor

Production
Manufacturer	SAME
Utility tractor

Variants
Argon F 65	orchard
564-60 Crono	similar Lamborghini model
H-306 XE	similar Hurlimann model
5660	similar AGCO Allis model

SAME Argon 60 Engine
SAME 3.0L 3-cyl diesel
Fuel tank	15.3 gal 57.9 L
Engine details ...

SAME Argon 60 Power
Engine	59 hp 44.0 kW

Mechanical
Two- or four-wheel drive
Final drives	planetary
Power steering
Hydraulic wet disc brakes
Trailer brakes	hydraulic OptOptional
Four-post ROPS.

Hydraulics
Valves	2 or 3
Pump flow	8.7 gpm 32.9 lpm

Tractor hitch
Rear Type	II
Rear lift	6526 lbs 2960 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/540E
	540/1000
	540/540E
	1000

Dimensions & Tires
2WD Wheelbase	82.9 inches 210 cm
4WD Wheelbase	80.9 inches 205 cm
Weight	4542 to 5071 pounds
Front tire	7.50-16
2WD Rear tire	420/70R28
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Argon 50-60-70 published in 1999, by SAME
Argon 50-60-70 published in 2001, by SAME
Argon 50-60-70 published in 2003, by SAME

Engine

Engine Detail — 183.1 ci / 3.0 L Diesel

Manufacturer	SAME 1000.3 A
Fuel Type	Diesel
Configuration	3-cylinder, air-cooled
Displacement	183.1 ci 3.0 L
Bore/Stroke	4.134x4.54 inches 105 x 115 mm
Power	59 hp 44.0 kW
Rated RPM	2350
Starter volts	12

Transmission

Transmission options
8-speed mechanical shuttle
12-speed creeper
16-speed
24-speed creeper

Transmission — 8 forward and reverse mechanical shuttle

Type	mechanical shuttle
Gears	8 forward and reverse
With 420/70R30 rear tires.
Transmission
Type	creeper
Gears	12 forward and reverse

Transmission — 16 forward and 8 reverse

Gears	16 forward and 8 reverse
Transmission
Type	creeper
Gears	24 forward and 12 reverse

Dimensions

SAME Argon 60 Tires
2WD Standard tires (ag)	Front: 7.50-16. Rear: 420/70R28
4WD Standard tires (ag)	Front: 320/70R20. Rear: 420/70R28
2WD Optional tires (ag)	Front: 6.00-19. Rear: 12.4R32
2WD Optional tires (ag)	Front: 7.50-16. Rear: 420/70R30
2WD Optional tires (ag)	Front: 6.50-20. Rear: 12.4R36
4WD Optional tires (ag)	Front: 8.3R24. Rear: 12.4R32
4WD Optional tires (ag)	Front: 360/70R20. Rear: 420/70R30
4WD Optional tires (ag)	Front: 11.2R24. Rear: 12.4R36

Dimensions
2WD Wheelbase	82.9 inches 210 cm
4WD Wheelbase	80.9 inches 205 cm
Length	141.3 inches 358 cm
Width	70.1 inches*Minimum width 178 cm
2WD Weight	4542 lbs 2060 kg
4WD Weight	5071 lbs 2300 kg
2WD Ground clearance	17.3 inches 43 cm
4WD Ground clearance	14 inches 35 cm
2WD Front tread	50 to 61.8 inches 127 to 156 cm
4WD Front tread	52.8 to 68.5 inches 134 to 173 cm
Rear tread	55.1 to 70.9 inches 139 to 180 cm

SAME Argon 60 Height
Steering wheel	60.6 inches 153 cm
Hood	55.1 inches 139 cm
ROPS	89.6 inches 227 cm

Photos

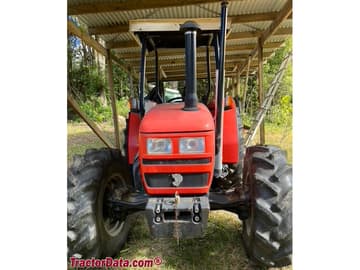

SAME Argon 60 utility tractor.
