SAME Solar 50

The SAME Solar 50 is a tractor produced by Same. It is equipped with a 165.7 ci 2.7 L engine. The rated power output is 49.6 hp 37.0 kW. Transmission: 16 forward and 4 reverse. Operating weight: 4409 to 5026 pounds.

Overview

	1986 - 1997 Solar SeriesUtility tractor
1986 - 1997
Solar Series
Utility tractor

Production
Manufacturer	SAME
Utility tractor

Variants
550	similar Lamborghini model
H-351	similar Hurlimann model
4650	similar AGCO Allis model

SAME Solar 50 Engine
SAME 2.7L 3-cyl diesel
Fuel tank	14.5 gal 54.9 L
Engine details ...

SAME Solar 50 Power
Engine	49.6 hp 37.0 kW

Mechanical
Two- or four-wheel drive
Steering	manual
Steering	power OptOptional
Mechanical wet disc brakes
Four-post ROPS.

Hydraulics
Pressure	2611 psi 180.0 bar
Pump flow	6.3 gpm 23.8 lpm

Tractor hitch
Rear Type	I
Rear lift	5225 lbs 2370 kg

Power Take-off (PTO)
Rear PTO	live
Rear PTO Type	540 (1.375)
	540/1000 OptOptional

Dimensions & Tires
2WD Wheelbase	82.3 inches 209 cm
4WD Wheelbase	81.3 inches 206 cm
Weight	4409 to 5026 pounds
Front tire	6.50-16
2WD Rear tire	12.4/11-28
Full dimensions and tires ...

Electrical
Charging system	alternator
Battery volts	12

References
Solar 50 published in 1986, by SAME
Solar 50 published in 1992, by SAME

Engine

Engine Detail — 165.7 ci / 2.7 L Diesel

Manufacturer	SAME 983 L
Fuel Type	Diesel
Configuration	3-cylinder, air-cooled
Displacement	165.7 ci 2.7 L
Bore/Stroke	3.86x4.72 inches 98 x 120 mm
Power	49.6 hp 37.0 kW
Rated RPM	2200
Starter volts	12

Transmission

Transmission options
12-speed synchronized
16-speed creeper

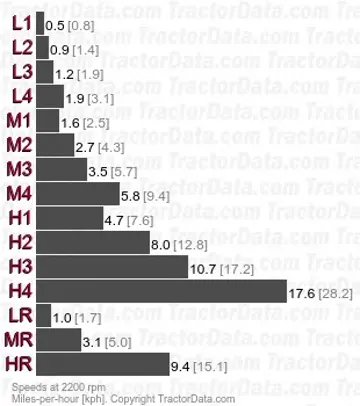

Transmission — 12 forward and 3 reverse synchronized

Type	synchronized
Gears	12 forward and 3 reverse
Clutch	dry disc
With 12.4/11-28 rear tires.
Transmission
Type	creeper
Gears	16 forward and 4 reverse

Dimensions

SAME Solar 50 Tires
2WD Standard tires (ag)	Front: 6.50-16. Rear: 12.4/11-28
4WD Standard tires (ag)	Front: 8.00-20. Rear: 12.4/11-28
2WD Optional tires (ag)	Front: 6.50-16. Rear: 13.6/12-28
2WD Optional tires (ag)	Front: 6.50-16. Rear: 14.9/13-28
2WD Optional tires (ag)	Front: 6.00-19. Rear: 12.4/11-32
4WD Optional tires (ag)	Front: 9.5/9-20. Rear: 13.6/12-28
4WD Optional tires (ag)	Front: 11.2/10-20. Rear: 14.9/13-28
4WD Optional tires (ag)	Front: 8.3/8-24. Rear: 12.4/11-32

Dimensions
2WD Wheelbase	82.3 inches 209 cm
4WD Wheelbase	81.3 inches 206 cm
Length	124 inches (without hitch) 314 cm
	133.3 inches (with hitch) 338 cm
Width	66 inches*Minimum width 167 cm
2WD Weight	4409 lbs 1999 kg
4WD Weight	5026 lbs 2279 kg
2WD Ground clearance	18.1 inches 45 cm
4WD Ground clearance	13.8 inches 35 cm
2WD Front tread	48.4 to 64.2 inches 122 to 163 cm
4WD Front tread	53.5 to 61.4 inches 135 to 155 cm
Rear tread	53.5 to 73.2 inches 135 to 185 cm

SAME Solar 50 Height
2WD Hood	52 inches 132 cm
4WD Hood	51.2 inches 130 cm
ROPS	89.8 inches 228 cm

Photos

SAME Solar 50 tractor photo
