SAME Atlanta 45
The SAME Atlanta 45 is a tractor produced by Same. It is equipped with a 207.5 ci 3.4 L engine. The listed engine power is Diesel (listed): 44 hp / 32.8 kW. Transmission: 6 forward and 2 reverse. Operating weight: 3483 to 3814 pounds.
Engine Power
Diesel (listed): 44 hp / 32.8 kW
Fuel & Capacities
Diesel
Transmission
6 forward and 2 reverse
Operating Weight
3483 to 3814 pounds
Overview
 | 1965 - 1969
Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | SAME |
Utility tractor | |
SAME Atlanta 45 Engine | |
|---|---|
SAME 3.4L 4-cyl diesel | |
Engine details ...  |
SAME Atlanta 45 Transmission | |
|---|---|
6-speed gear | |
Transmission details ...  |
SAME Atlanta 45 Power | |
|---|---|
Engine | 44 hp
32.8 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Open operator station. |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 72.1 inches
183 cm |
4WD Wheelbase | 67.7 inches
171 cm |
Weight | 3483 to 3814 pounds |
Front tire | 5.550-16 |
2WD Rear tire | 10-28 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 207.5 ci / 3.4 L Diesel
Manufacturer | SAME DA 954/V |
Fuel Type | Diesel |
Configuration | 4-cylinder, air-cooled V4 |
Displacement | 207.5 ci
3.4 L |
Bore/Stroke | 3.74x4.72 inches
95 x 120 mm |
Power | 44 hp
32.8 kW |
Compression | 17:1 |
Rated RPM | 1700 |
Starter type | electric |
Transmission
Transmission — 6 forward and 2 reverse gear
Type | gear |
Gears | 6 forward and 2 reverse |
 | |
Dimensions
SAME Atlanta 45 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 5.550-16. Rear: 10-28 |
4WD Standard tires (ag) | Front: 7.5-20. Rear: 10-28 |
Dimensions | |
|---|---|
2WD Wheelbase | 72.1 inches
183 cm |
4WD Wheelbase | 67.7 inches
171 cm |
2WD Length | 109.5 inches
278 cm |
4WD Length | 109.8 inches
278 cm |
2WD Width | 58.7 inches
149 cm |
4WD Width | 63 inches
160 cm |
Height | 57.5 inches
146 cm |
2WD Weight | 3483 lbs
1579 kg |
4WD Weight | 3814 lbs
1730 kg |
2WD Ground clearance | 16.9 inches
42 cm |
4WD Ground clearance | 9.5 inches
24 cm |
2WD Front tread | 47.2 to 74.8 inches
119 to 189 cm |
4WD Front tread | 48.4 inches
122 cm |
2WD Rear tread | 47.2 to 74.8 inches
119 to 189 cm |
4WD Rear tread | 51.2 inches
130 cm |
Photos

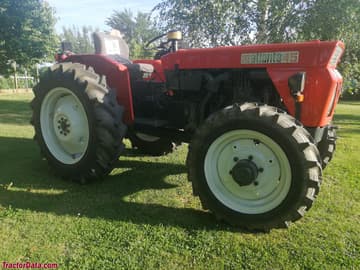

SAME Atlanta 45
SAME Atlanta 45
Recommended Implements & Sizing Guide
Engineering recommendations for Same Atlanta 45 based on its 44 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm) | Medium Duty | Standard utility farm tillage. |
Rotary Cutter / MowerMowing & Clearing | 6 ft (72 in)1.8 m | Medium Duty | Medium pasture clearing; rear slip-clutch recommended. |
Rotary TillerSeedbed Prep | 66 to 72 in165 - 180 cm | Medium Duty | Standard utility tiller; slip clutch protection required. |
Disc HarrowSecondary Tillage | 7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙 | Medium Duty | Field leveling and clod breaking behind plows. |
Hay BalerHay & Forage | Small Square Baler (14x18")小方捆打捆机 (36x46 cm) | Medium Duty | Classic 2-string baler for horse and small livestock hay. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Same Atlanta 45.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Same Atlanta 45 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Same Atlanta 45.
Converted Equivalents:
Horsepower (HP)44 hp
Kilowatts (kW)32.8 kW
Metric Horsepower (PS / CV)44.6 PS
Direct Competitor Comparison
Compare SAME Atlanta 45 against same-era industry alternatives in the same horsepower class.
Current Model
Same
SAME Atlanta 45
Engine Power:Diesel (listed): 44 hp / 32.8 kW
★ Baseline Reference
International HarvesterMarket Competitor
International Harvester 383
Engine Power:40
Production Years:1982 - 1984
