SAME Corsaro 70

The SAME Corsaro 70 is a tractor produced by Same. It is equipped with a 220.89 ci 3.6 L engine. The rated power output is 68.4 hp 51.0 kW. Transmission: 14 forward and 7 reverse. Operating weight: 5908 to 6460 pounds.

Engine Power
68.4 hp 51.0 kW
Fuel & Capacities
21.1 gal 79.9 L
Transmission
14 forward and 7 reverse
Operating Weight
5908 to 6460 pounds

Same Corsaro 70 Serial Number & Year Decoder

Find the exact manufacture year of your tractor by checking your chassis serial number below.

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.

Overview

SAME Corsaro 70 tractor photo
1972 - 1980
1972 - 1980
Production
Manufacturer
SAME
SAME Corsaro 70 Engine
SAME 3.6L 4-cyl diesel
Fuel tank
21.1 gal 79.9 L
Engine details ...
SAME Corsaro 70 Power
Engine
68.4 hp 51.0 kW
Mechanical
Two- or four-wheel drive
Differential lock
mechanical rear
Manual steering
Four-post ROPS.
Hydraulics
Pump flow
6.3 gpm 23.8 lpm
Tractor hitch
Rear Type
II
Rear lift
6096 lbs 2765 kg
Power Take-off (PTO)
Rear PTO Type
540 (1.375)
Dimensions & Tires
Wheelbase
92.5 inches 234 cm
Weight
5908 to 6460 pounds
Front tire
7.50-16
2WD Rear tire
14.9/13-30
Full dimensions and tires ...

Engine

Engine Detail — 220.89 ci / 3.6 L Diesel

Manufacturer
SAME 984 P
Fuel Type
Diesel
Configuration
4-cylinder, air-cooled inline
Displacement
220.89 ci 3.6 L
Bore/Stroke
3.86x4.72 inches 98 x 120 mm
Power
68.4 hp 51.0 kW
Fuel system
direct injection
Air cleaner
dry
Compression
17:1
Rated RPM
2200
Starter volts
12

Transmission

Transmission options
8-speed
14-speed creeper

Transmission — 8 forward and 4 reverse

Gears
8 forward and 4 reverse
Four gears in two ranges,
With 14.9/13-30 rear tires and 25 KPH option.
Corsaro 70 speeds
Transmission
Type
creeper
Gears
14 forward and 7 reverse
Corsaro 70 creeper speeds

Dimensions

SAME Corsaro 70 Tires
2WD Standard tires (ag)
Front: 7.50-16. Rear: 14.9/13-30
4WD Standard tires (ag)
Front: 9.5/9-24. Rear: 14.9/13-30
2WD Optional tires (ag)
Front: 6.50-20. Rear: 13.6/12-36
2WD Optional tires (ag)
Front: 7.50-16. Rear: 16.9/14-30
2WD Optional tires (ag)
Front: 7.50-18. Rear: 13.6/12-38
4WD Optional tires (ag)
Front: 11.2/10-24. Rear: 16.9/14-30
4WD Optional tires (ag)
Front: 12.4/11-24. Rear: 13.6/12-36
4WD Optional tires (ag)
Front: 12.4/11-24. Rear: 13.6/12-38
Dimensions
Wheelbase
92.5 inches 234 cm
2WD Length
153.5 inches 389 cm
4WD Length
154.7 inches 392 cm
Width
74 inches*Minimum width 187 cm
2WD Weight
5908 lbs 2679 kg
4WD Weight
6460 lbs 2930 kg
2WD Ground clearance
16.9 inches 42 cm
4WD Ground clearance
14.2 inches 36 cm
2WD Front tread
55.1 to 86.6 inches 139 to 219 cm
4WD Front tread
58.3 to 61.4 inches 148 to 155 cm
Rear tread
59.1 to 78.7 inches 150 to 199 cm
SAME Corsaro 70 Height
2WD Hood
68.4 inches 173 cm
4WD Hood
53.2 inches 135 cm
ROPS
94.1 inches 239 cm

Photos

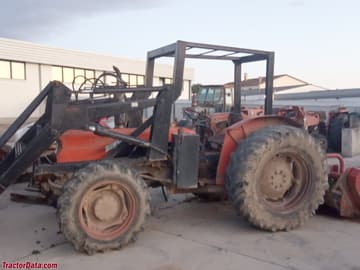

SAME Corsaro 70 with four-wheel drive.

SAME Corsaro 70 with four-wheel drive.

Two-wheel drive SAME Corsaro 70.

Two-wheel drive SAME Corsaro 70.
