SAME Golden 60
The SAME Golden 60 is a tractor produced by Same. It is equipped with a 183.1 ci 3.0 L engine. The listed engine power is Diesel (listed): 59 hp / 44.0 kW. Transmission: 30 forward and 15 reverse. Operating weight: 4409 to 5291 pounds.
Engine Power
Diesel (listed): 59 hp / 44.0 kW
Fuel & Capacities
14.5 gal
54.9 L
Transmission
30 forward and 15 reverse
Operating Weight
4409 to 5291 pounds
Overview
 | 1997 - 2003
Golden SeriesOrchard/Vineyard tractor
Golden Series
Orchard/Vineyard tractor |
|---|
Production | |
|---|---|
Manufacturer | SAME |
Orchard/Vineyard tractor | |
SAME Golden 60 Engine | |
|---|---|
SAME 3.0L 3-cyl diesel | |
Fuel tank | 14.5 gal
54.9 L |
23 gal*With optional second tank.
87.1 L | |
Engine details ...  | |
SAME Golden 60 Power | |
|---|---|
Engine | 59 hp
44.0 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Power steering | |
Two-post folding ROPS. Cab optional. |
Hydraulics | |
|---|---|
Pump flow | 9.25 gpm
35.0 lpm |
12.4 gpmOptOptional
46.9 lpm | |
14.3 gpm*Optional dual 27L pumps.
54.1 lpm | |
Tractor hitch | |
|---|---|
Rear lift | 5732 lbs
2600 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/540E |
540/540E/1000 | |
540/1000 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 75.8 inches
192 cm |
Weight | 4409 to 5291 pounds |
Front tire | 7.00-12 |
2WD Rear tire | 360/70R24 |
Full dimensions and tires ...  | |

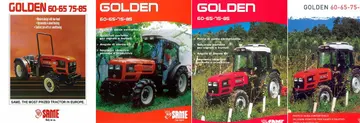

References | |
|---|---|
 | |
Golden 60-65 75-85 published in 1999, by SAME | |
Golden 60-65-75-85 published in 2001, by SAME | |
Golden 60-65-75-85 published in 2002, by SAME | |
Golden 60-65-75-85 published in 2003, by SAME |
Engine
Engine Detail — 183.1 ci / 3.0 L Diesel
Manufacturer | SAME 1000.3A |
Fuel Type | Diesel |
Configuration | 3-cylinder, air-cooled |
Displacement | 183.1 ci
3.0 L |
Bore/Stroke | 4.13x4.56 inches
105 x 116 mm |
Power | 59 hp
44.0 kW |
Rated RPM | 2350 |
Torque | 151.9 lb-ft
206.0 Nm |
Torque RPM | 1450 |
Transmission
Transmission options | |
|---|---|
16-speed synchronized | |
30-speed |

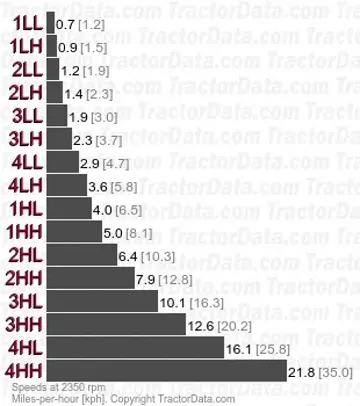

Transmission — 16 forward and 8 reverse synchronized
Type | synchronized |
Gears | 16 forward and 8 reverse |
Four gears in two ranges with additional high-low. | |
With 380/70R24 rear tires. | |
 | |

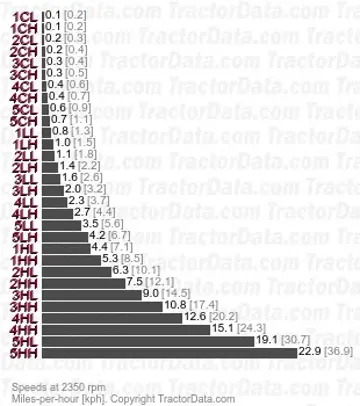

Transmission — 30 forward and 15 reverse
Gears | 30 forward and 15 reverse |
Five gears in three ranges with two-speed shift. | |
With 12.4R28 rear tires. | |
 | |
Dimensions
SAME Golden 60 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 7.00-12. Rear: 360/70R24 |
4WD Standard tires (ag) | Front: 240/70R16. Rear: 360/70R24 |
2WD Optional tires (ag) | Front: 6.50-16. Rear: 12.4R24 |
2WD Optional tires (ag) | Front: 6.50-16. Rear: 12.4R28 |
2WD Optional tires (ag) | Front: 6.50-16. Rear: 380/70R24 |
2WD Optional tires (ag) | Front: 7.00-12. Rear: 380/70R20 |
4WD Optional tires (ag) | Front: 210/80R16. Rear: 12.4R24 |
4WD Optional tires (ag) | Front: 7.50-16. Rear: 12.4R28 |
4WD Optional tires (ag) | Front: 260/70R16. Rear: 380/70R24 |
4WD Optional tires (ag) | Front: 200/70R16. Rear: 380/70R20 |
4WD Optional tires (ag) | Front: 240/70R16. Rear: 380/70R20 |
4WD Optional tires (ag) | Front: 280/60R15.5. Rear: 380/70R20 |
4WD Optional tires (ag) | Front: 210/80R16. Rear: 11.2R24 |
4WD Optional tires (ag) | Front: 240/70R16. Rear: 320/70R24 |
Dimensions | |
|---|---|
Wheelbase | 75.8 inches
192 cm |
Length | 116.9 inches
296 cm |
Width | 47.2 inches*With 12.4R24 rear tires.
119 cm |
42.1 inches*With 11.2R24 rear tires and swept front axle.
106 cm | |
Ground clearance | 9.1 inches
23 cm |
Front tread | 38.6/40.2 inches
98/102 cm |
Rear tread | 34.4 to inches
87 to 0 cm |
SAME Golden 60 Weight | |
|---|---|
2WD ROPS | 4409 lbs
1999 kg |
4WD ROPS | 4850 lbs
2199 kg |
2WD Cab | 4850 lbs
2199 kg |
4WD Cab | 5291 lbs
2399 kg |
SAME Golden 60 Height | |
|---|---|
Steering wheel | 48.3 inches
122 cm |
Hood | 46.1 inches
117 cm |
Cab | 82.3 inches
209 cm |
Photos
SAME Golden 60 tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for Same Golden 60 based on its 59 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 3 to 4 Bottom (16")3 - 4 铧 (40 cm) | Heavy Duty | Suitable for medium loam and stubble turnover. |
Rotary Cutter / MowerMowing & Clearing | 6 ft (72 in)1.8 m | Medium Duty | Medium pasture clearing; rear slip-clutch recommended. |
Rotary TillerSeedbed Prep | 66 to 72 in165 - 180 cm | Medium Duty | Standard utility tiller; slip clutch protection required. |
Disc HarrowSecondary Tillage | 7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙 | Medium Duty | Field leveling and clod breaking behind plows. |
Hay BalerHay & Forage | Small Square Baler (14x18")小方捆打捆机 (36x46 cm) | Medium Duty | Classic 2-string baler for horse and small livestock hay. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Same Golden 60.
Estimated Continuous Field Runtime: 4.7 hrs
Approximately 4.7 hours of continuous field operation at ~75% rated power on a full tank (14.5 gal / 54.9 L).
Estimated 75% Load Fuel Burn~3.1 gal/hr (11.6 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Same Golden 60 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Same Golden 60.
Converted Equivalents:
Horsepower (HP)59 hp
Kilowatts (kW)44 kW
Metric Horsepower (PS / CV)59.8 PS
Direct Competitor Comparison
Compare SAME Golden 60 against same-era industry alternatives in the same horsepower class.
Current Model
Same
SAME Golden 60
Engine Power:Diesel (listed): 59 hp / 44.0 kW
★ Baseline Reference
International HarvesterMarket Competitor
International Harvester 485
Engine Power:53.6
Production Years:1981 - 1985
