SAME Golden 85

The SAME Golden 85 is a tractor produced by Same. It is equipped with a 244 ci 4.0 L engine. The rated power output is 83.8 hp 62.5 kW. Transmission: Agroshift. Operating weight: 5181 to 5622 pounds.

Overview

	1997 - 2003 Golden SeriesOrchard/Vineyard tractor
1997 - 2003
Golden Series
Orchard/Vineyard tractor

Production
Manufacturer	SAME
Orchard/Vineyard tractor

SAME Golden 85 Engine
SAME 4.0L 4-cyl diesel
Fuel tank	14.5 gal 54.9 L
	23 gal*With optional second tank. 87.1 L
Engine details ...

SAME Golden 85 Power
Engine	83.8 hp 62.5 kW

Mechanical
Four-wheel drive
Power steering
Two-post folding ROPS. Cab optional with available air-conditioning.

Hydraulics
Pump flow	9.25 gpm 35.0 lpm
	12.4 gpmOptOptional 46.9 lpm
	14.3 gpm*Optional dual 27L pumps. 54.1 lpm

Tractor hitch
Rear lift	5732 lbs 2600 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/540E
	540/540E/1000
	540/1000

Dimensions & Tires
Wheelbase	80.9 inches 205 cm
Weight	5181 to 5622 pounds
Full dimensions and tires ...

References
Golden 60-65 75-85 published in 1999, by SAME
Golden 60-65-75-85 published in 2001, by SAME
Golden 60-65-75-85 published in 2002, by SAME
Golden 60-65-75-85 published in 2003, by SAME

Engine

Engine Detail — 244 ci / 4.0 L Diesel

Manufacturer	SAME 1000.4AT
Configuration	turbocharged diesel, 4-cylinder, air-cooled
Displacement	244 ci 4.0 L
Bore/Stroke	4.13x4.55 inches 105 x 116 mm
Power	83.8 hp 62.5 kW
Rated RPM	2350
Torque	234.5 lb-ft 318.0 Nm
Torque RPM	1450

Transmission

Transmission options
16-speed synchronized
24-speed creeper
30-speed
45-speed

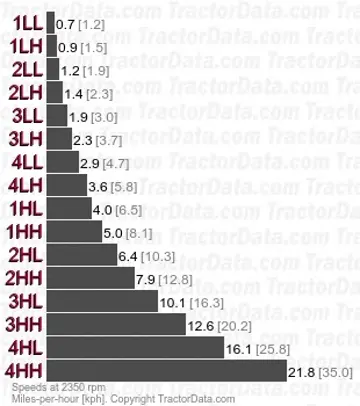

Transmission — 16 forward and 8 reverse synchronized

Type	synchronized
Gears	16 forward and 8 reverse
Four gears in two ranges with additional high-low.
With 380/70R24 rear tires.

Transmission — 24 forward and 12 reverse creeper

Type	creeper
Gears	24 forward and 12 reverse
Optional creeper ranges for the base transmission.

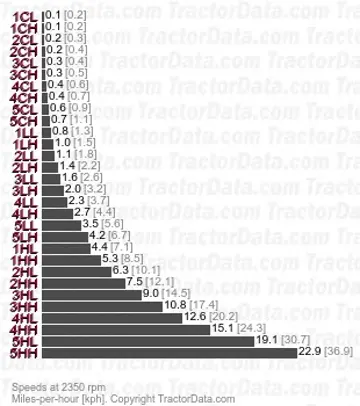

Transmission — 30 forward and 15 reverse

Gears	30 forward and 15 reverse
Five gears in three ranges with two-speed shift.
With 12.4R28 rear tires.

Transmission — Agroshift

Transmission	Agroshift
Gears	45 forward and reverse
Five gears in three ranges with three-speed shift.

Dimensions

SAME Golden 85 Tires
2WD Optional tires (ag)	Front: 7.00-12. Rear: 360/70R24
2WD Optional tires (ag)	Front: 6.50-16. Rear: 12.4R24
2WD Optional tires (ag)	Front: 6.50-16. Rear: 12.4R28
2WD Optional tires (ag)	Front: 6.50-16. Rear: 380/70R24
2WD Optional tires (ag)	Front: 7.00-12. Rear: 380/70R20
2WD Optional tires (ag)	Front: 7.50-16. Rear: 380/70R28
2WD Optional tires (ag)	Front: 7.50-16. Rear: 420/70R24
4WD 210/80R16 Optional tires (ag)	Front: 240/70R16. Rear: 360/70R24
4WD Optional tires (ag)	Front: 7.50-16. Rear: 12.4R28
4WD Optional tires (ag)	Front: 260/70R16. Rear: 380/70R24
4WD Optional tires (ag)	Front: 200/70R16. Rear: 380/70R20
4WD Optional tires (ag)	Front: 240/70R16. Rear: 380/70R20
4WD Optional tires (ag)	Front: 280/60R15.5. Rear: 380/70R20
4WD Optional tires (ag)	Front: 210/80R16. Rear: 11.2R24
4WD Optional tires (ag)	Front: 240/70R16. Rear: 320/70R24
4WD Optional tires (ag)	Front: 280/70R18. Rear: 380/70R28
4WD Optional tires (ag)	Front: 280/70R16. Rear: 420/70R24

Dimensions
Wheelbase	80.9 inches 205 cm
Length	122.1 inches 310 cm
Width	47.2 inches*With 12.4R24 rear tires. 119 cm
	42.1 inches*With 11.2R24 rear tires and swept front axle. 106 cm
2WD Weight	5181 lbs 2350 kg
4WD Weight	5622 lbs 2550 kg
Ground clearance	9.1 inches 23 cm
Front tread	38.6/40.2 inches 98/102 cm
Rear tread	34.4 to inches 87 to 0 cm

SAME Golden 85 Height
Steering wheel	48.3 inches 122 cm
Hood	46.1 inches 117 cm
Cab	82.3 inches 209 cm

Photos

SAME Golden 85 tractor photo
