SAME Krypton 95

The SAME Krypton 95 is a tractor produced by Same. It is equipped with a 244.1 ci 4.0 L engine. The listed engine power is Diesel (net): 88.5 hp / 66.0 kW; Diesel (gross): 93.9 hp / 70.0 kW. Transmission: 16 forward and reverse. Drive type: crawler. Operating weight: 10032 lbs 4550 kg.

Engine Power
Diesel (net): 88.5 hp / 66.0 kW; Diesel (gross): 93.9 hp / 70.0 kW
Drive & Traction
crawler
Fuel & Capacities
34.3 gal 129.8 L
Transmission
16 forward and reverse
Operating Weight
10032 lbs 4550 kg

Overview

SAME Krypton 95 tractor photo
2004 - ???? Krypton SeriesAgricultural Crawler tractor
2004 - ????
Krypton Series
Agricultural Crawler tractor
2004 - ????
Krypton Series
Agricultural Crawler tractor
Production
Manufacturer
SAME
Agricultural Crawler tractor
SAME Krypton 95 Engine
SAME 4.0L 4-cyl diesel
Fuel tank
34.3 gal 129.8 L
Engine details ...
SAME Krypton 95 Power
Engine (gross)
93.9 hp 70.0 kW
Engine (net)
88.5 hp 66.0 kW
Mechanical
Drive
crawler
Four-post ROPS.
Hydraulics
Pump flow
13.2 gpm 50.0 lpm
Tractor hitch
Rear lift
6615 lbs 3000 kg
Power Take-off (PTO)
Rear PTO
independent
Clutch
hydraulic wet disc
Rear PTO Type
540/540E/1000
Dimensions & Tracks
Wheelbase
65 inches 165 cm
Weight
10032 lbs 4550 kg
15.75-inch tracks
Full dimensions and tracks ...
References
Krypton 95 references literature
Krypton 95-105 published in 2004, by SAME

Engine

SAME Krypton 95 tractor photo
2004 - ???? Krypton SeriesAgricultural Crawler tractor
2004 - ????
Krypton Series
Agricultural Crawler tractor
2004 - ????
Krypton Series
Agricultural Crawler tractor

Engine Detail — 244.1 ci / 4.0 L Diesel

Manufacturer
SAME 1000.4 WT
Configuration
turbocharged diesel, 4-cylinder, liquid-cooled
Displacement
244.1 ci 4.0 L
Bore/Stroke
4.13x4.55 inches 105 x 116 mm
Emissions
Stage II
Rated Power (net)
88.5 hp 66.0 kW
Rated Power (gross)
93.9 hp 70.0 kW
Air cleaner
dry
Rated RPM
2500

Transmission

SAME Krypton 95 tractor photo
2004 - ???? Krypton SeriesAgricultural Crawler tractor
2004 - ????
Krypton Series
Agricultural Crawler tractor
2004 - ????
Krypton Series
Agricultural Crawler tractor
Transmission options
16-speed shuttle
16-speed creeper

Transmission — 16 forward and reverse shuttle

Type
shuttle
Gears
16 forward and reverse
Four synchronized gears in two ranges with under-drive and mechanical shuttle.

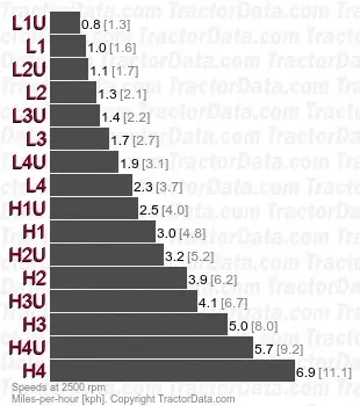

Krypton 95 shuttle speeds

Transmission — 16 forward and reverse creeper

Type
creeper
Gears
16 forward and reverse
Four synchronized gears in two ranges with mechanical shuttle and creeper.
Krypton 95 creeper speeds

Dimensions

SAME Krypton 95 tractor photo
2004 - ???? Krypton SeriesAgricultural Crawler tractor
2004 - ????
Krypton Series
Agricultural Crawler tractor
2004 - ????
Krypton Series
Agricultural Crawler tractor
SAME Krypton 95 Tracks
Width
15.75 inches 40 cm
Length on ground
164.5 inches 417 cm
Area on ground
5181 in² 3.3 m²
Width
17.7 inches 44 cm
Length on ground
164.5 inches 417 cm
Area on ground
5823 in² 3.8 m²
Dimensions
Wheelbase
65 inches 165 cm
Length
134.3 inches 341 cm
Width
70.9 inches 180 cm
Weight
10032 lbs 4550 kg
Ground clearance
15.8 inches 40 cm
Gauge
53.2 inches 135 cm

Photos

SAME Krypton 95 tractor photo

SAME Krypton 95 tractor photo

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Same Krypton 95.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
