SAME Krypton F 80

The SAME Krypton F 80 is a tractor produced by Same. It is equipped with a 244.1 ci 4.0 L engine. The listed engine power is Diesel (net): 69.1 hp / 51.5 kW; Diesel (gross): 73.1 hp / 54.5 kW. Transmission: 16 forward and reverse. Drive type: crawler. Operating weight: 8820 lbs 4000 kg.

Engine Power
Diesel (net): 69.1 hp / 51.5 kW; Diesel (gross): 73.1 hp / 54.5 kW
Drive & Traction
crawler
Fuel & Capacities
19.8 gal 74.9 L
Transmission
16 forward and reverse
Operating Weight
8820 lbs 4000 kg

Overview

SAME Krypton F 80 tractor photo
2005 - ???? Krypton SeriesAgricultural Crawler tractor
2005 - ????
Krypton Series
Agricultural Crawler tractor
2005 - ????
Krypton Series
Agricultural Crawler tractor
Production
Manufacturer
SAME
Agricultural Crawler tractor
SAME Krypton F 80 Engine
SAME 4.0L 4-cyl diesel
Fuel tank
19.8 gal 74.9 L
Engine details ...
SAME Krypton F 80 Power
Engine (gross)
73.1 hp 54.5 kW
Engine (net)
69.1 hp 51.5 kW
Mechanical
Drive
crawler
Two-post mid-mount folding ROPS.
Hydraulics
Pump flow
14.8 gpm 56.0 lpm
Total flow
22.5 gpm 85.2 lpm
Tractor hitch
Rear lift
6615 lbs 3000 kg
Power Take-off (PTO)
Rear PTO
independent
Clutch
hydraulic wet disc
Rear PTO Type
540/540E
Dimensions & Tracks
Wheelbase
65 inches 165 cm
Weight
8820 lbs 4000 kg
12.2-inch tracks
Full dimensions and tracks ...
References
Krypton F 80 references literature
Krypton F 80-90-100 published in 2005, by SAME

Engine

SAME Krypton F 80 tractor photo
2005 - ???? Krypton SeriesAgricultural Crawler tractor
2005 - ????
Krypton Series
Agricultural Crawler tractor
2005 - ????
Krypton Series
Agricultural Crawler tractor

Engine Detail — 244.1 ci / 4.0 L Diesel

Manufacturer
SAME 1000.4 W
Fuel Type
Diesel
Configuration
4-cylinder, liquid-cooled
Displacement
244.1 ci 4.0 L
Bore/Stroke
4.13x4.55 inches 105 x 116 mm
Emissions
Stage II
Rated Power (net)
69.1 hp 51.5 kW
Rated Power (gross)
73.1 hp 54.5 kW
Air cleaner
dry
Rated RPM
2200
Torque
190 lb-ft 257.6 Nm
Torque RPM
1400

Transmission

SAME Krypton F 80 tractor photo
2005 - ???? Krypton SeriesAgricultural Crawler tractor
2005 - ????
Krypton Series
Agricultural Crawler tractor
2005 - ????
Krypton Series
Agricultural Crawler tractor
Transmission options
16-speed shuttle
16-speed creeper

Transmission — 16 forward and reverse shuttle

Type
shuttle
Gears
16 forward and reverse
Four synchronized gears in two ranges with under-drive and mechanical shuttle.

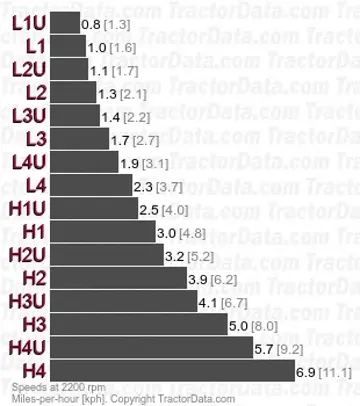

Krypton F 80 shuttle speeds

Transmission — 16 forward and reverse creeper

Type
creeper
Gears
16 forward and reverse
Four synchronized gears in two ranges with mechanical shuttle and creeper.
Krypton F 80 creeper speeds

Dimensions

SAME Krypton F 80 tractor photo
2005 - ???? Krypton SeriesAgricultural Crawler tractor
2005 - ????
Krypton Series
Agricultural Crawler tractor
2005 - ????
Krypton Series
Agricultural Crawler tractor
SAME Krypton F 80 Tracks
Width
12.2 inches 30 cm
Length on ground
64.8 inches 164 cm
Area on ground
1581 in² 1.0 m²
Width
14.2 inches 36 cm
Length on ground
64.8 inches 164 cm
Area on ground
1840 in² 1.2 m²
Dimensions
Wheelbase
65 inches 165 cm
Length
129.9 inches 329 cm
Height
56.3 inches 143 cm
Weight
8820 lbs 4000 kg
Ground clearance
9.8 inches 24 cm
Gauge
41.3 inches 104 cm
Gauge
43.3 inches 109 cm

Photos

SAME Krypton F 80 tractor photo

SAME Krypton F 80 tractor photo

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Same Krypton F 80.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Same Krypton F 80 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Same Krypton F 80.

Converted Equivalents:

Horsepower (HP)0 hp
Kilowatts (kW)0 kW
Metric Horsepower (PS / CV)0 PS
