SAME Krypton F 100
The SAME Krypton F 100 is a tractor produced by Same. It is equipped with a 244.1 ci 4.0 L engine. The listed engine power is Diesel (net): 88.5 hp / 66.0 kW; Diesel (gross): 93.7 hp / 69.9 kW. Transmission: 16 forward and reverse. Drive type: crawler. Operating weight: 9150 lbs 4150 kg.
Engine Power
Diesel (net): 88.5 hp / 66.0 kW; Diesel (gross): 93.7 hp / 69.9 kW
Drive & Traction
crawler
Fuel & Capacities
19.8 gal
74.9 L
Transmission
16 forward and reverse
Operating Weight
9150 lbs
4150 kg
Overview
 | 2005 - ????
Krypton SeriesAgricultural Crawler tractor |
|---|---|
2005 - ???? | |
Krypton Series | |
Agricultural Crawler tractor | |
2005 - ???? | |
|---|---|
Krypton Series | |
Agricultural Crawler tractor |
Production | |
|---|---|
Manufacturer | SAME |
Agricultural Crawler tractor | |
SAME Krypton F 100 Engine | |
|---|---|
SAME 4.0L 4-cyl diesel | |
Fuel tank | 19.8 gal
74.9 L |
Engine details ...  | |
SAME Krypton F 100 Power | |
|---|---|
Engine (gross) | 93.7 hp
69.9 kW |
Engine (net) | 88.5 hp
66.0 kW |
Mechanical | |
|---|---|
Drive | crawler |
Two-post mid-mount folding ROPS. | |
Hydraulics | |
|---|---|
Pump flow | 14.8 gpm
56.0 lpm |
Total flow | 22.5 gpm
85.2 lpm |
Tractor hitch | |
|---|---|
Rear lift | 6615 lbs
3000 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | hydraulic wet disc |
Rear PTO Type | 540/540E |
Dimensions & Tracks | |
|---|---|
Wheelbase | 65 inches
165 cm |
Weight | 9150 lbs
4150 kg |
14.2-inch tracks | |
Full dimensions and tracks ...  | |
References | |
|---|---|
 | |
Krypton F 80-90-100 published in 2005, by SAME |
Engine
| 2005 - ????
Krypton SeriesAgricultural Crawler tractor |
|---|---|
2005 - ???? | |
Krypton Series | |
Agricultural Crawler tractor | |
2005 - ???? | |
|---|---|
Krypton Series | |
Agricultural Crawler tractor |
Engine Detail — 244.1 ci / 4.0 L Diesel
Manufacturer | SAME 1000.4 WT |
Configuration | turbocharged diesel, 4-cylinder, liquid-cooled |
Displacement | 244.1 ci
4.0 L |
Bore/Stroke | 4.13x4.55 inches
105 x 116 mm |
Emissions | Stage II |
Rated Power (net) | 88.5 hp
66.0 kW |
Rated Power (gross) | 93.7 hp
69.9 kW |
Air cleaner | dry |
Rated RPM | 2200 |
Torque | 278 lb-ft
377.0 Nm |
Torque RPM | 1400 |
Transmission
| 2005 - ????
Krypton SeriesAgricultural Crawler tractor |
|---|---|
2005 - ???? | |
Krypton Series | |
Agricultural Crawler tractor | |
2005 - ???? | |
|---|---|
Krypton Series | |
Agricultural Crawler tractor |
Transmission options | |
|---|---|
16-speed shuttle | |
16-speed creeper |

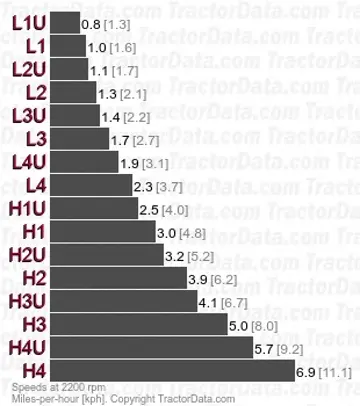

Transmission — 16 forward and reverse shuttle
Type | shuttle |
Gears | 16 forward and reverse |
Four synchronized gears in two ranges with under-drive and mechanical shuttle. | |
 | |
Transmission — 16 forward and reverse creeper
Type | creeper |
Gears | 16 forward and reverse |
Four synchronized gears in two ranges with mechanical shuttle and creeper. | |
 | |
Dimensions
| 2005 - ????
Krypton SeriesAgricultural Crawler tractor |
|---|---|
2005 - ???? | |
Krypton Series | |
Agricultural Crawler tractor | |
2005 - ???? | |
|---|---|
Krypton Series | |
Agricultural Crawler tractor |
SAME Krypton F 100 Tracks | |
|---|---|
Width | 14.2 inches
36 cm |
Length on ground | 64.8 inches
164 cm |
Area on ground | 1840 in²
1.2 m² |
Width | 17.7 inches
44 cm |
Length on ground | 64.8 inches
164 cm |
Area on ground | 2293 in²
1.5 m² |
Dimensions | |
|---|---|
Wheelbase | 65 inches
165 cm |
Length | 129.9 inches
329 cm |
Height | 56.3 inches
143 cm |
Weight | 9150 lbs
4150 kg |
Gauge | 43.3 inches
109 cm |
Gauge | 51.2 inches
130 cm |
Photos
SAME Krypton F 100 tractor photo
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Same Krypton F 100.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Same Krypton F 100 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Same Krypton F 100.
Converted Equivalents:
Horsepower (HP)0 hp
Kilowatts (kW)0 kW
Metric Horsepower (PS / CV)0 PS
