SAME Leopard 90 Turbo

The SAME Leopard 90 Turbo is a tractor produced by Same. It is equipped with a 253.5 ci 4.2 L engine. The listed engine power is Diesel (listed): 88 hp / 65.6 kW. Transmission: 20 forward and 5 reverse. Operating weight: 7054 to 8267 pounds.

Engine Power

Diesel (listed): 88 hp / 65.6 kW

Fuel & Capacities

31.7 gal 120.0 L

Transmission

20 forward and 5 reverse

Operating Weight

7054 to 8267 pounds

Overview

	1982 - 1984 Row-Crop tractor

Production
Manufacturer	SAME
Row-Crop tractor

SAME Leopard 90 Turbo Engine
SAME 4.2L 4-cyl diesel
Fuel tank	31.7 gal 120.0 L
Engine details ...

SAME Leopard 90 Turbo Power
Engine	88 hp 65.6 kW

Mechanical
Two- or four-wheel drive
Differential lock	mechanical rear
Power steering
Hydraulic wet disc brakes
Trailer brakes	hydraulic OptOptional
Four-post ROPS. Cab optional with air-conditioning.

Hydraulics
Pressure	2490 psi 171.7 bar
Pump flow	9.25 gpm 35.0 lpm
	15.9 gpmOptOptional 60.2 lpm

Tractor hitch
Rear Type	II
Control	position and draft control
Rear lift	10486 lbs 4756 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	hydraulic wet disc
Rear PTO Type	540/1000 (1.375)
	540 (1.75)OptOptional

Dimensions & Tires
Wheelbase	93.1 inches 236 cm
Weight	7054 to 8267 pounds
Front tire	7.50-18
2WD Rear tire	16.9/14-34
Full dimensions and tires ...

Electrical
Charging system	alternator
Battery volts	12

References

Leopard 90 Turbo published in 1983, by SAME

Engine

Engine Detail — 253.5 ci / 4.2 L Diesel

Manufacturer	SAME 1054 PT
Configuration	turbocharged diesel, 4-cylinder, air-cooled
Displacement	253.5 ci 4.2 L
Bore/Stroke	4.13x4.72 inches 105 x 120 mm
Power	88 hp 65.6 kW
Fuel system	direct injection
Air cleaner	dry
Compression	15.5:1
Rated RPM	2270
Starter	electric
Starter volts	12

Transmission

Transmission options
12-speed synchronized
20-speed creeper

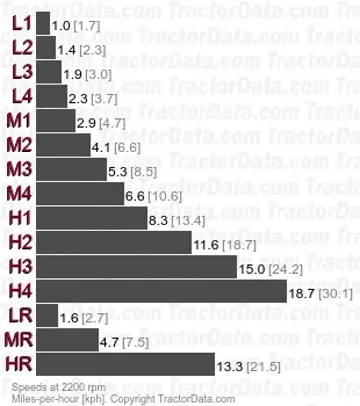

Transmission — 12 forward and 3 reverse synchronized

Type	synchronized
Gears	12 forward and 3 reverse
Clutch	dry disc
Four gears, plus reverse, in three ranges.
With 16.9/14-34 rear tires and 30 kph transmission.

Transmission
Type	creeper
Gears	20 forward and 5 reverse
With 16.9/14-34 rear tires and 30 kph transmission.

Dimensions

SAME Leopard 90 Turbo Tires
2WD Standard tires (ag)	Front: 7.50-18. Rear: 16.9/14-34
4WD Standard tires (ag)	Front: 14.9/13-24. Rear: 16.9/14-34
2WD Optional tires (ag)	Front: 7.50-20. Rear: 16.9/14-34
2WD Optional tires (ag)	Front: 7.50-16. Rear: 16.9/14-30
2WD Optional tires (ag)	Front: 7.50-18. Rear: 18.4/15-30
2WD Optional tires (ag)	Front: 7.50-18. Rear: 13.6/12-38
2WD Optional tires (ag)	Front: 7.50-20. Rear: 18.4/15-34
2WD Optional tires (ag)	Front: 9.00-16. Rear: 18.4/15-34
4WD. Rear: Optional tires (ag)	Front: 13.6/12-24
4WD Optional tires (ag)	Front: 13.6/12-24. Rear: 18.4/15-30
4WD Optional tires (ag)	Front: 12.4/11-28. Rear: 13.6/12-38
4WD Optional tires (ag)	Front: 16.9/14-24. Rear: 18.4/15-30
4WD Optional tires (ag)	Front: 13.6/12-24. Rear: 18.4/15-34

Dimensions
Wheelbase	93.1 inches 236 cm
2WD Length	143.7 inches 364 cm
4WD Length	148.4 inches 376 cm
Width	77.1 inches*Minimum width. 195 cm
Ground clearance	16.3 inches 41 cm
2WD Front tread	62.9 to 86.6 inches 159 to 219 cm
4WD Front tread	59.8 to 70.8 inches 151 to 179 cm
Rear tread	60.2 to 83.8 inches 152 to 212 cm

SAME Leopard 90 Turbo Weight
2WD ROPS	7054 lbs 3199 kg
2WD Cab	7605 lbs 3449 kg
4WD ROPS	7716 lbs 3499 kg
4WD Cab	8267 lbs 3749 kg

SAME Leopard 90 Turbo Height
Hood	61.8 inches 156 cm
ROPS	104.3 inches 264 cm
Cab	107.6 inches 273 cm

Photos

SAME Leopard 90 Turbo tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Same Leopard 90 Turbo based on its 88 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	3 to 4 Bottom (16")3 - 4 铧 (40 cm)	Heavy Duty	Suitable for medium loam and stubble turnover.
Rotary Cutter / MowerMowing & Clearing	7 to 8 ft (84-96 in)2.1 - 2.4 m	Heavy Duty	Heavy-duty twin spindle cutter for overgrown acreage.
Rotary TillerSeedbed Prep	78 to 84 in200 - 215 cm	Heavy Duty	Heavy commercial tiller with multi-speed gearbox.
Disc HarrowSecondary Tillage	10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙	Heavy Duty	Aggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage	4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机	Heavy Duty	Silage and dry hay; 540 RPM PTO with slip-clutch.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Same Leopard 90 Turbo.

Estimated Continuous Field Runtime: 6.9 hrs

Approximately 6.9 hours of continuous field operation at ~75% rated power on a full tank (31.7 gal / 120 L).

Estimated 75% Load Fuel Burn~4.6 gal/hr (17.3 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
