SAME Minitaurus 60

The SAME Minitaurus 60 is a tractor produced by Same. It is equipped with a 190.2 ci 3.1 L engine. The listed engine power is Diesel (listed): 59 hp / 44.0 kW. Transmission: 14 forward and 7 reverse. Operating weight: 4820 to 5240 pounds.

Engine Power

Diesel (listed): 59 hp / 44.0 kW

Fuel & Capacities

15.9 gal 60.2 L

Transmission

14 forward and 7 reverse

Operating Weight

4820 to 5240 pounds

Overview

	1979 - 1986 Utility tractor

Production
Manufacturer	SAME
Utility tractor

SAME Minitaurus 60 Engine
SAME 3.1L 3-cyl diesel
Fuel tank	15.9 gal 60.2 L
Engine details ...

SAME Minitaurus 60 Power
Engine	59 hp 44.0 kW

Mechanical
Two- or four-wheel drive
Differential lock	mechanical rear
Manual steering
Disc brakes
Four-post ROPS.

Hydraulics
Pump flow	6.3 gpm 23.8 lpm

Tractor hitch
Rear Type	II
Control	position and draft control
Rear lift	4320 lbs 1959 kg

Power Take-off (PTO)
Rear PTO	live
Rear PTO Type	540
	540/1000

Dimensions & Tires
2WD Wheelbase	84.3 inches 214 cm
4WD Wheelbase	83.1 inches 211 cm
Weight	4820 to 5240 pounds
Front tire	7.50-16
2WD Rear tire	14.9-30
Full dimensions and tires ...

Electrical
Charging system	generator
Watts (rated)	460
Battery volts	12
Battery AH	110

References

Minitaurus 60 published in 1981, by SAME
Minitaurus 60 published in 1985, by SAME

Engine

Engine Detail — 190.2 ci / 3.1 L Diesel

Manufacturer	SAME 1053
Fuel Type	Diesel
Configuration	3-cylinder, air-cooled
Displacement	190.2 ci 3.1 L
Bore/Stroke	4.13x4.72 inches 105 x 120 mm
Power	59 hp 44.0 kW
Fuel system	direct injection
Air cleaner	dry
Compression	17:1
Rated RPM	2200
Starter	electric
Starter volts	12

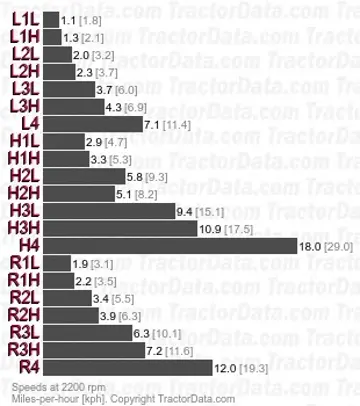

Transmission

Transmission options
14-speed synchronized
14-speed creeper

Transmission — 14 forward and 7 reverse synchronized

Type	synchronized
Gears	14 forward and 7 reverse
Clutch	dry disc
Four gears in two ranges, plus reverse range, two-speed splitter in gears 1-3.
With 14.9-30 rear tires.

Transmission
Type	creeper
Gears	14 forward and 7 reverse

Dimensions

SAME Minitaurus 60 Tires
2WD Standard tires (ag)	Front: 7.50-16. Rear: 14.9-30
4WD Standard tires (ag)	Front: 11.2-24. Rear: 14.9-30

Dimensions
2WD Wheelbase	84.3 inches 214 cm
4WD Wheelbase	83.1 inches 211 cm
2WD Length	129.1 inches 327 cm
4WD Length	131.9 inches 335 cm
Width	69.9 inches 177 cm
Height (hood)	54.3 inches 137 cm
Height (ROPS)	90.9 inches 230 cm
2WD Weight	4820 lbs 2186 kg
4WD Weight	5240 lbs 2376 kg
2WD Ground clearance	16.5 inches 41 cm
4WD Ground clearance	15.7 inches 39 cm
2WD Front tread	55.1 to 74.8 inches 139 to 189 cm
4WD Front tread	57.1 to 72.4 inches 145 to 183 cm
Rear tread	55.1 to 74.8 inches 139 to 189 cm

Photos

SAME Minitaurus 60

Recommended Implements & Sizing Guide

Engineering recommendations for Same Minitaurus 60 based on its 59 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	3 to 4 Bottom (16")3 - 4 铧 (40 cm)	Heavy Duty	Suitable for medium loam and stubble turnover.
Rotary Cutter / MowerMowing & Clearing	6 ft (72 in)1.8 m	Medium Duty	Medium pasture clearing; rear slip-clutch recommended.
Rotary TillerSeedbed Prep	66 to 72 in165 - 180 cm	Medium Duty	Standard utility tiller; slip clutch protection required.
Disc HarrowSecondary Tillage	7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙	Medium Duty	Field leveling and clod breaking behind plows.
Hay BalerHay & Forage	Small Square Baler (14x18")小方捆打捆机 (36x46 cm)	Medium Duty	Classic 2-string baler for horse and small livestock hay.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Same Minitaurus 60.

Estimated Continuous Field Runtime: 5.2 hrs

Approximately 5.2 hours of continuous field operation at ~75% rated power on a full tank (15.9 gal / 60.2 L).

Estimated 75% Load Fuel Burn~3.1 gal/hr (11.6 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
