SAME Row Crop 100.6
The SAME Row Crop 100.6 is a tractor produced by Same. It is equipped with a 366 ci 6.0 L engine. Transmission: 20 forward and reverse. Operating weight: 10141 to 11023 pounds.
Fuel & Capacities
37 gal
140.0 L
Transmission
20 forward and reverse
Operating Weight
10141 to 11023 pounds
Same Row Crop 100.6 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | Row Crop SeriesHigh-Clearance tractor |
|---|---|
Row Crop Series | |
High-Clearance tractor | |
Production | |
|---|---|
Manufacturer | SAME |
High-Clearance tractor | |
SAME Row Crop 100.6 Engine | |
|---|---|
SAME 6.0L 6-cyl diesel | |
Fuel tank | 37 gal
140.0 L |
Engine details ...  | |
SAME Row Crop 100.6 Transmission | |
|---|---|
20-speed synchronized | |
Transmission details ...  |
SAME Row Crop 100.6 Power | |
|---|---|
PTO (claimed) | 93 hp
69.4 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Differential lock | mechanical |
Power steering | |
Hydraulic wet disc brakes | |
Two-post ROPS. Cab optional with air-conditioning. | |
Hydraulics | |
|---|---|
Valves | 2 to 4 |
Pump flow | 15.8 gpm
59.8 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift | 8591 lbs
3896 kg |
9565 lbsOptOptional
4338 kg | |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | wet disc |
Rear PTO Type | 540/1000 (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 105.6 inches
268 cm |
Weight | 10141 to 11023 pounds |
Front tire | 7.50-20 |
2WD Rear tire | 13.6R38 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 366 ci / 6.0 L Diesel
Manufacturer | SAME 1000.6A |
Fuel Type | Diesel |
Configuration | 6-cylinder, air-cooled |
Displacement | 366 ci
6.0 L |
Air cleaner | dry |
Rated RPM | 2500 |
Starter | electric |
Starter volts | 12 |

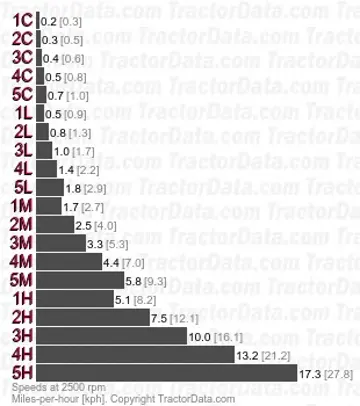

Transmission
Transmission — 20 forward and reverse synchronized
Type | synchronized |
Gears | 20 forward and reverse |
Clutch | hydraulic dry disc |
Five synchronized gears in four ranges with shuttle. | |
With 13.6R38 tires. Reverse speeds are about 5% slower than forward. | |
 | |
Dimensions
SAME Row Crop 100.6 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 7.50-20. Rear: 13.6R38 |
4WD Standard tires (ag) | Front: 13.6-38. Rear: 13.6R38 |
4WD Standard tires (ag) | Front: 12.4-46. Rear: 12.4R46 |
Dimensions | |
|---|---|
Wheelbase | 105.6 inches
268 cm |
Length | 181.5 inches
461 cm |
Width | 85.5 inches*Minimum width
217 cm |
Height (hood) | 75.1 inches
190 cm |
Height (ROPS) | 113.2 inches
287 cm |
ROPS Weight | 10141 lbs
4599 kg |
Cab Weight | 11023 lbs
5000 kg |
Ground clearance | 22.7 inches
57 cm |
Front tread | 60.7 to 84.4 inches
154 to 214 cm |
Rear tread | 56.7 to 88.5 inches
144 to 224 cm |
Photos
SAME Row Crop 100.6 tractor photo
