SAME Row Crop 85

The SAME Row Crop 85 is a tractor produced by Same. It is equipped with a 253.5 ci 4.2 L engine. The rated power output is 83 hp 61.9 kW. Transmission: 12 forward and reverse. Operating weight: 6796 to 7519 pounds.

Engine Power
83 hp 61.9 kW
Fuel & Capacities
21.1 gal 79.9 L
Transmission
12 forward and reverse
Operating Weight
6796 to 7519 pounds

Same Row Crop 85 Serial Number & Year Decoder

Find the exact manufacture year of your tractor by checking your chassis serial number below.

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.

Overview

SAME Row Crop 85 tractor photo
Row Crop SeriesHigh-Clearance tractor
Row Crop Series
High-Clearance tractor
Production
Manufacturer
SAME
High-Clearance tractor
SAME Row Crop 85 Engine
SAME 4.2L 4-cyl diesel
Fuel tank
21.1 gal 79.9 L
Engine details ...
SAME Row Crop 85 Transmission
12-speed synchronized
Transmission details ...
SAME Row Crop 85 Power
Engine
83 hp 61.9 kW
Mechanical
Two- or four-wheel drive
Differential lock
mechanical
Power steering
Hydraulic wet disc brakes
Four-post ROPS.
Hydraulics
Type
open center
Pump flow
20 gpm 75.7 lpm
Tractor hitch
Rear Type
II
Control
position, float and lower-link draft sensing
Rear lift
8300 lbs 3764 kg
Power Take-off (PTO)
Rear PTO
live
Rear PTO Type
540/1000 (1.375)
Dimensions & Tires
2WD Wheelbase
92.9 inches 235 cm
4WD Wheelbase
92.1 inches 233 cm
Weight
6796 to 7519 pounds
Front tire
7.50-20
2WD Rear tire
13.6/12-38
Full dimensions and tires ...

Engine

Engine Detail — 253.5 ci / 4.2 L Diesel

Manufacturer
SAME 1054P
Fuel Type
Diesel
Configuration
4-cylinder, air-cooled inline
Displacement
253.5 ci 4.2 L
Bore/Stroke
4.134x4.724 inches 105 x 120 mm
Power
83 hp 61.9 kW
Fuel system
direct-injection
Air cleaner
dry
Compression
17:1
Rated RPM
2300
Starter
electric
Starter volts
12

Transmission

Transmission — 12 forward and reverse synchronized

Type
synchronized
Gears
12 forward and reverse
Four synchronized gears in three ranges with shuttle.
With 13.6/12-38 tires. Reverse speeds are about 20% slower than forward.

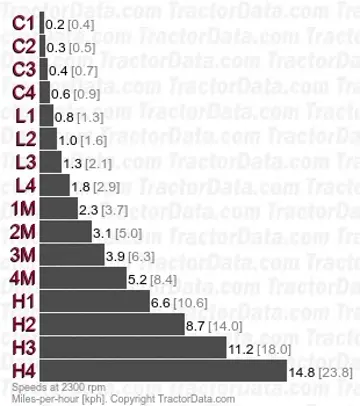

Row Crop 85 synchronized speeds

Dimensions

SAME Row Crop 85 Tires
2WD Standard tires (ag)
Front: 7.50-20. Rear: 13.6/12-38
4WD Standard tires (ag)
Front: 13.6/12-38. Rear: 13.6-12/38
Dimensions
2WD Wheelbase
92.9 inches 235 cm
4WD Wheelbase
92.1 inches 233 cm
2WD Length
155.5 inches 394 cm
4WD Length
154.3 inches 391 cm
Width
85.3 inches*Minimum width 216 cm
2WD Shipping weight
6796 lbs 3082 kg
4WD Shipping weight
7519 lbs 3410 kg
2WD Clearance (front axle)
28 inches 71 cm
4WD Clearance (front axle)
24.8 inches 62 cm
2WD Front tread
59.8 to 80.3 inches 151 to 203 cm
4WD Front tread
72.1 to 80.3 inches 183 to 203 cm
2WD Rear tread
59.8 to 80.3 inches 151 to 203 cm
4WD Rear tread
72.1 to 80.3 inches 183 to 203 cm
SAME Row Crop 85 Height
2WD Hood
65 inches 165 cm
4WD Hood
62.2 inches 157 cm
ROPS
104.7 inches 265 cm
