SAME Row Crop 90
The SAME Row Crop 90 is a tractor produced by Same. It is equipped with a 244.1 ci 4.0 L engine. The rated power output is 88 hp 65.6 kW. Transmission: 20 forward and reverse. Operating weight: 7501 lbs 3402 kg.
Engine Power
88 hp
65.6 kW
Fuel & Capacities
24 gal
90.8 L
Transmission
20 forward and reverse
Operating Weight
7501 lbs
3402 kg
Same Row Crop 90 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | Row Crop SeriesHigh-Clearance tractor |
|---|---|
Row Crop Series | |
High-Clearance tractor | |
Production | |
|---|---|
Manufacturer | SAME |
High-Clearance tractor | |
SAME Row Crop 90 Engine | |
|---|---|
SAME 4.0L 4-cyl diesel | |
Fuel tank | 24 gal
90.8 L |
Engine details ...  | |
SAME Row Crop 90 Transmission | |
|---|---|
20-speed synchronized | |
Transmission details ...  |
SAME Row Crop 90 Power | |
|---|---|
Engine | 88 hp
65.6 kW |
PTO (claimed) | 81 hp
60.4 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Final drives | inboard planetary |
Differential lock | mechanical |
Power steering | |
Hydraulic wet disc brakes | |
Four-post ROPS. | |
Hydraulics | |
|---|---|
Valves | 2 |
Pump flow | 15.8 gpm
59.8 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position, float, and draft control |
Rear lift | 6473 lbs
2936 kg |
8900 lbsOptOptional
4037 kg | |
Power Take-off (PTO) | |
|---|---|
Rear PTO | live |
Rear PTO Type | 540/1000 (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 90.6 inches
230 cm |
Weight | 7501 lbs
3402 kg |
Front tire | 7.50-20 |
2WD Rear tire | 13.6R38 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
SAME Tractors that are true specialists published by AGCO |
Engine
Engine Detail — 244.1 ci / 4.0 L Diesel
Manufacturer | SAME 1000.4 AT |
Configuration | turbocharged diesel, 4-cylinder, air-cooled |
Displacement | 244.1 ci
4.0 L |
Bore/Stroke | 4.13x4.54 inches
105 x 115 mm |
Power | 88 hp
65.6 kW |
Air cleaner | dry |
Rated RPM | 2500 |
Starter | electric |
Starter volts | 12 |
Transmission

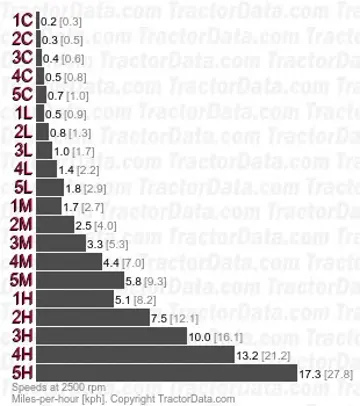

Transmission — 20 forward and reverse synchronized
Type | synchronized |
Gears | 20 forward and reverse |
Clutch | hydraulic dry disc |
Five synchronized gears in four ranges with shuttle. | |
With 13.6R38 tires. Reverse speeds are about 5% slower than forward. | |
 | |
Dimensions
SAME Row Crop 90 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 7.50-20. Rear: 13.6R38 |
4WD Standard tires (ag) | Front: 13.6R38. Rear: 13.6R38 |
Dimensions | |
|---|---|
Wheelbase | 90.6 inches
230 cm |
Length | 169.4 inches
430 cm |
Width | 85.9 inches*Minimum width
218 cm |
Height (ROPS) | 101.2 inches
257 cm |
Weight | 7501 lbs
3402 kg |
Clearance (front axle) | 23.8 inches
60 cm |
Front tread | 71.2 to 100.7 inches
180 to 255 cm |
Rear tread | 63.3 to 92.7 inches
160 to 235 cm |
Photos
1974 SAME Row Crop 90 high-clearance tractor.
