SAME Solar 60

The SAME Solar 60 is a tractor produced by Same. It is equipped with a 190.1 ci 3.1 L engine. The rated power output is 59 hp 44.0 kW. Transmission: 16 forward and 4 reverse. Operating weight: 4586 to 5203 pounds.

Overview

	1986 - 1997 Solar SeriesUtility tractor
1986 - 1997
Solar Series
Utility tractor

Production
Manufacturer	SAME
Utility tractor

Variants
660	similar Lamborghini model
H-361	similar Hurlimann model
4660	similar AGCO Allis model

SAME Solar 60 Engine
SAME 3.1L 3-cyl diesel
Fuel tank	14.5 gal 54.9 L
Engine details ...

SAME Solar 60 Power
Engine	59 hp 44.0 kW

Mechanical
Two- or four-wheel drive
Steering	manual
Steering	power OptOptional
Mechanical wet disc brakes
Four-post ROPS.

Hydraulics
Pressure	2611 psi 180.0 bar
Pump flow	8.5 gpm 32.2 lpm

Tractor hitch
Rear Type	II
Rear lift	6548 lbs 2970 kg

Power Take-off (PTO)
Rear PTO	live
Rear PTO Type	540 (1.375)
	540/1000 (1.375)

Dimensions & Tires
2WD Wheelbase	82.3 inches 209 cm
4WD Wheelbase	81.3 inches 206 cm
Weight	4586 to 5203 pounds
Front tire	7.50-16
2WD Rear tire	14.9/13-28
Full dimensions and tires ...

Electrical
Charging system	alternator
Battery volts	12

References
Solar 60 published in 1986, by SAME
Solar 60 published in 1991, by SAME

Engine

Engine Detail — 190.1 ci / 3.1 L Diesel

Manufacturer	SAME 1053 P
Fuel Type	Diesel
Configuration	3-cylinder, air-cooled
Displacement	190.1 ci 3.1 L
Bore/Stroke	4.134x4.72 inches 105 x 120 mm
Power	59 hp 44.0 kW
Rated RPM	2200
Starter volts	12

Transmission

Transmission options
12-speed synchronized
16-speed creeper

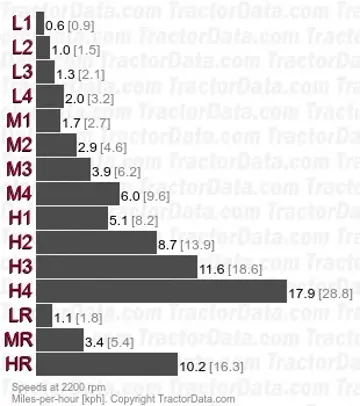

Transmission — 12 forward and 3 reverse synchronized

Type	synchronized
Gears	12 forward and 3 reverse
Clutch	dry disc
With 14.9/13-28 rear tires.
Transmission
Type	creeper
Gears	16 forward and 4 reverse

Dimensions

SAME Solar 60 Tires
2WD Standard tires (ag)	Front: 7.50-16. Rear: 14.9/13-28
4WD Standard tires (ag)	Front: 11.2/10-20. Rear: 14.9/13-28
2WD Optional tires (ag)	Front: 6.50-16. Rear: 13.6/12-28
2WD Optional tires (ag)	Front: 7.50-16. Rear: 14.9/13-30
2WD Optional tires (ag)	Front: 6.00-19. Rear: 12.4/11-32
2WD Optional tires (ag)	Front: 6.50-20. Rear: 12.4/11-36
4WD Optional tires (ag)	Front: 9.5/9-20. Rear: 13.6/12-28
4WD Optional tires (ag)	Front: 9.5./9-24. Rear: 14.9/13-30
4WD Optional tires (ag)	Front: 8.3/8-24. Rear: 12.4/11-32
4WD Optional tires (ag)	Front: 9.5/9-24. Rear: 12.4/11-36

Dimensions
2WD Wheelbase	82.3 inches 209 cm
4WD Wheelbase	81.3 inches 206 cm
Length	125 inches (without hitch) 317 cm
	133.3 inches (with hitch) 338 cm
Width	66.9 inches*Minimum width 169 cm
2WD Weight	4586 lbs 2080 kg
4WD Weight	5203 lbs 2360 kg
2WD Ground clearance	18.5 inches 46 cm
4WD Ground clearance	13.8 inches 35 cm
2WD Front tread	48.4 to 64.2 inches 122 to 163 cm
4WD Front tread	53..5 to 61.4 inches 134 to 155 cm
Rear tread	53.5 to 73.2 inches 135 to 185 cm

SAME Solar 60 Height
2WD Hood	52 inches 132 cm
4WD Hood	51.2 inches 130 cm
ROPS	90.9 inches 230 cm

Photos

SAME Solar 60 tractor photo
