SAME Tiger 65
The SAME Tiger 65 is a tractor produced by Same. It is equipped with a 183.1 ci 3.0 L engine. The listed engine power is Diesel (net): 59 hp / 44.0 kW; Diesel (gross): 62 hp / 46.2 kW. Transmission: 12 forward and 3 reverse. Drive type: 4x2 2WD. Operating weight: 4,762 lbs (2WD) 2160 kg.
Engine Power
Diesel (net): 59 hp / 44.0 kW; Diesel (gross): 62 hp / 46.2 kW
Drive & Traction
4x2 2WD
Fuel & Capacities
18.5 gal
70.0 L
Transmission
12 forward and 3 reverse
Operating Weight
4,762 lbs (2WD)
2160 kg
Overview
 | 2008 - ????
Utility tractor |
|---|---|
2008 - ???? | |
Utility tractor | |
2008 - ???? | |
|---|---|
Utility tractor |
Series map: Tiger 65Tiger 7546.2kw53.7kw
Note: the SAME model Tiger 65 is the same as the Lamborghini Rekord 65. The following data is from the Rekord 65 listing. |
Production | |
|---|---|
Manufacturer | SAME |
Utility tractor | |
Built in Turkey | |
Variants | |
|---|---|
Rekord 65 | similar Lamborghini model |
Agrolux 65 | similar Deutz-Fahr model |
Tiger 65 | similar SAME model |
SAME Tiger 65 Engine | |
|---|---|
SAME 3.0L 3-cyl diesel | |
Fuel tank | 18.5 gal
70.0 L |
Engine details ...  | |
SAME Tiger 65 Transmission | |
|---|---|
12-speed partially synchronized | |
Transmission details ...  |
SAME Tiger 65 Power | |
|---|---|
Engine (gross) | 62 hp
46.2 kW |
Engine (net) | 59 hp
44.0 kW |
Mechanical | |
|---|---|
Drive | 4x2 2WD |
4x4 MFWD 4WD (optional) | |
Differential lock | mechanical front and rear |
Steering | hydrostatic power |
Hydraulic brakes | |
Two-post foldable ROPS. Canopy avaailable. | |
Hydraulics | |
|---|---|
Type | open center |
Valves | 2 to 4 |
Pump flow | 8.7 gpm
32.9 lpm |
Steering flow | 4.5 gpm
17.0 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift (at ends) | 6,614 lbs
3000 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | dry mechanical |
Rear PTO Type | 540/540E (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 80.2 inches (2WD)
203 cm |
77.8 inches (4WD)
197 cm | |
Weight | 4762 to 5335 pounds |
Rear tire | 16.9R30 |
Full dimensions and tires ...  | |
Engine
| 2008 - ????
Utility tractor |
|---|---|
2008 - ???? | |
Utility tractor | |
2008 - ???? | |
|---|---|
Utility tractor |
Series map: Tiger 65Tiger 7546.2kw53.7kw
Note: the SAME model Tiger 65 is the same as the Lamborghini Rekord 65. The following data is from the Rekord 65 listing. |
Engine Detail — 183.1 ci / 3.0 L Diesel
Manufacturer | SAME 1000.3 |
Configuration | turbocharged diesel, 3-cylinder, liquid-cooled |
Displacement | 183.1 ci
3.0 L |
Bore/Stroke | 4.13x4.56 inches
105 x 116 mm |
Emissions | Tier III |
Rated Power (net) | 59 hp
44.0 kW |
Rated Power (gross) | 62 hp
46.2 kW |
Air cleaner | dry with safety cartridge |
Rated RPM | 2200 |
Idle RPM | 750-2350 |
Torque | 177 lb-ft
240.0 Nm |
Torque RPM | 1600 |
Starter volts | 12 |
Oil capacity | 6.1 qts
5.8 L |
Transmission
| 2008 - ????
Utility tractor |
|---|---|
2008 - ???? | |
Utility tractor | |
2008 - ???? | |
|---|---|
Utility tractor |
Series map: Tiger 65Tiger 7546.2kw53.7kw
Note: the SAME model Tiger 65 is the same as the Lamborghini Rekord 65. The following data is from the Rekord 65 listing. |

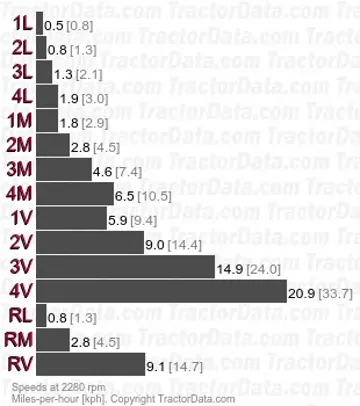

Transmission — 12 forward and 3 reverse partially synchronized
Type | partially synchronized |
Gears | 12 forward and 3 reverse |
Clutch | single dry disc |
Four gears (1-4) plus reverse (R) in three ranges (L/M/V). Gear shifts in range are synchronized. | |
With 16.9R30 rear tires. | |
 | |
Dimensions
| 2008 - ????
Utility tractor |
|---|---|
2008 - ???? | |
Utility tractor | |
2008 - ???? | |
|---|---|
Utility tractor |
Series map: Tiger 65Tiger 7546.2kw53.7kw
Note: the SAME model Tiger 65 is the same as the Lamborghini Rekord 65. The following data is from the Rekord 65 listing. |
SAME Tiger 65 Tires | |
|---|---|
Ag rear | 16.9R30 |
Dimensions | |
|---|---|
Wheelbase | 80.2 inches (2WD)
203 cm |
77.8 inches (4WD)
197 cm | |
Length | 130.5 inches
331 cm |
Width | 77.5 inches
196 cm |
Height (steering wheel) | 60.8 inches
154 cm |
Height (hood) | 59.3 inches
150 cm |
Weight | 4,762 lbs (2WD)
2160 kg |
5,335 lbs (4WD)
2419 kg | |
Ground clearance | 15.8 inches
40 cm |
Front tread | 68.5 inches
173 cm (2WD) |
Front tread | 68.9 inches
175 cm (4WD) |
Rear tread | 72.4 inches
183 cm |
Photos
SAME Tiger 65 tractor photo
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Same Tiger 65.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Same Tiger 65 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Same Tiger 65.
Converted Equivalents:
Horsepower (HP)0 hp
Kilowatts (kW)0 kW
Metric Horsepower (PS / CV)0 PS
