Scotts 42502X

The Scotts 42502X is a tractor produced by Scotts Lawn Tractors. The listed engine power is Gasoline (listed): 17 hp / 12.7 kW. Transmission: Peerless MST206-502.

Engine Power
Gasoline (listed): 17 hp / 12.7 kW
Fuel & Capacities
Gasoline
Transmission
Peerless MST206-502

Overview

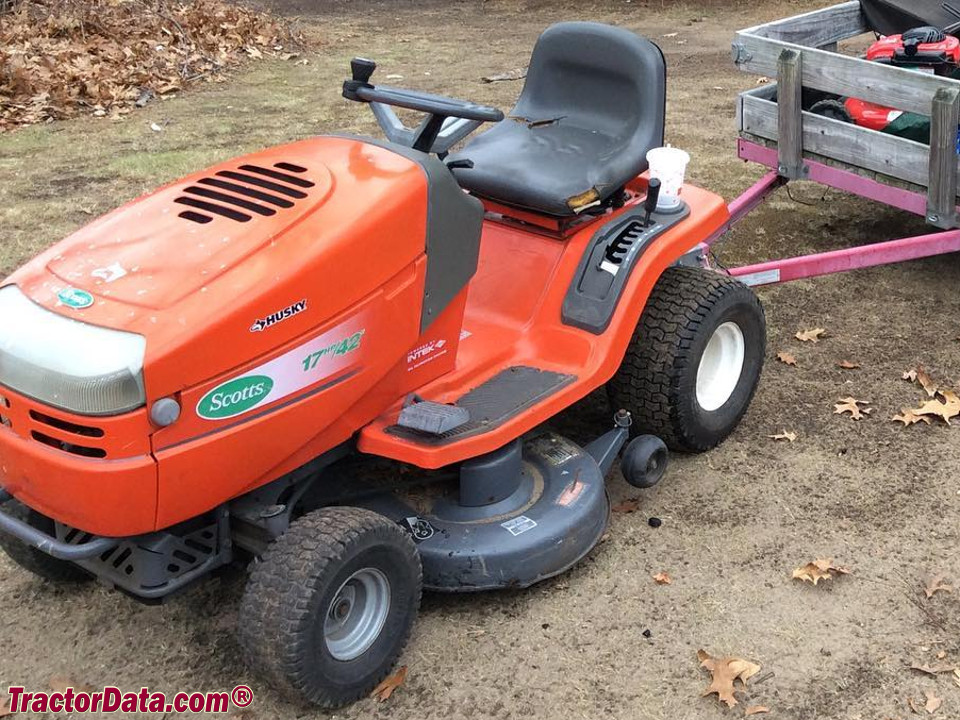

Scotts 42502X tractor photo
1998 Lawn tractorMurray built Lawn tractor Murray built
Production
Distributor
Scotts
Manufacturer
Murray
Lawn tractor
Built in Jackson, Tennessee, USA
Original price was $1,398 in 1998
Scotts 42502X Engine
17HP Briggs & Stratton gasoline
Engine details ...
Scotts 42502X Transmission
6-speed gear
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Open operator station.
Power Take-off (PTO)
Mid PTO
independent
Clutch
mechanical
Dimensions & Tires
Front tire
15x6-6
Rear tire
20x10-8
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12

Engine

Engine Detail — Gasoline

Manufacturer
Briggs & Stratton Intek
Fuel Type
Gasoline
Configuration
air-cooled vertical-shaft
Power
17 hp 12.7 kW
Starter
electric
Starter volts
12

Transmission

Transmission — Peerless MST206-502

Transmission
Peerless MST206-502
Type
belt-driven gear
Gears
6 forward and 1 reverse

Dimensions

Scotts 42502X Tires
Lawn/turf front
15x6-6
Lawn/turf rear
20x10-8
Dimensions

Attachments

Attachment overview
42" mid-mount mower deck
Snowblower
Blade
42" Mower deck
Type
mid-mount Scotts
2-blade
Cutting width
42 inches 106 cm

Photos

Scotts 42502X

Scotts 42502X

Recommended Implements & Sizing Guide

Engineering recommendations for Scotts Lawn Tractors Scotts 42502X based on its 17 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
4 ft (48 in)1.2 mLight DutyPasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep
42 to 48 in105 - 120 cmLight DutyCovers compact tractor tire width.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Scotts Lawn Tractors Scotts 42502X.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Scotts Lawn Tractors Scotts 42502X Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Scotts Lawn Tractors Scotts 42502X.

Converted Equivalents:

Horsepower (HP)17 hp
Kilowatts (kW)12.7 kW
Metric Horsepower (PS / CV)17.2 PS

Direct Competitor Comparison

Compare Scotts 42502X against same-era industry alternatives in the same horsepower class.

Current Model
Scotts Lawn Tractors

Scotts 42502X

Engine Power:Gasoline (listed): 17 hp / 12.7 kW
★ Baseline Reference
FordMarket Competitor

Ford 1200

Engine Power:15.3
Production Years:1979 - 1982
View Full Specs→
KubotaMarket Competitor

Kubota A-15

Engine Power:15.3
Production Years:1988 - 1992
View Full Specs→
International HarvesterMarket Competitor

International Harvester 154 Lo-Boy

Engine Power:15.6
Production Years:1968 - 1974
View Full Specs→
Massey FergusonMarket Competitor

Massey Ferguson 1205

Engine Power:15.7
Production Years:1997 - 2003
View Full Specs→
