Sears 625 502.25609
The Sears 625 502.25609 is a tractor produced by Sears Lawn Tractors. The listed engine power is Gasoline (listed): 6 hp / 4.5 kW. Transmission: 1 forward and reverse. Operating weight: 237 lbs 107 kg.
Engine Power
Gasoline (listed): 6 hp / 4.5 kW
Fuel & Capacities
0.5 gal
1.9 L
Transmission
1 forward and reverse
Operating Weight
237 lbs
107 kg
Overview
 | 1979
Riding lawn mowerMurray built
Riding lawn mower
Murray built |
|---|
Production | |
|---|---|
Distributor | Sears |
Manufacturer | Murray |
Riding lawn mower | |
Original price was $469 in 1979 | |
Sears 625 Engine | |
|---|---|
6HP 1-cyl gasoline | |
Fuel tank | 0.5 gal
1.9 L |
Engine details ...  | |
Sears 625 Transmission | |
|---|---|
1-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Weight | 237 lbs
107 kg |
Front tire | 10.0x3.5 |
Rear tire | 13.0x5.0 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Riding Mowers, Lawn Tractors, Garden Tractors and Attachments published in 1979, by Sears |
Engine
Engine Detail — Gasoline
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled |
Power | 6 hp
4.5 kW |
Starter type | manual recoil |
Transmission
Transmission — 1 forward and reverse belt-driven gear
Type | belt-driven gear |
Gears | 1 forward and reverse |
Dimensions
Sears 625 Tires | |
|---|---|
Lawn/turf front | 10.0x3.5 |
Lawn/turf rear | 13.0x5.0 |
Dimensions | |
|---|---|
Length | 54.5 inches
138 cm |
Width | 31.5 inches
80 cm |
Height | 36.5 inches
92 cm |
Shipping weight | 237 lbs
107 kg |
Attachments
25" Mower deck | |
|---|---|
Type | mid-mount Sears |
1-blade with manual lift | |
Cutting width | 25 inches
63 cm |
Overall width | 34.5 inches
87 cm |
Photos

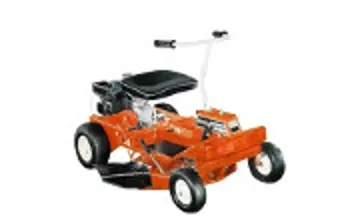

Sears 625 502.25609 tractor photo
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Sears Lawn Tractors Sears 625 502.25609.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Sears Lawn Tractors Sears 625 502.25609 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Sears Lawn Tractors Sears 625 502.25609.
Converted Equivalents:
Horsepower (HP)6 hp
Kilowatts (kW)4.5 kW
Metric Horsepower (PS / CV)6.1 PS
