Sears Custom 600 917.2509
The Sears Custom 600 917.2509 is a tractor produced by Sears Lawn Tractors. It is equipped with a 221 cc 13.53 ci engine. The listed engine power is Gasoline (listed): 6 hp / 4.5 kW. Transmission: 3 forward and 1 reverse.
Engine Power
Gasoline (listed): 6 hp / 4.5 kW
Fuel & Capacities
Gasoline
Transmission
3 forward and 1 reverse
Overview
 | 1966 - 1967
Lawn tractorRoper built
Lawn tractor
Roper built |
|---|
Production | |
|---|---|
Distributor | Sears |
Manufacturer | Roper |
Lawn tractor | |
Original price was $440 in 1966 | |
Models 917.25090 and 917.25091 had "Custom 600" decals while the model 917.25092 had "Custom 6HP" decals. | |
Sears Custom 600 Engine | |
|---|---|
6HP Tecumseh 221cc 1-cyl gasoline | |
Engine details ...  |
Sears Custom 600 Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Full dimensions and tires ...  |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 221 cc / 13.53 ci Gasoline
Manufacturer | Tecumseh H60 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled horizontal-shaft |
Displacement | 221 cc
13.53 ci |
Bore/Stroke | 2.625x2.50 inches
67 x 64 mm |
Power | 6 hp
4.5 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — 3 forward and 1 reverse belt-driven gear
Type | belt-driven gear |
Gears | 3 forward and 1 reverse |
Dimensions
Sears Custom 600 Tires |
|---|
Dimensions |
|---|
Attachments
36" Mower deck | |
|---|---|
Type | mid-mount Sears |
manual lift | |
Cutting width | 36 inches
91 cm |
Photos

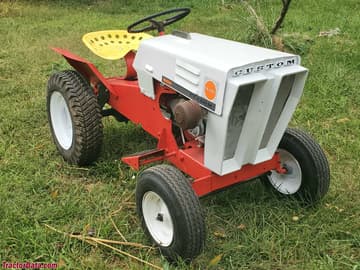

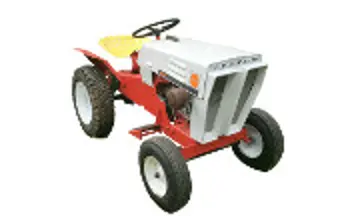

Sears Custom 600 917.2509
Sears Custom 600 917.2509
Sears Custom 600 917.2509
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Sears Lawn Tractors Sears Custom 600 917.2509.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Sears Lawn Tractors Sears Custom 600 917.2509 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Sears Lawn Tractors Sears Custom 600 917.2509.
Converted Equivalents:
Horsepower (HP)6 hp
Kilowatts (kW)4.5 kW
Metric Horsepower (PS / CV)6.1 PS
