Shibaura SE2500
The Shibaura SE2500 is a tractor produced by Shibaura. It is equipped with a 77.62 ci 1.3 L engine. The rated power output is 25 hp 18.6 kW. Transmission: 12 forward and 4 reverse. Operating weight: 2326 lbs 1055 kg.
Engine Power
25 hp
18.6 kW
Fuel & Capacities
5.8 gal
22.0 L
Transmission
12 forward and 4 reverse
Operating Weight
2326 lbs
1055 kg
Shibaura SE2500 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | SE SeriesCompact Utility tractor |
|---|---|
SE Series | |
Compact Utility tractor | |
Production | |
|---|---|
Manufacturer | Shibaura |
Compact Utility tractor | |
Variants | |
|---|---|
SE2500 | 2WD |
SE2540 | 4WD |
Shibaura SE2500 Engine | |
|---|---|
Shibaura 1.3L 2-cyl diesel | |
Engine details ...  |
Shibaura SE2500 Transmission | |
|---|---|
12-speed gear | |
Transmission details ...  |
Shibaura SE2500 Power | |
|---|---|
Engine | 25 hp
18.6 kW |
Drawbar (claimed) | 15.8 hp
11.8 kW |
PTO (claimed) | 21.7 hp
16.2 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Final drives | spur gear |
Manual steering | |
Mechanical drum brakes | |
Open operator station. Two-post ROPS available. | |
Capacity | |
|---|---|
Fuel | 5.8 gal
22.0 L |
Hydraulic system | 5.8 gal
22.0 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 5.8 gal
22.0 L |
Pressure | 2133 psi
147.1 bar |
Valves | 1 |
Pump flow | 5.3 gpm
20.1 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Rear lift (at ends) | 2425 lbs
1099 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | transmission |
Rear PTO Type | 540 (1.375) |
Engine RPM | 525@2500 |
674@2500 | |
856@2500 | |
1330@2500 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 60.2 inches
152 cm |
Weight | 2326 lbs
1055 kg |
Front tire | 5.00-15 |
Rear tire | 11.2-24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 20 |
Battery volts | 12 |
References | |
|---|---|
 | |
Specifications Model SE2500/2540 published by Shibaura |
Engine
Engine Detail — 77.62 ci / 1.3 L Diesel
Manufacturer | Shibaura LET 892 |
Fuel Type | Diesel |
Configuration | 2-cylinder, liquid-cooled |
Displacement | 77.62 ci
1.3 L |
Bore/Stroke | 3.54x3.94 inches
90 x 100 mm |
Power | 25 hp
18.6 kW |
Air cleaner | oil bath |
Compression | 21:1 |
Rated RPM | 2500 |
Operating RPM | 1250-2500 |
Torque | 55.3 lb-ft
75.0 Nm |
Torque RPM | 2000 |
Starter volts | 12 |
Oil capacity | 5.3 qts
5.0 L |
Coolant capacity | 5.6 qts
5.3 L |
Transmission

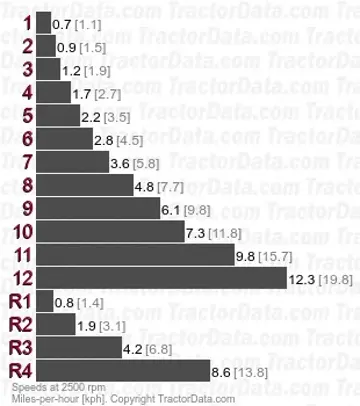

Transmission — 12 forward and 4 reverse gear
Type | gear |
Gears | 12 forward and 4 reverse |
Clutch | dry disc |
Oil capacity | 23.25 qts
22.0 L |
Three gears, plus reverse, in four ranges. | |
With 11.2-24 rear tires. | |
 | |
Dimensions
Shibaura SE2500 Tires | |
|---|---|
Ag front | 5.00-15 |
Ag rear | 11.2-24 |
Dimensions | |
|---|---|
Wheelbase | 60.2 inches
152 cm |
Length | 111.2 inches
282 cm |
Width | 59.3 inches
150 cm |
Height (steering wheel) | 55.7 inches
141 cm |
Height (hood) | 47.2 inches
119 cm |
Weight | 2326 lbs
1055 kg |
Max weight | 5732 lbs
2600 kg |
Ground clearance | 14.3 inches
36 cm |
Front tread | 43.5 to 57.5 inches
110 to 146 cm |
Rear tread | 43.3 to 58.7 inches
109 to 149 cm |
