Shibaura SE2540
The Shibaura SE2540 is a tractor produced by Shibaura. It is equipped with a 77.62 ci 1.3 L engine. The listed engine power is Diesel (listed): 25 hp / 18.6 kW. Transmission: 12 forward and 4 reverse. Operating weight: 2326 lbs 1055 kg.
Engine Power
Diesel (listed): 25 hp / 18.6 kW
Fuel & Capacities
5.8 gal
22.0 L
Transmission
12 forward and 4 reverse
Operating Weight
2326 lbs
1055 kg
Overview
 | SE SeriesCompact Utility tractor |
|---|---|
SE Series | |
Compact Utility tractor | |
Production | |
|---|---|
Manufacturer | Shibaura |
Compact Utility tractor | |
Variants | |
|---|---|
SE2500 | 2WD |
SE2540 | 4WD |
Shibaura SE2540 Engine | |
|---|---|
Shibaura 1.3L 2-cyl diesel | |
Engine details ...  |
Shibaura SE2540 Transmission | |
|---|---|
12-speed gear | |
Transmission details ...  |
Shibaura SE2540 Power | |
|---|---|
Engine | 25 hp
18.6 kW |
Drawbar (claimed) | 15.8 hp
11.8 kW |
PTO (claimed) | 21.7 hp
16.2 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Final drives | spur gear |
Manual steering | |
Mechanical drum brakes | |
Open operator station. Two-post ROPS available. | |
Capacity | |
|---|---|
Fuel | 5.8 gal
22.0 L |
Hydraulic system | 5.8 gal
22.0 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 5.8 gal
22.0 L |
Pressure | 2133 psi
147.1 bar |
Valves | 1 |
Pump flow | 5.3 gpm
20.1 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Rear lift (at ends) | 2425 lbs
1099 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | transmission |
Rear PTO Type | 540 (1.375) |
Engine RPM | 525@2500 |
674@2500 | |
856@2500 | |
1330@2500 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 60.2 inches
152 cm |
Weight | 2326 lbs
1055 kg |
Front tire | 6.00-16 |
Rear tire | 11.2-24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 20 |
Battery volts | 12 |
References | |
|---|---|
 | |
Specifications Model SE2500/2540 published by Shibaura |
Engine
Engine Detail — 77.62 ci / 1.3 L Diesel
Manufacturer | Shibaura LET 892 |
Fuel Type | Diesel |
Configuration | 2-cylinder, liquid-cooled |
Displacement | 77.62 ci
1.3 L |
Bore/Stroke | 3.54x3.94 inches
90 x 100 mm |
Power | 25 hp
18.6 kW |
Air cleaner | oil bath |
Compression | 21:1 |
Rated RPM | 2500 |
Operating RPM | 1250-2500 |
Torque | 55.3 lb-ft
75.0 Nm |
Torque RPM | 2000 |
Starter volts | 12 |
Oil capacity | 5.3 qts
5.0 L |
Coolant capacity | 5.6 qts
5.3 L |
Transmission

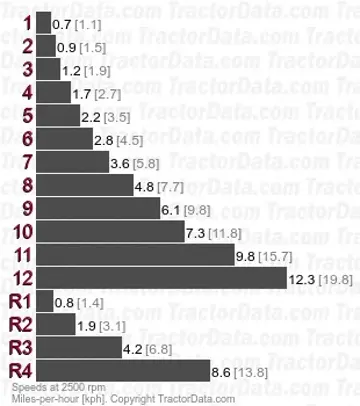

Transmission — 12 forward and 4 reverse gear
Type | gear |
Gears | 12 forward and 4 reverse |
Clutch | 316mm dry disc |
Oil capacity | 23.25 qts
22.0 L |
Three gears, plus reverse, in four ranges. | |
With 11.2-24 rear tires. | |
 | |
Dimensions
Shibaura SE2540 Tires | |
|---|---|
Ag front | 6.00-16 |
Ag rear | 11.2-24 |
Dimensions | |
|---|---|
Wheelbase | 60.2 inches
152 cm |
Length | 111.2 inches
282 cm |
Width | 59.3 inches
150 cm |
Height (steering wheel) | 55.7 inches
141 cm |
Height (hood) | 47.2 inches
119 cm |
Weight | 2326 lbs
1055 kg |
Max weight | 5732 lbs
2600 kg |
Ground clearance | 12.6 inches
32 cm |
Front tread | 44.5 inches
113 cm |
Rear tread | 43.3 to 56.7 inches
109 to 144 cm |
Photos
Shibaura SE2540
Recommended Implements & Sizing Guide
Engineering recommendations for Shibaura SE2540 based on its 25 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Shibaura SE2540.
Estimated Continuous Field Runtime: 4.5 hrs
Approximately 4.5 hours of continuous field operation at ~75% rated power on a full tank (5.8 gal / 22 L).
Estimated 75% Load Fuel Burn~1.3 gal/hr (4.9 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Shibaura SE2540 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Shibaura SE2540.
Converted Equivalents:
Horsepower (HP)25 hp
Kilowatts (kW)18.6 kW
Metric Horsepower (PS / CV)25.3 PS
