Shibaura SE8300
The Shibaura SE8300 is a tractor produced by Shibaura. It is equipped with a 278.3 ci 4.6 L engine. The rated power output is 83 hp 61.9 kW. Transmission: 16 forward and 4 reverse. Operating weight: 7260 lbs 3293 kg.
Engine Power
83 hp
61.9 kW
Fuel & Capacities
26.4 gal
99.9 L
Transmission
16 forward and 4 reverse
Operating Weight
7260 lbs
3293 kg
Shibaura SE8300 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | SE SeriesUtility tractor |
|---|---|
SE Series | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | Shibaura |
Utility tractor | |
Built in Matsumoto, Japan | |
Variants | |
|---|---|
SE8300 | 2WD |
SE8340 | 4WD |
Shibaura SE8300 Engine | |
|---|---|
Shibaura 4.6L 4-cyl diesel | |
Engine details ...  |
Shibaura SE8300 Transmission | |
|---|---|
16-speed constant mesh | |
Transmission details ...  |
Shibaura SE8300 Power | |
|---|---|
Engine | 83 hp
61.9 kW |
PTO (claimed) | 72 hp
53.7 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Two-post ROPS. Cab optional. |
Capacity | |
|---|---|
Fuel | 26.4 gal
99.9 L |
Hydraulic system | 6.6 gal
25.0 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 6.6 gal
25.0 L |
Valves | 1 to 3 |
Pump flow | 9.3 gpm
35.2 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position and draft control |
Rear lift (at ends) | 5512 lbs
2500 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 (1.375) |
Engine RPM | 540@2200 |
800@2200 | |
1000@2200 | |
Dimensions & Tires | |
|---|---|
Weight | 7260 lbs
3293 kg |
Front tire | 7.50x20 |
Rear tire | 18.4x30 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
SE5300 - SE6300 - SE7300T - SE8300 - SF1000T published in 1983, by Shibaura |
Engine
Engine Detail — 278.3 ci / 4.6 L Diesel
Manufacturer | Shibaura LEA1104 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 278.3 ci
4.6 L |
Bore/Stroke | 4.33x4.72 inches
110 x 120 mm |
Power | 83 hp
61.9 kW |
Compression | 17.1:1 |
Rated RPM | 2200 |
Operating RPM | 1500-2200 |
Torque | 202.8 lb-ft
275.0 Nm |
Torque RPM | 1500 |
Starter type | electric |
Transmission

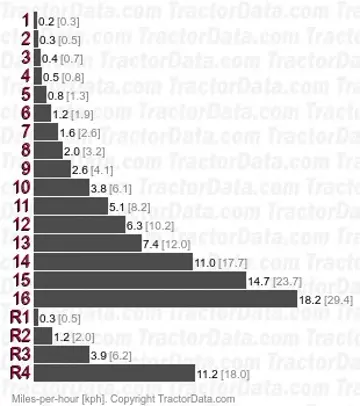

Transmission — 16 forward and 4 reverse constant mesh
Type | constant mesh |
Gears | 16 forward and 4 reverse |
Clutch | dry disc |
 | |
Dimensions
Shibaura SE8300 Tires | |
|---|---|
Ag front | 7.50x20 |
Ag rear | 18.4x30 |
Dimensions | |
|---|---|
Length | 153.9 inches
390 cm |
Width | 74.4 inches
188 cm |
Height | 107 inches
271 cm |
Height (steering wheel) | 70.5 inches
179 cm |
Weight | 7260 lbs
3293 kg |
Ground clearance | 16.7 inches
42 cm |
Front tread | 51.2 to 63 inches
130 to 160 cm |
Rear tread | 56.9 to 76.6 inches
144 to 194 cm |
