Shibaura SE8340
The Shibaura SE8340 is a tractor produced by Shibaura. It is equipped with a 278.3 ci 4.6 L engine. The listed engine power is Diesel (listed): 83 hp / 61.9 kW. Transmission: 16 forward and 4 reverse. Operating weight: 7800 lbs 3538 kg.
Engine Power
Diesel (listed): 83 hp / 61.9 kW
Fuel & Capacities
26.4 gal
99.9 L
Transmission
16 forward and 4 reverse
Operating Weight
7800 lbs
3538 kg
Overview
 | SE SeriesUtility tractor |
|---|---|
SE Series | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | Shibaura |
Utility tractor | |
Built in Matsumoto, Japan | |
Variants | |
|---|---|
SE8300 | 2WD |
SE8340 | 4WD |
Shibaura SE8340 Engine | |
|---|---|
Shibaura 4.6L 4-cyl diesel | |
Engine details ...  |
Shibaura SE8340 Transmission | |
|---|---|
16-speed constant mesh | |
Transmission details ...  |
Shibaura SE8340 Power | |
|---|---|
Engine | 83 hp
61.9 kW |
PTO (claimed) | 72 hp
53.7 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Mechanical wet disc brakes | |
Two-post ROPS. Cab optional. |
Capacity | |
|---|---|
Fuel | 26.4 gal
99.9 L |
Hydraulic system | 6.6 gal
25.0 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 6.6 gal
25.0 L |
Valves | 1 to 3 |
Pump flow | 9.3 gpm
35.2 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position and draft control |
Rear lift (at ends) | 5512 lbs
2500 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 (1.375) |
Engine RPM | 540@2200 |
800@2200 | |
1000@2200 | |
Dimensions & Tires | |
|---|---|
Weight | 7800 lbs
3538 kg |
Front tire | 11.2x24 |
Rear tire | 18.4x30 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
SE5300 - SE6300 - SE7300T - SE8300 - SF1000T published in 1983, by Shibaura |
Engine
Engine Detail — 278.3 ci / 4.6 L Diesel
Manufacturer | Shibaura LEA1104 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 278.3 ci
4.6 L |
Bore/Stroke | 4.33x4.72 inches
110 x 120 mm |
Power | 83 hp
61.9 kW |
Compression | 17.1:1 |
Rated RPM | 2200 |
Operating RPM | 1500-2200 |
Torque | 202.8 lb-ft
275.0 Nm |
Torque RPM | 1500 |
Starter type | electric |
Transmission

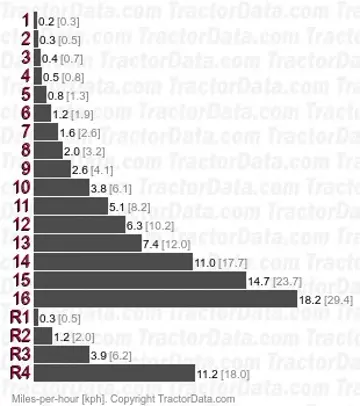

Transmission — 16 forward and 4 reverse constant mesh
Type | constant mesh |
Gears | 16 forward and 4 reverse |
Clutch | dry disc |
 | |
Dimensions
Shibaura SE8340 Tires | |
|---|---|
Ag front | 11.2x24 |
Ag rear | 18.4x30 |
Dimensions | |
|---|---|
Length | 153.9 inches
390 cm |
Width | 74.4 inches
188 cm |
Height | 107 inches
271 cm |
Height (steering wheel) | 70.5 inches
179 cm |
Weight | 7800 lbs
3538 kg |
Max weight | 16000 lbs
7257 kg |
Ground clearance | 15.5 inches
39 cm |
Front tread | 57 to 71.7 inches
144 to 182 cm |
Rear tread | 56.9 to 76.6 inches
144 to 194 cm |
Photos
Shibaura SE8340 tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for Shibaura SE8340 based on its 83 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 3 to 4 Bottom (16")3 - 4 铧 (40 cm) | Heavy Duty | Suitable for medium loam and stubble turnover. |
Rotary Cutter / MowerMowing & Clearing | 7 to 8 ft (84-96 in)2.1 - 2.4 m | Heavy Duty | Heavy-duty twin spindle cutter for overgrown acreage. |
Rotary TillerSeedbed Prep | 78 to 84 in200 - 215 cm | Heavy Duty | Heavy commercial tiller with multi-speed gearbox. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机 | Heavy Duty | Silage and dry hay; 540 RPM PTO with slip-clutch. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Shibaura SE8340.
Estimated Continuous Field Runtime: 6.1 hrs
Approximately 6.1 hours of continuous field operation at ~75% rated power on a full tank (26.4 gal / 99.9 L).
Estimated 75% Load Fuel Burn~4.3 gal/hr (16.3 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Shibaura SE8340 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Shibaura SE8340.
Converted Equivalents:
Horsepower (HP)83 hp
Kilowatts (kW)61.9 kW
Metric Horsepower (PS / CV)84.2 PS
Direct Competitor Comparison
Compare Shibaura SE8340 against same-era industry alternatives in the same horsepower class.
Current Model
Shibaura
Shibaura SE8340
Engine Power:Diesel (listed): 83 hp / 61.9 kW
★ Baseline Reference
International HarvesterMarket Competitor
International Harvester 784
Engine Power:74.9
Production Years:1977 - 1984
