Simplicity 9523
The Simplicity 9523 is a tractor produced by Simplicity. It is equipped with a 77.1 ci 1.3 L engine. The rated power output is 23 hp 17.2 kW. Transmission: 12 forward and 3 reverse. Operating weight: 1825 lbs 827 kg.
Engine Power
23 hp
17.2 kW
Fuel & Capacities
7 gal
26.5 L
Transmission
12 forward and 3 reverse
Operating Weight
1825 lbs
827 kg
Simplicity 9523 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.

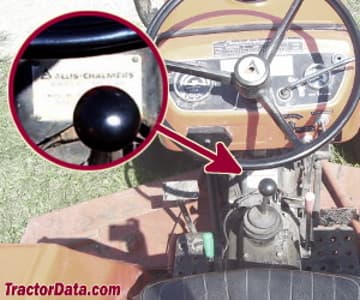

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1978 - 1983
9500 SeriesCompact Utility tractorHinomoto built |
|---|---|
1978 - 1983 | |
9500 Series | |
Compact Utility tractor | |
Hinomoto built | |
1978 - 1983 | |
|---|---|
9500 Series | |
Compact Utility tractor | |
Hinomoto built |
Production | |
|---|---|
Distributor | Simplicity |
Manufacturer | Hinomoto |
Compact Utility tractor | |
Built in Osaka, Japan | |
Variants | |
|---|---|
5020 | similar Allis Chalmers model |
E230 | similar Hinomoto model |
Simplicity 9523 Engine | |
|---|---|
Toyosha 1.3L 2-cyl diesel | |
Engine details ...  |
Simplicity 9523 Power | |
|---|---|
Engine | 23 hp
17.2 kW |
PTO (claimed) | 21 hp
15.7 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Differential lock | mechanical rear |
Manual steering | |
Drum brakes | |
Open operator station. Optional two-post ROPS and canopy. | |
Capacity | |
|---|---|
Fuel | 7 gal
26.5 L |
Hydraulic system | 5.5 gal
20.8 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 5.5 gal
20.8 L |
Total flow | 5.44 gpm
20.6 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Control | position control |
Power Take-off (PTO) | |
|---|---|
Rear PTO | continuous |
Rear PTO Type | 540 |
Engine RPM | 540@2320 |
Dimensions & Tires | |
|---|---|
Wheelbase | 59.8 inches
151 cm |
Weight | 1825 lbs
827 kg |
Front tire | 4.00x12 |
Rear tire | 9.5x24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | Hitachi LR115-58 alternator |
Charging amps | 15 |
Charging volts | 12 |
Battery volts | 12 |
Battery AH | 70 |
References | |
|---|---|
 | |
Operator's Manual 5020-5030 9523-9528 (2097132) published in 1978 | |
Operator's Manual Model 9523 (1664410) published in 1977 |
Engine
| 1978 - 1983
9500 SeriesCompact Utility tractorHinomoto built |
|---|---|
1978 - 1983 | |
9500 Series | |
Compact Utility tractor | |
Hinomoto built | |
1978 - 1983 | |
|---|---|
9500 Series | |
Compact Utility tractor | |
Hinomoto built |
Engine Detail — 77.1 ci / 1.3 L Diesel
Manufacturer | Toyosha S126 |
Fuel Type | Diesel |
Configuration | 2-cylinder, liquid-cooled |
Displacement | 77.1 ci
1.3 L |
Bore/Stroke | 3.62x3.74 inches
92 x 95 mm |
Power | 23 hp
17.2 kW |
Fuel system | Kiki NP-PE injection pump |
Air cleaner | dry element |
Compression | 23:1 |
Rated RPM | 2500 |
Idle RPM | 750-2750 |
Firing order | 1-2 |
Starter | electric |
Starter volts | 12 |
Coolant capacity | 5.3 qts
5.0 L |
Oil capacity | 5 qts
4.7 L |
Oil change | 100 h |
Transmission
| 1978 - 1983
9500 SeriesCompact Utility tractorHinomoto built |
|---|---|
1978 - 1983 | |
9500 Series | |
Compact Utility tractor | |
Hinomoto built | |
1978 - 1983 | |
|---|---|
9500 Series | |
Compact Utility tractor | |
Hinomoto built |
Transmission options | |
|---|---|
8-speed unsynchronized gear | |
12-speed unsynchronized gear |
Transmission — 8 forward and 2 reverse unsynchronized gear
Type | unsynchronized gear |
Gears | 8 forward and 2 reverse |
Clutch | 215mm dry disc |
Oil capacity | 22 qts
20.8 L |
Oil type | Type 1685092 |
Four gears (1-4) in two ranges (low/high). Tractor must be stopped, and clutch used, to shift gears or range. | |
With 11.2x24 rear tires. | |
 | |
Type 1685092 |
|---|

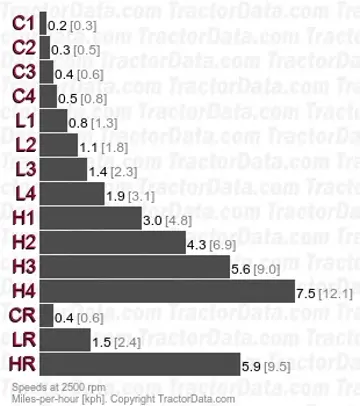

Transmission — 12 forward and 3 reverse unsynchronized gear
Type | unsynchronized gear |
Gears | 12 forward and 3 reverse |
Clutch | 215mm dry disc |
Oil capacity | 22 qts
20.8 L |
Oil type | Type 1685092 |
Four gears, plus reverse, with high, low, and creeper ranges. | |
With 11.2x24 rear tires. | |
 | |
Type 1685092 |
|---|
Dimensions
| 1978 - 1983
9500 SeriesCompact Utility tractorHinomoto built |
|---|---|
1978 - 1983 | |
9500 Series | |
Compact Utility tractor | |
Hinomoto built | |
1978 - 1983 | |
|---|---|
9500 Series | |
Compact Utility tractor | |
Hinomoto built |
Simplicity 9523 Tires | |
|---|---|
Ag front | 4.00x12 |
Ag rear | 9.5x24 |
11.2x24 | |
Lawn/turf front | 20x8.00-10 |
Lawn/turf rear | 13.6-16 |
Dimensions | |
|---|---|
Wheelbase | 59.8 inches
151 cm |
Length | 98.9 inches
251 cm |
Width | 48 inches
121 cm |
Shipping weight | 1825 lbs
827 kg |
Clearance (front axle) | 12.6 inches
32 cm |
Clearance (rear axle) | 14 inches
35 cm |
Clearance (drawbar) | 13.4 inches
34 cm |
Front tread | 37.4/44.1 inches
94/112 cm |
Rear tread | 37/41.7 inches
93/105 cm |
Simplicity 9523 Height | |
|---|---|
Steering wheel | 51.3 inches
130 cm |
Hood | 42.7 inches
108 cm |
Exhaust | 75.6 inches
192 cm |
Attachments
| 1978 - 1983
9500 SeriesCompact Utility tractorHinomoto built |
|---|---|
1978 - 1983 | |
9500 Series | |
Compact Utility tractor | |
Hinomoto built | |
1978 - 1983 | |
|---|---|
9500 Series | |
Compact Utility tractor | |
Hinomoto built |
60" Mower deck | |
|---|---|
Type | rear-mount Simplicity |
3-blade | |
Cutting width | 60 inches
152 cm |
Photos
Simplicity 9523 tractor photo
