simplicity 9528

Simplicity 9528 tractor photo
1978 - 1983 9500 SeriesCompact Utility tractorHinomoto built
1978 - 1983
9500 Series
Compact Utility tractor
Hinomoto built
1978 - 1983
9500 Series
Compact Utility tractor
Hinomoto built
1978 - 1983
9500 Series
Compact Utility tractor
Hinomoto built
Engine Detail
Toyosha S148
diesel
2-cylinder
liquid-cooled
Displacement
90.1 ci 1.5 L
Bore/Stroke
3.82x3.94 inches 97 x 100 mm
Power
28 hp 20.9 kW
Fuel system
Kiki PES-2K injection pump
Air cleaner
dry element
Compression
23:1
Rated RPM
2500
Idle RPM
750-2750
Firing order
1-2
Starter
electric
Starter volts
12
Coolant capacity
5.3 qts 5.0 L

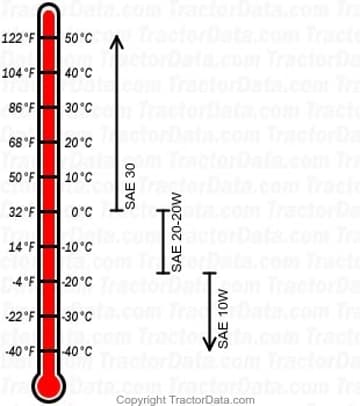

Engine Oil
9528 diesel engine oil chart
Oil capacity
5 qts 4.7 L
Oil change
100 h
