Simplicity 14LTH
The Simplicity 14LTH is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 398 cc 24.3 ci engine. The listed engine power is Gasoline (gross): 14 hp / 10.4 kW. Transmission: infinite forward and reverse. Operating weight: 115 lbs 52 kg.
Engine Power
Gasoline (gross): 14 hp / 10.4 kW
Fuel & Capacities
4 gal
15.1 L
Transmission
infinite forward and reverse
Operating Weight
115 lbs
52 kg
Overview
 | 1993
Broadmoor LT SeriesLawn tractor
Broadmoor LT Series
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | Simplicity |
Lawn tractor | |
Built in Port Washington, Wisconsin, USA | |
Original price was $3,100 in 1993 | |
Simplicity 14LTH Engine | |
|---|---|
14HP Kohler 398cc 1-cyl gasoline | |
Fuel tank | 4 gal
15.1 L |
Engine details ...  | |
Simplicity 14LTH Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Mid PTO Type | pulley |
Dimensions & Tires | |
|---|---|
Wheelbase | 48 inches
121 cm |
Weight | 440 lbs
199 kg |
Front tire | 15x6.0-6 |
Rear tire | 18x8.5-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Operator's Manual Broadmoor Series (1709979) published in 1994 | |
1993 Price List published in 1992, by Simplicity |
Engine
Engine Detail — 398 cc / 24.3 ci Gasoline
Manufacturer | Kohler |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 398 cc
24.3 ci |
Bore/Stroke | 3.43x2.64 inches
87 x 67 mm |
Power (gross) | 14 hp
10.4 kW |
Starter | electric |
Starter volts | 12 |
Oil capacity | 2 qts
1.9 L |
Transmission
Transmission — infinite forward and reverse belt-driven hydrostatic
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
Oil capacity | 3.5 qts
3.3 L |
 | |
Dimensions
Simplicity 14LTH Tires | |
|---|---|
Lawn/turf front | 15x6.0-6 |
Lawn/turf rear | 18x8.5-8 |
Dimensions | |
|---|---|
Wheelbase | 48 inches
121 cm |
Length | 67 inches
170 cm |
Width | 34.5 inches
87 cm |
Height (steering wheel) | 39 inches
99 cm |
Height (hood) | 33 inches
83 cm |
Weight | 440 lbs*Tractor only
199 kg |
Attachments
Attachment overview | |
|---|---|
38" mid-mount mower deck | |
Snowblower | |
Blade |
38" Mower deck | |
|---|---|
Type | mid-mount Simplicity 1691704 |
Cutting width | 38 inches
96 cm |
Weight | 115 lbs
52 kg |
Photos

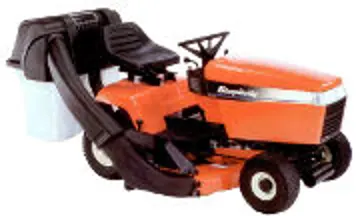

Simplicity 14LTH tractor photo
Simplicity Lawn Tractors Simplicity 14LTH Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Simplicity Lawn Tractors Simplicity 14LTH.
Converted Equivalents:
Horsepower (HP)14 hp
Kilowatts (kW)10.4 kW
Metric Horsepower (PS / CV)14.2 PS
