Simplicity 12LTG

The Simplicity 12LTG is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 465 cc 28.4 ci engine. The listed engine power is Gasoline (gross): 12 hp / 8.9 kW. Transmission: 5 forward and 1 reverse. Operating weight: 9 lbs 4 kg.

Overview

	1990 - 1991 4200 SeriesLawn tractor 4200 Series Lawn tractor

Production
Manufacturer	Simplicity
Lawn tractor
Built in Port Washington, Wisconsin, USA
Original price was $2,250 in 1991

Variants
126LTG	gear
12LTH	hydrostatic

Simplicity 12LTG Engine
12HP Briggs & Stratton 465cc 1-cyl gasoline
Fuel tank	2.2 gal 8.3 L
Engine details ...

Simplicity 12LTG Transmission
5-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Mid PTO	indepenent
Clutch	manual

Dimensions & Tires
Wheelbase	45.5 inches 115 cm
Weight	411 lbs 186 kg
Front tire	15x6.0-6
Rear tire	18x8.5-8
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Outdoor Power Equipment published in 1990, by Simplicity
1991 Pocket Price List published in 1990, by Simplicity

Engine

Engine Detail — 465 cc / 28.4 ci Gasoline

Manufacturer	Briggs & Stratton
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	465 cc 28.4 ci
Bore/Stroke	3.44x3.06 inches 87 x 78 mm
Power (gross)	12 hp 8.9 kW
Rated RPM	3600
Starter	electric
Starter volts	12
Oil capacity	1.5 qts 1.4 L

Transmission

Transmission — 5 forward and 1 reverse belt-driven gear

Type	belt-driven gear
Gears	5 forward and 1 reverse

Dimensions

Simplicity 12LTG Tires
Lawn/turf front	15x6.0-6
Lawn/turf rear	18x8.5-8

Dimensions
Wheelbase	45.5 inches 115 cm
Length	63 inches 160 cm
Width	34.25 inches 86 cm
Height (steering wheel)	39.7 inches 100 cm
Weight	411 lbs 186 kg
Clearance (front axle)	9 inches 22 cm
Clearance (rear axle)	6 inches 15 cm

Attachments

Attachment overview
36" mid-mount mower deck
Snowblower
Blade

36" Mower deck
Type	mid-mount Simplicity 1691419
	2-blade with manual lift
Cutting width	36 inches 91 cm
Weight	9 lbs 4 kg
Cut height	1.5 to 3.5 inch 3 to 8 cm

Photos

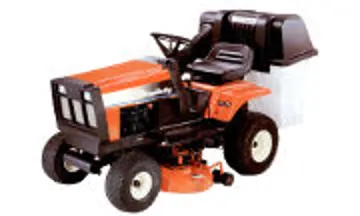

Simplicity 12LTG tractor photo
