Simplicity Sovereign 3314V 990654

The Simplicity Sovereign 3314V 990654 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 531 cc 32.4 ci engine. The listed engine power is Gasoline (listed): 14 hp / 10.4 kW. Transmission: 3 forward and 1 reverse. Operating weight: 833 lbs 377 kg.

Overview

	1971 Sovereign SeriesGarden tractor Sovereign Series Garden tractor

Production
Manufacturer	Simplicity
Garden tractor

Variants
3314V	gear
3314H	hydrostatic

Simplicity 3314V Engine
14HP Briggs & Stratton 531cc 1-cyl gasoline
Engine details ...

Simplicity 3314V Transmission
3-speed CVT gear
Transmission details ...

Mechanical
Manual steering
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	mechanial idler pulley

Dimensions & Tires
Wheelbase	48 inches 121 cm
Weight	833 lbs 377 kg
Front tire	16x6.50-8
Rear tire	23x10.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
We offer Simplicity published in 1971

Engine

Engine Detail — 531 cc / 32.4 ci Gasoline

Manufacturer	Briggs & Stratton 320421
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled horizontal-shaft
Displacement	531 cc 32.4 ci
Bore/Stroke	3.5625x3.25 inches 90 x 83 mm
Power	14 hp 10.4 kW
Starter	electric
Starter volts	12

Transmission

Transmission — 3 forward and 1 reverse CVT gear

Type	CVT gear
Gears	3 forward and 1 reverse

Dimensions

Simplicity 3314V Tires
Lawn/turf front	16x6.50-8
Lawn/turf rear	23x10.50-12

Dimensions
Wheelbase	48 inches 121 cm
Length	67 inches 170 cm
Width	36 inches 91 cm
Height	39.25 inches 99 cm
Weight	833 lbs 377 kg

Attachments

Attachment overview
42" mid-mount mower deck
48" mid-mount mower deck
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

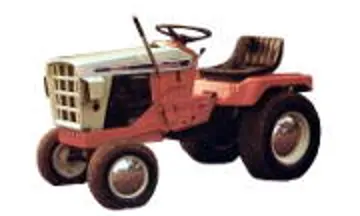

Simplicity Sovereign 3314V 990654 tractor photo
