Simplicity 400 990234

The Simplicity 400 990234 is a tractor produced by Simplicity Lawn Tractors. The listed engine power is Gasoline (listed): 4 hp / 3.0 kW. Transmission: 2 forward and reverse. Operating weight: 60 lbs 27 kg.

Overview

	1961 - 1964 Wonder Boy SeriesRiding lawn mower Wonder Boy Series Riding lawn mower

Production
Manufacturer	Simplicity
Riding lawn mower
Built in Port Washington, Wisconsin, USA
Original price was $325 in 1963

Simplicity 400 Engine
4HP Briggs & Stratton 1-cyl gasoline
Engine details ...

Simplicity 400 Transmission
2-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Dimensions & Tires
Front tire	10x2.50
Rear tire	4.00x8
Full dimensions and tires ...

References
Bring the wonderful world of Simplicity into your life in 1963
Do it with Simplicity published in 1964

Engine

Engine Detail — Gasoline

Manufacturer	Briggs & Stratton
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled
Power	4 hp 3.0 kW
Starter type	manual recoil

Transmission

Transmission — 2 forward and reverse belt-driven gear

Type	belt-driven gear
Gears	2 forward and reverse

Dimensions

Simplicity 400 Tires
Lawn/turf front	10x2.50
Lawn/turf rear	4.00x8

Dimensions

Attachments

24" Mower deck
Type	mid-mount Simplicity
	1-blade with manual lift
Cutting width	24 inches 60 cm
Weight	60 lbs 27 kg
Cut height	1.5 to 2.625 inch 3 to 6 cm

Photos

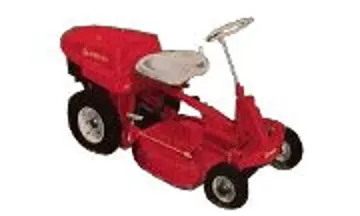

Simplicity 400 990234 tractor photo
