Simplicity 401 990357

The Simplicity 401 990357 is a tractor produced by Simplicity Lawn Tractors. The listed engine power is Gasoline (listed): 4 hp / 3.0 kW. Transmission: 2 forward and reverse.

Engine Power
Gasoline (listed): 4 hp / 3.0 kW
Fuel & Capacities
Gasoline
Transmission
2 forward and reverse

Overview

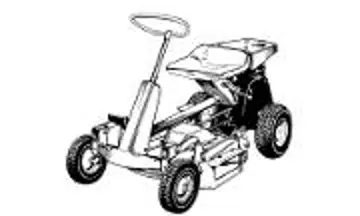

Simplicity 401 990357 tractor photo
1965 - 1966 Wonder Boy SeriesRiding lawn mower Wonder Boy Series Riding lawn mower
Production
Manufacturer
Simplicity (a part of Allis Chalmers)
Riding lawn mower
Built in Port Washington, Wisconsin, USA
Original price was $340 in 1966
Simplicity 401 Engine
4HP Briggs & Stratton 1-cyl gasoline
Engine details ...
Simplicity 401 Transmission
2-speed gear
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Open operator station.
Dimensions & Tires
Full dimensions and tires ...

Engine

Engine Detail — Gasoline

Manufacturer
Briggs & Stratton
Fuel Type
Gasoline
Configuration
1-cylinder, air-cooled
Power
4 hp 3.0 kW
Starter type
manual recoil

Transmission

Transmission — 2 forward and reverse belt-driven gear

Type
belt-driven gear
Gears
2 forward and reverse

Dimensions

Simplicity 401 Tires
Dimensions

Attachments

24" Mower deck
Type
mid-mount Simplicity
1-blade
Cutting width
24 inches 60 cm

Photos

Simplicity 401 990357 tractor photo

Simplicity 401 990357 tractor photo

Simplicity Lawn Tractors Simplicity 401 990357 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Simplicity Lawn Tractors Simplicity 401 990357.

Converted Equivalents:

Horsepower (HP)4 hp
Kilowatts (kW)3 kW
Metric Horsepower (PS / CV)4.1 PS
