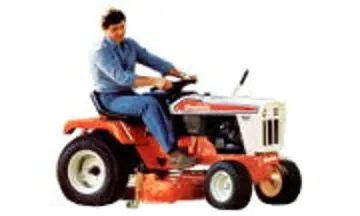

Simplicity 7014

The Simplicity 7014 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 531 cc 32.4 ci engine. The listed engine power is Gasoline (gross): 14 hp / 10.4 kW. Transmission: 4 forward and reverse.

Overview

	1978 - 1979 7000 SeriesGarden tractor 7000 Series Garden tractor

Production
Manufacturer	Simplicity
Garden tractor

Simplicity 7014 Engine
14HP Briggs & Stratton 531cc 1-cyl gasoline
Engine details ...

Simplicity 7014 Transmission
4-speed
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Dimensions & Tires
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Lawn & Garden Equipment published in 1978, by Simplicity

Engine

Engine Detail — 531 cc / 32.4 ci Gasoline

Manufacturer	Briggs & Stratton 326437
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled horizontal-shaft
Displacement	531 cc 32.4 ci
Bore/Stroke	3.5625x3.25 inches 90 x 83 mm
Power (gross)	14 hp 10.4 kW
Starter	electric
Starter volts	12

Transmission

Transmission — 4 forward and reverse

Gears

4 forward and reverse

Dimensions

Simplicity 7014 Tires

Dimensions

Attachments

Attachment overview
42" mid-mount mower deck
48" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

Simplicity 7014 Shuttle tractor cutaway diagram.
